Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

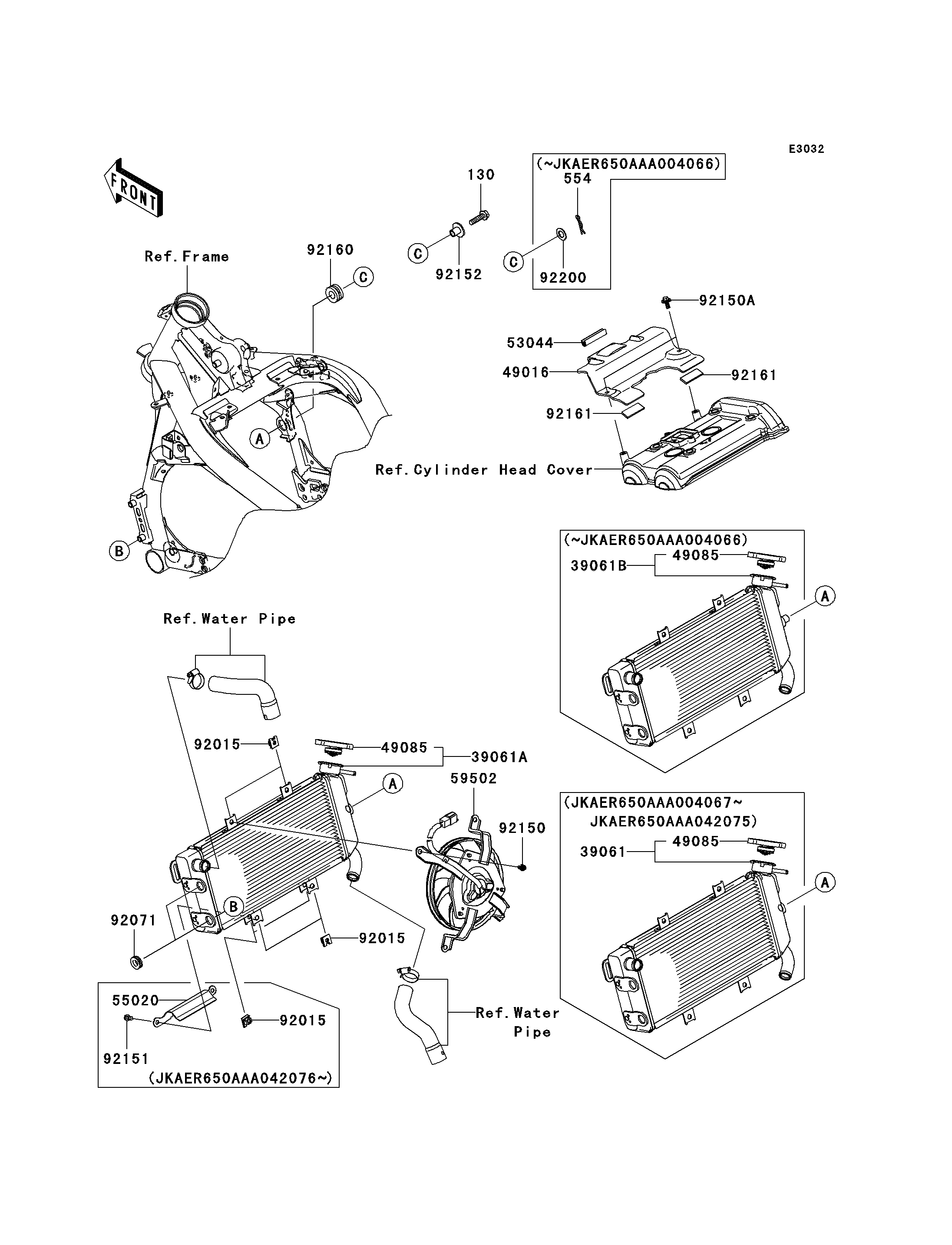

Parts Diagrams |
130
554
39061
39061B
49016
49085
49085
49085
53044
59502
92015
92015
92015
92071
92150
92150A
92152
92160
92161
92161
92200
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,8X30 | 130 | 130BA0830 | 1 | (JKAER650AAA004067 - ) | |
| PIN-SNAP,12MM | 554 | 554A1200 | 1 | ( - JKAER650AAA004066) | |
| RADIATOR-ASSY | 39061 | 39061-0066 | 1 | (JKAER650AAA004067 - JKAER650AAA042075) | |
| RADIATOR-ASSY | 39061B | 39061-5001 | 1 | ( - JKAER650AAA004066) | |
| COVER-SEAL,HOT WIND | 49016 | 49016-0030 | 1 | ||
| CAP-ASSY-PRESSURE | 49085 | 49085-1078 | 1 | ||
| TRIM,L=50 | 53044 | 53044-1185 | 1 | ||
| FAN-ASSY | 59502 | 59502-0019 | 1 | ||
| NUT | 92015 | 92015-1487 | 4 | ||
| GROMMET | 92071 | 92071-1115 | 2 | ||
| BOLT,6X12 | 92150 | 92150-1186 | 4 | ||
| BOLT,FLANGED,6X14 | 92150A | 92150-1689 | 2 | ||
| COLLAR | 92152 | 92152-0398 | 1 | (JKAER650AAA004067 - ) | |
| DAMPER | 92160 | 92160-1007 | 1 | ||
| DAMPER | 92161 | 92161-0301 | 2 | ||
| WASHER,12.5X22X1.2 | 92200 | 92200-1174 | 1 | ( - JKAER650AAA004066) |
| BOLT-FLANGED,8X30 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (JKAER650AAA004067 - ) |
| PIN-SNAP,12MM | |
| REF # | 554 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | ( - JKAER650AAA004066) |
| RADIATOR-ASSY | |
| REF # | 39061 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (JKAER650AAA004067 - JKAER650AAA042075) |
| RADIATOR-ASSY | |
| REF # | 39061B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | ( - JKAER650AAA004066) |
| COVER-SEAL,HOT WIND | |
| REF # | 49016 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP-ASSY-PRESSURE | |
| REF # | 49085 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TRIM,L=50 | |
| REF # | 53044 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FAN-ASSY | |
| REF # | 59502 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| GROMMET | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X12 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X14 | |
| REF # | 92150A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (JKAER650AAA004067 - ) |
| DAMPER | |
| REF # | 92160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,12.5X22X1.2 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | ( - JKAER650AAA004066) |
