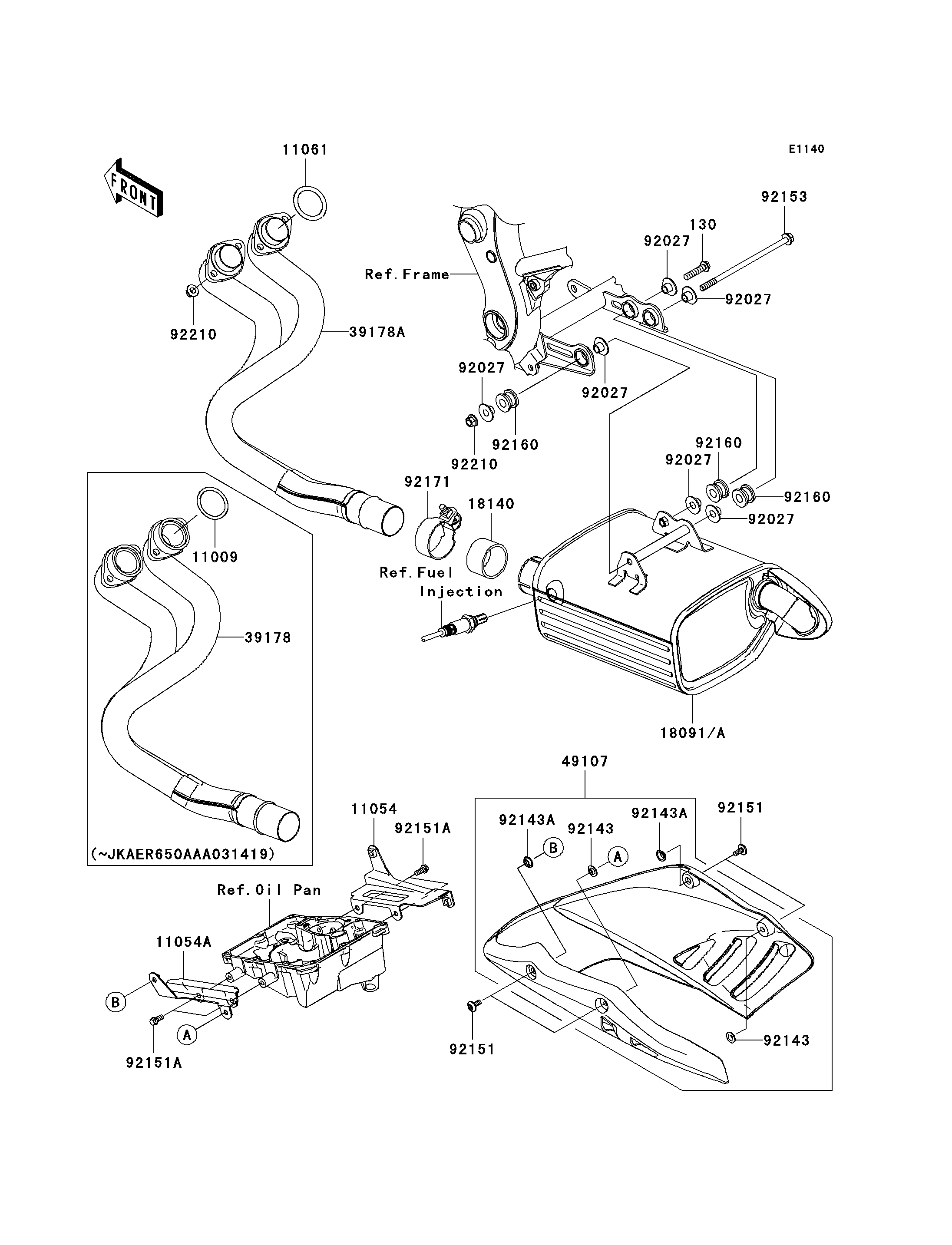

2006 ER-6n (European) - Muffler(s)

DOWNLOAD PDF
SELECT A NEW PART
130
11009
11054
11054A
18091
18140
39178
49107
92027
92027
92027
92027
92027
92027
92143
92143
92143A
92143A
92151
92151
92151A
92151A
92153
92160
92160
92160
92171
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X35 130 130CD0835 1
GASKET,EXHAUST PIPE HOLDER 11009 11009-1856 2 ( - JKAER650AAA031419)
BRACKET,RH 11054 11054-0234 1
BRACKET,LH 11054A 11054-0235 1
BODY-COMP-MUFFLER 18091 18091-0284 1
GASKET-MUFFLER 18140 18140-0002 1
MANIFOLD-COMP-EXHAUST 39178 39178-0058 1 ( - JKAER650AAA031419)
COVER-EXHAUST PIPE,S.F.C.GRAY 49107 49107-0074-837 1
COLLAR,FLANGED,8.8X10.6 92027 92027-1653 6
COLLAR 92143 92143-1087 2
COLLAR 92143A 92143-1196 2
BOLT,SOCKET,6X14 92151 92151-1654 4
BOLT,FLANGED,6X14 92151A 92151-1755 4
BOLT,FLANGED,8X165 92153 92153-1357 1
DAMPER,MUFFLER MOUNT 92160 92160-1116 3
CLAMP 92171 92171-1568 1
NUT,8MM 92210 92210-1114 5
