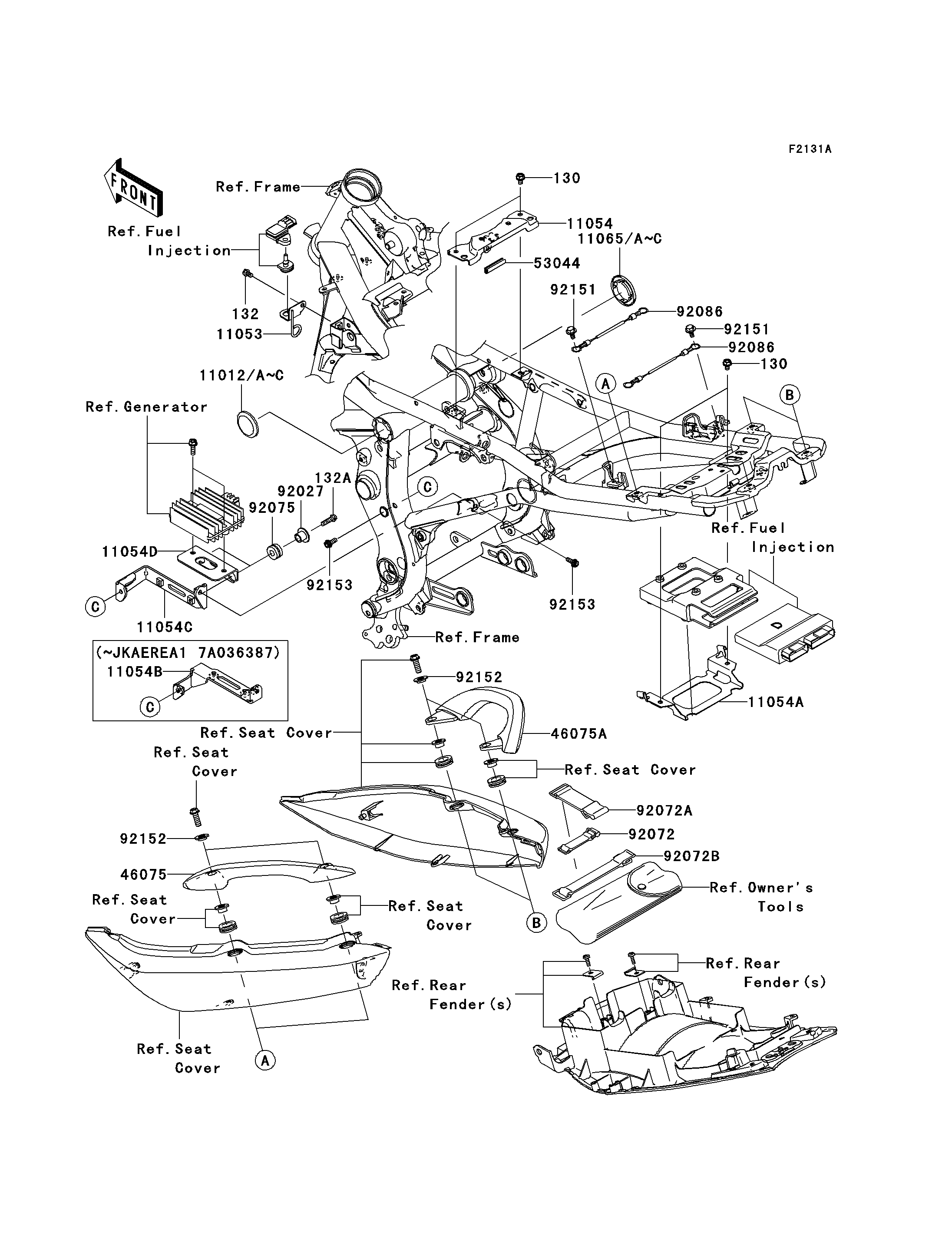

2008 ER-6n (Australian) - Frame Fittings(JKAEREA1 7A035083-)

DOWNLOAD PDF
SELECT A NEW PART
130
130
132
132A
11012B
11012C
11053
11054
11054A
11054C
11054D
11065B
11065C
46075
46075A
53044
92027
92072
92072A
92072B
92075
92086
92086
92151
92151
92152
92152
92153
92153
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X10 130 130BB0610 4
BOLT-FLANGED-SMALL,6X10 132 132BB0610 1
BOLT-FLANGED-SMALL,6X22 132A 132BB0622 2 (JKAEREA1 7A036388 - )
CAP,CROSS PIPE,BLACK 11012B 11012-1717-18T 1
CAP,CROSS PIPE,P.SILVER 11012C 11012-1717-458 1
BRACKET,BOOST SENSOR 11053 11053-1931 1
BRACKET,FUEL TANK 11054 11054-0248 1
BRACKET,ECU 11054A 11054-0347 1
BRACKET,REGULATOR 11054C 11054-1283 1 (JKAEREA1 7A036388 - )
BRACKET,REGULATOR 11054D 11054-1284 1 (JKAEREA1 7A036388 - )
CAP,FRAME,BLACK 11065B 11065-0125-18T 1
CAP,FRAME,P.SILVER 11065C 11065-0125-458 1
GRIP,LH 46075 46075-0057 1
GRIP,RH 46075A 46075-0058 1
TRIM,L=40 53044 53044-1174 1
COLLAR,L=13.1,BLACK 92027 92027-1450 2 (JKAEREA1 7A036388 - )
BAND 92072 92072-1085 1
BAND,TOOL 92072A 92072-1176 1
BAND,L=150 92072B 92072-1203 1
DAMPER 92075 92075-209 2 (JKAEREA1 7A036388 - )
WIRE,L=150 92086 92086-1075 2
BOLT,FLANGED,6X13 92151 92151-1703 2
COLLAR 92152 92152-0551 4
BOLT,SOCKET,6X16 92153 92153-1517 2
