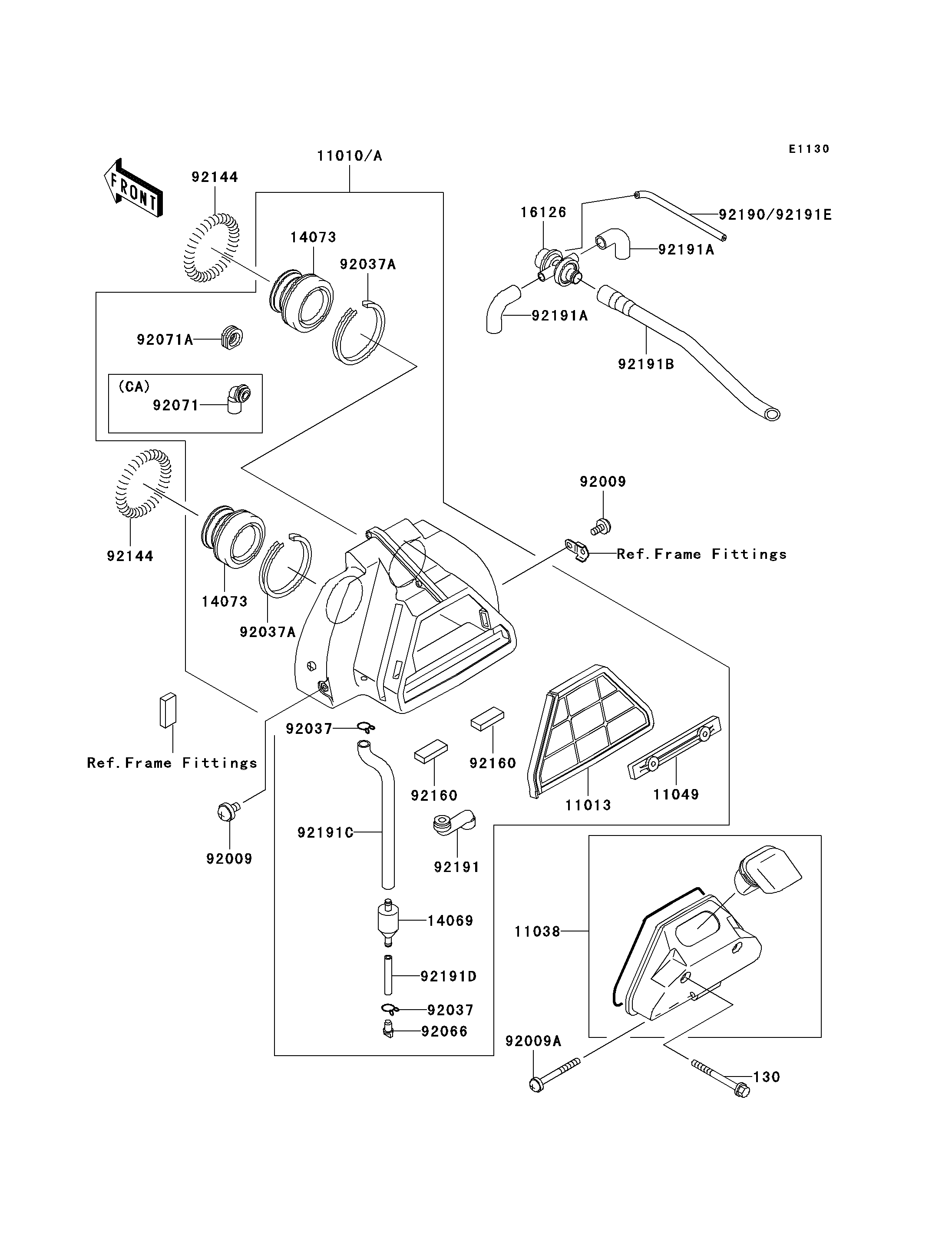

2003 Vulcan 500 LTD - Air Cleaner

DOWNLOAD PDF
SELECT A NEW PART
130
11013
11038
11049
14069
14073
14073
16126
92009
92009
92009A
92037
92037
92037A
92037A
92066
92071A
92144
92144
92160
92160
92191
92191A
92191A
92191B
92191C
92191D
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130H0660 2
ELEMENT-AIR FILTER 11013 11013-1250 1
CASE-ASSY-AIR FILTER 11038 11038-1107 1
BRACKET 11049 11049-1456 1
BREATHER 14069 14069-1051 1
DUCT,AIR FILTER 14073 14073-1651 2
VALVE,AIR SWITCH 16126 16126-1318 1
SCREW,6X10 92009 92009-1402 2
SCREW,6X55 92009A 92009-1754 1
CLAMP,TUBE 92037 92037-147 2
CLAMP,69MM 92037A 92037-1631 2
PLUG,DRAIN 92066 92066-1211 1
GROMMET 92071A 92071-1165 1
SPRING,AIR FILTER DUCT 92144 92144-1771 2
DAMPER 92160 92160-1689 2
TUBE,BREATHER 92191 92191-1044 1
TUBE 92191A 92191-1045 2
TUBE 92191B 92191-1046 1
TUBE,AIR FILTER 92191C 92191-1074 1
TUBE,6X4X60 92191D 92191-1075 1
FILTER-ASSY-AIR 11010 11010-1577 1 CA
FILTER-ASSY-AIR 11010A 11010-1744 1 CNUS
GROMMET,AIR FILTER 92071 92071-1114 1 CA
TUBE,4X9X276 92190 92190-1444 1 CNUS
TUBE,4X10X266 92191E 92191-1077 1 CA
