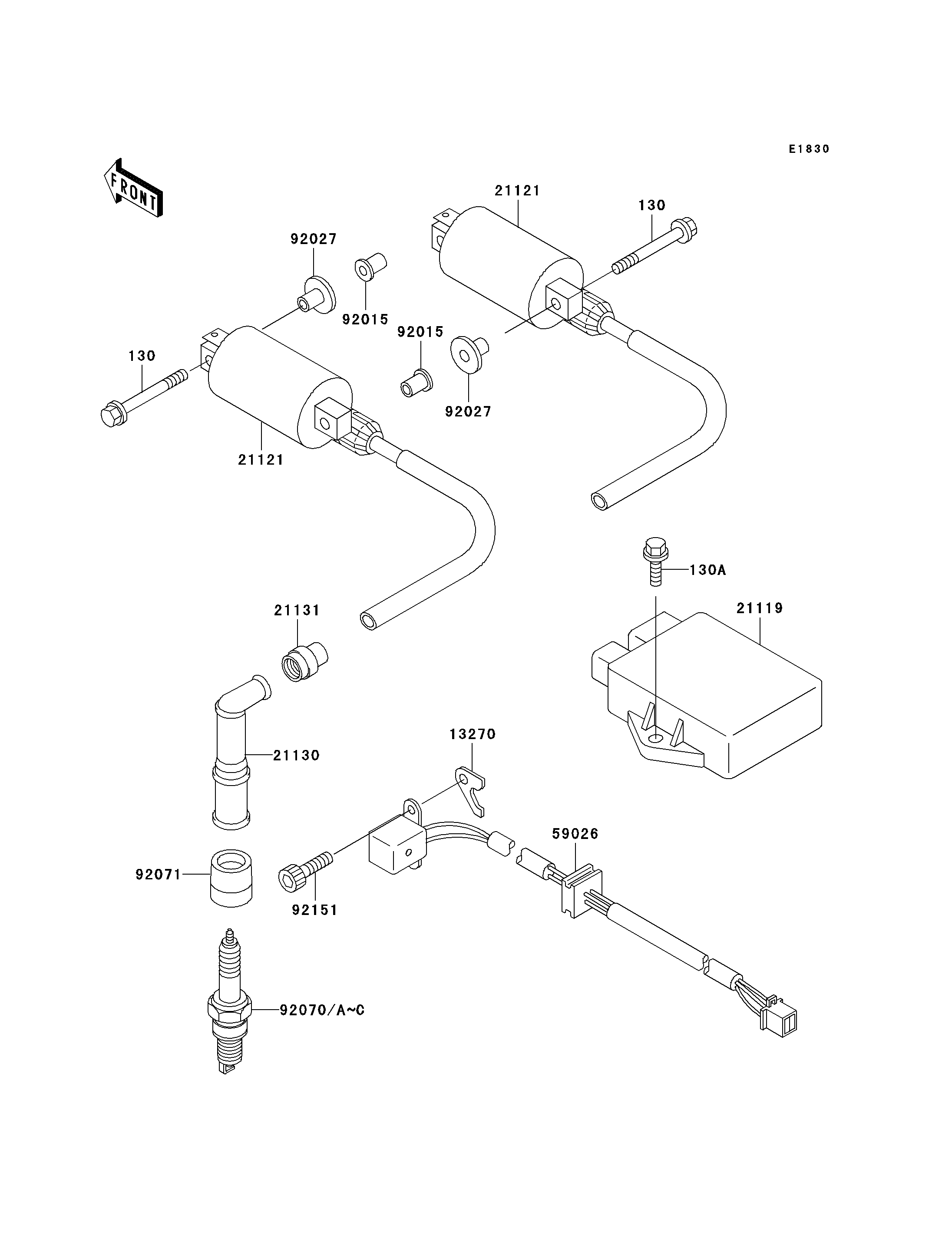

2005 Vulcan 500 LTD - Ignition System

DOWNLOAD PDF
SELECT A NEW PART
130
130
130A
13270
21119
21121
21121
21130
21131
59026
92015
92015
92027
92027
92070
92070A
92070B
92070C
92071
92151
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X45 130 130G0645 4
BOLT-FLANGED,6X16 130A 130H0616 2
PLATE 13270 13270-1721 1
IGNITER 21119 21119-1466 1
COIL-IGNITION 21121 21121-1153 2
CAP-SPARK PLUG 21130 21130-1068 2
GROMMET,HIGH TENSION 21131 21131-005 2
COIL-PULSING 59026 59026-1141 1
NUT 92015 92015-1700 4
COLLAR,L=21 92027 92027-195 4
PLUG-SPARK,X24ESR-U(ND) 92070 2 (OPTION)
PLUG-SPARK,X27ESR-U(ND) 92070A 2 (LOCAL PROCUREMENT ITEM)
PLUG-SPARK,DR9EA(NGK) 92070B 92070-1189 2
PLUG-SPARK,DR8EA(NGK) 92070C 92070-1199 2 (OPTION)
GROMMET,PLUG CAP 92071 92071-1146 2
BOLT,SOCKET,5X12 92151 92151-1118 2
