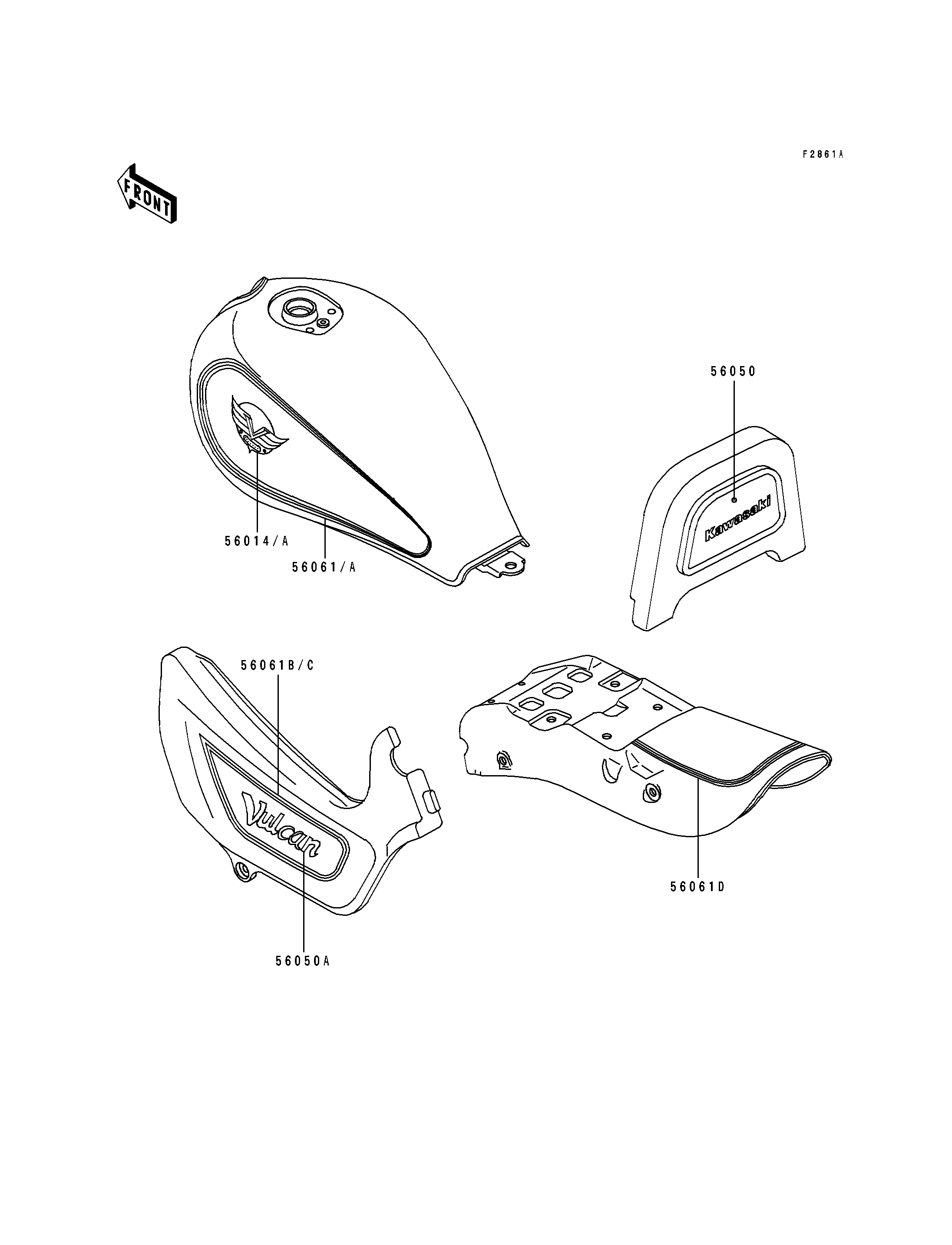

1995 Vulcan 500 - Decals(Ebony/Silver)(EN500-A6)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| EMBLEM,FUEL TANK,LH | 56014 | 56014-1250 | 1 | ||
| EMBLEM,FUEL TANK,RH | 56014A | 56014-1258 | 1 | ||
| MARK,BACK REST | 56050 | 56050-1493 | 1 | ||
| MARK,SIDE COVER,VULCAN | 56050A | 56050-1496 | 2 | ||
| PATTERN,FUEL TANK,LH | 56061 | 56061-1106 | 1 | ||
| PATTERN,FUEL TANK,RH | 56061A | 56061-1107 | 1 | ||
| PATTERN,SIDE COVER,LH | 56061B | 56061-1108 | 1 | ||
| PATTERN,SIDE COVER,RH | 56061C | 56061-1109 | 1 | ||
| PATTERN,RR FENDER | 56061D | 56061-1110 | 1 |
| EMBLEM,FUEL TANK,LH | |
| REF # | 56014 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| EMBLEM,FUEL TANK,RH | |
| REF # | 56014A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,BACK REST | |
| REF # | 56050 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,SIDE COVER,VULCAN | |
| REF # | 56050A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,LH | |
| REF # | 56061 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,RH | |
| REF # | 56061A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COVER,LH | |
| REF # | 56061B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COVER,RH | |
| REF # | 56061C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,RR FENDER | |
| REF # | 56061D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
