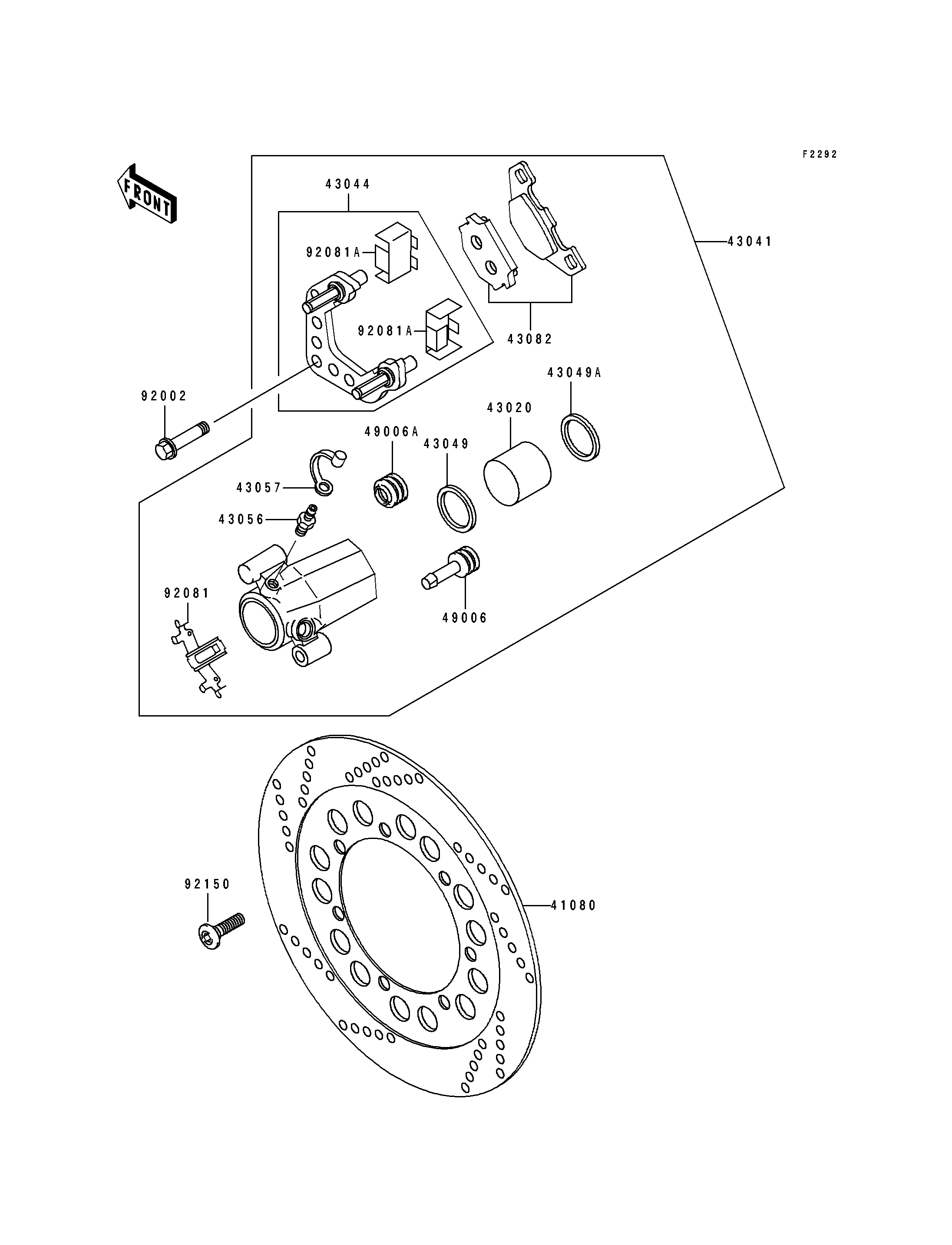

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
DISC,FR,SILVER NO.1 41080 41080-1268-CM 1
PISTON-COMP-BRAKE 43020 43020-1066 1
CALIPER-ASSY,FR,LH,SILVER NO.1 43041 43041-1332-GN 1
HOLDER-COMP-CALIPER 43044 43044-1093 1
RING,PISTON SEAL 43049 43049-002 1
PACKING,PISTON 43049A 43049-1028 1
BREATHER-BRAKE 43056 43056-1054 1
CAP-BREATHER 43057 43057-003 1
PAD-ASSY-BRAKE 43082 43082-1062 1
BOOT,CALIPER 49006 49006-1094 1
BOOT,CALIPER 49006A 49006-1095 1
BOLT,FLANGED,10X47 92002 92002-1469 2
SPRING,PAD 92081 92081-1525 1
SPRING,PAD STOPPER 92081A 92081-1661 2
BOLT,DISC PLATE,8X30 92150 92150-1728 7
