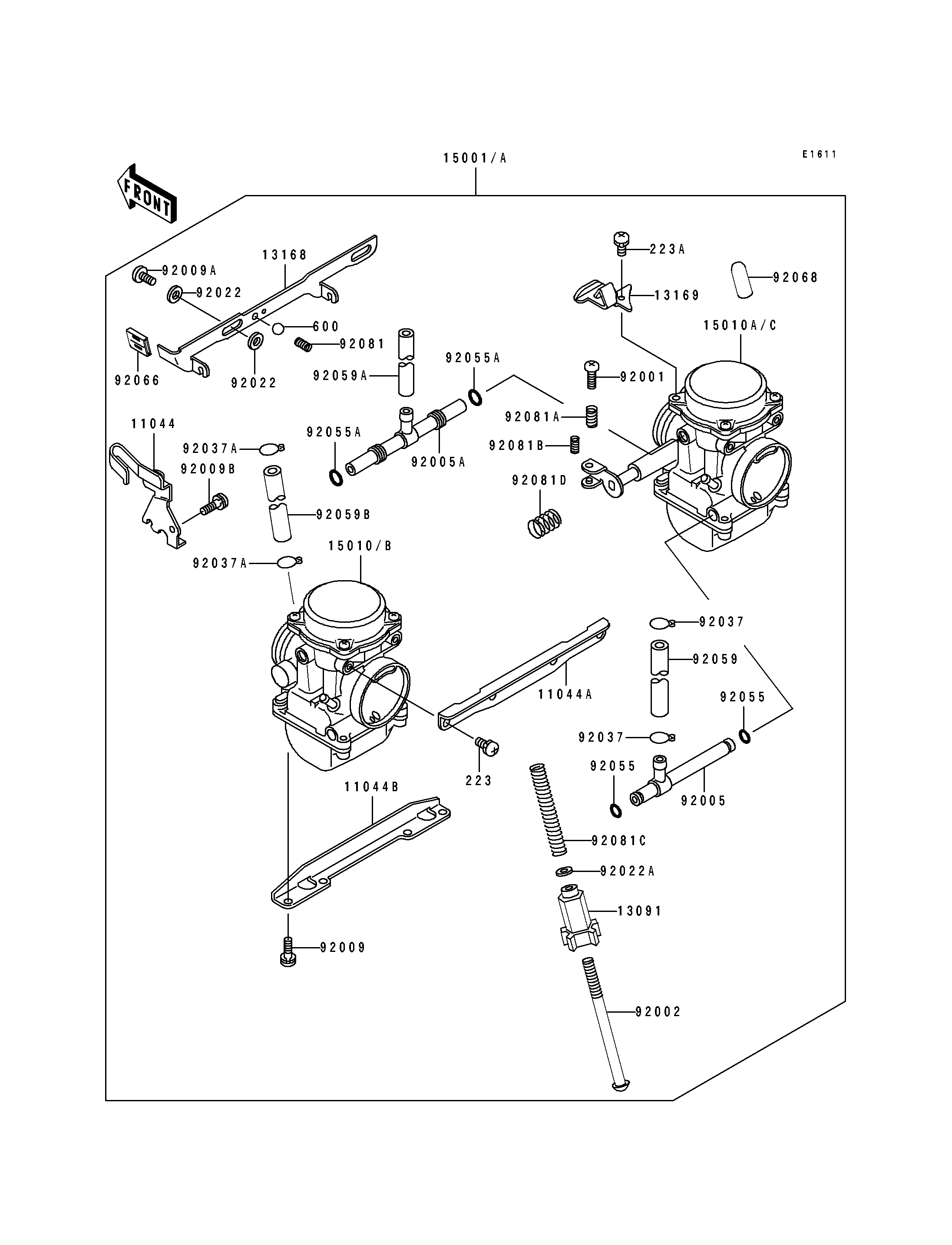

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BRACKET,THROTTLE CABLE | 11044 | 11044-1312 | 1 | ||
BRACKET,CARBURETOR STAY,UPP | 11044A | 11044-1313 | 1 | ||
BRACKET,CARBURETOR STAY,6MM | 11044B | 11044-1314 | 1 | ||
HOLDER,THROTTLE STOP SCREW | 13091 | 13091-1382 | 1 | ||
LEVER,STARTER | 13168 | 13168-1444 | 1 | ||
PLATE | 13169 | 13169-1955 | 1 | CAUS | |
CARBURETOR-ASSY | 15001 | 15001-1568 | 1 | CAUS | |
CARBURETOR-ASSY | 15001A | 15001-1573 | 1 | CN | |
CARBURETOR,LH | 15010 | 15010-1053 | 1 | CN | |
CARBURETOR,RH | 15010A | 15010-1054 | 1 | CN | |
CARBURETOR,LH | 15010B | 15010-1055 | 1 | CAUS | |
CARBURETOR,RH | 15010C | 15010-1056 | 1 | CAUS | |
BOLT,THROTTLE ADJUST | 92001 | 92001-1998 | 1 | ||
BOLT,THROTTLE STOP SCREW | 92002 | 92002-1552 | 1 | ||
FITTING | 92005 | 92005-1133 | 1 | ||
FITTING | 92005A | 92005-1134 | 1 | ||
SCREW,6X16 | 92009 | 92009-1129 | 4 | ||
SCREW | 92009A | 92009-1262 | 2 | ||
SCREW,5X10 | 92009B | 92009-1365 | 1 | ||
WASHER,6.1X11X0.8,POLYACETAL | 92022 | 92022-1199 | 4 | ||
WASHER,PLAIN,STOP SPRING | 92022A | 92022-1480 | 1 | ||
CLAMP,FUEL TUBE | 92037 | 92037-1075 | 2 | ||
CLAMP,TUBE | 92037A | 92037-1477 | 2 | ||
RING-O | 92055 | 92055-1004 | 2 | ||
RING-O,FUEL FITTING | 92055A | 92055-1223 | 2 | ||
TUBE,7.3X12.5X180 | 92059 | 92059-1597 | 1 | ||
TUBE,6.5X9.5X260 | 92059A | 92059-1598 | 1 | ||
TUBE,5X9X75 | 92059B | 92059-1599 | 1 | ||
PLUG,STARTER LEVER | 92066 | 92066-1157 | 1 | ||
PLUG,12X25 | 92068 | 92068-006 | 1 | CN | |
SPRING,SHAFT STOP | 92081 | 92081-1619 | 1 | ||
SPRING,THROTTLE ADJUST UPP | 92081A | 92081-1620 | 1 | ||
SPRING,THROTTLE ADJUST LWR | 92081B | 92081-1621 | 1 | ||
SPRING,THROTTLE STOP SCREW | 92081C | 92081-1875 | 1 | ||
SPRING | 92081D | 92081-1876 | 1 | ||
SCREW-PAN-WS-CROS | 223 | 223C0510 | 4 | ||
SCREW-PAN-WS-CROS | 223A | 223D0410 | 1 | CAUS | |
BALL-STEEL,3/16" | 600 | 600A0600 | 1 |
