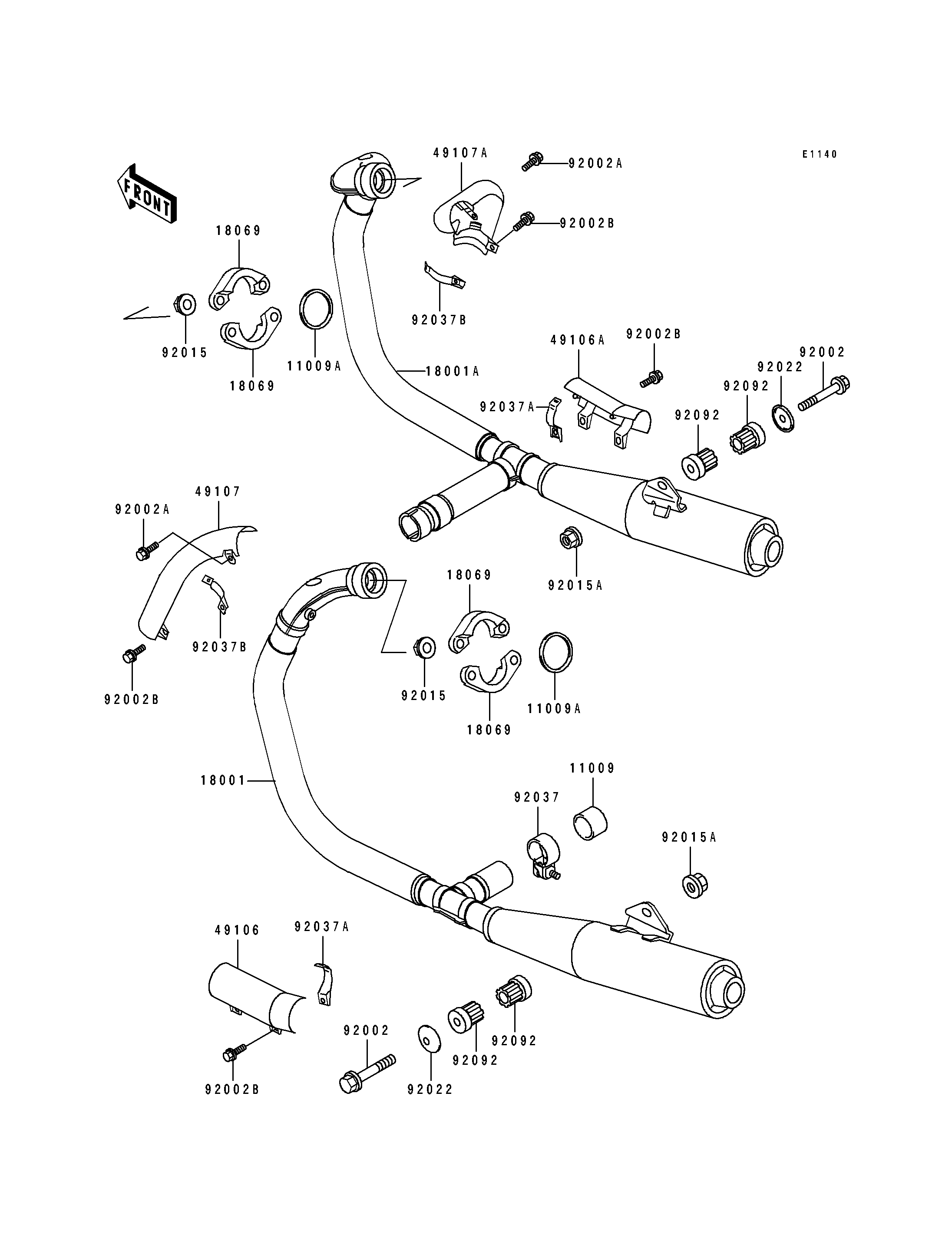

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,EXHAUST PIPE CONNECTING | 11009 | 11009-1667 | 1 | ||
| GASKET,EXHAUST PIPE HOLDER | 11009A | 11009-1840 | 2 | ||
| MUFFLER,LH | 18001 | 18001-1743 | 1 | ||
| MUFFLER,RH | 18001A | 18001-1744 | 1 | ||
| HOLDER-EXHAUST PIPE | 18069 | 18069-1064 | 4 | ||
| COVER-MUFFLER,LH | 49106 | 49106-1115 | 1 | ||
| COVER-MUFFLER,RH | 49106A | 49106-1180 | 1 | ||
| COVER-EXHAUST PIPE,LH | 49107 | 49107-1062 | 1 | ||
| COVER-EXHAUST PIPE,RH | 49107A | 49107-1063 | 1 | ||
| BOLT,10X55 | 92002 | 92002-1127 | 2 | ||
| BOLT,6X8 | 92002A | 92002-1604 | 2 | ||
| BOLT,6X20 | 92002B | 92002-1607 | 6 | ||
| NUT,CAP,8MM | 92015 | 92015-1371 | 4 | ||
| NUT,FLANGED,10MM | 92015A | 92015-1387 | 2 | ||
| WASHER | 92022 | 92022-289 | 2 | ||
| CLAMP,42MM | 92037 | 92037-1349 | 1 | ||
| CLAMP,EXHAUST PIPE COVER | 92037A | 92037-1671 | 4 | ||
| CLAMP,EXHAUST PIPE COVER | 92037B | 92037-1699 | 2 | ||
| BUSHING-RUBBER,MUFFLER | 92092 | 92092-1013 | 4 |
| GASKET,EXHAUST PIPE CONNECTING | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,EXHAUST PIPE HOLDER | |
| REF # | 11009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MUFFLER,LH | |
| REF # | 18001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MUFFLER,RH | |
| REF # | 18001A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER-EXHAUST PIPE | |
| REF # | 18069 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| COVER-MUFFLER,LH | |
| REF # | 49106 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-MUFFLER,RH | |
| REF # | 49106A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-EXHAUST PIPE,LH | |
| REF # | 49107 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-EXHAUST PIPE,RH | |
| REF # | 49107A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,10X55 | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X8 | |
| REF # | 92002A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X20 | |
| REF # | 92002B |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| NUT,CAP,8MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,10MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP,42MM | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,EXHAUST PIPE COVER | |
| REF # | 92037A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| CLAMP,EXHAUST PIPE COVER | |
| REF # | 92037B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BUSHING-RUBBER,MUFFLER | |
| REF # | 92092 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
