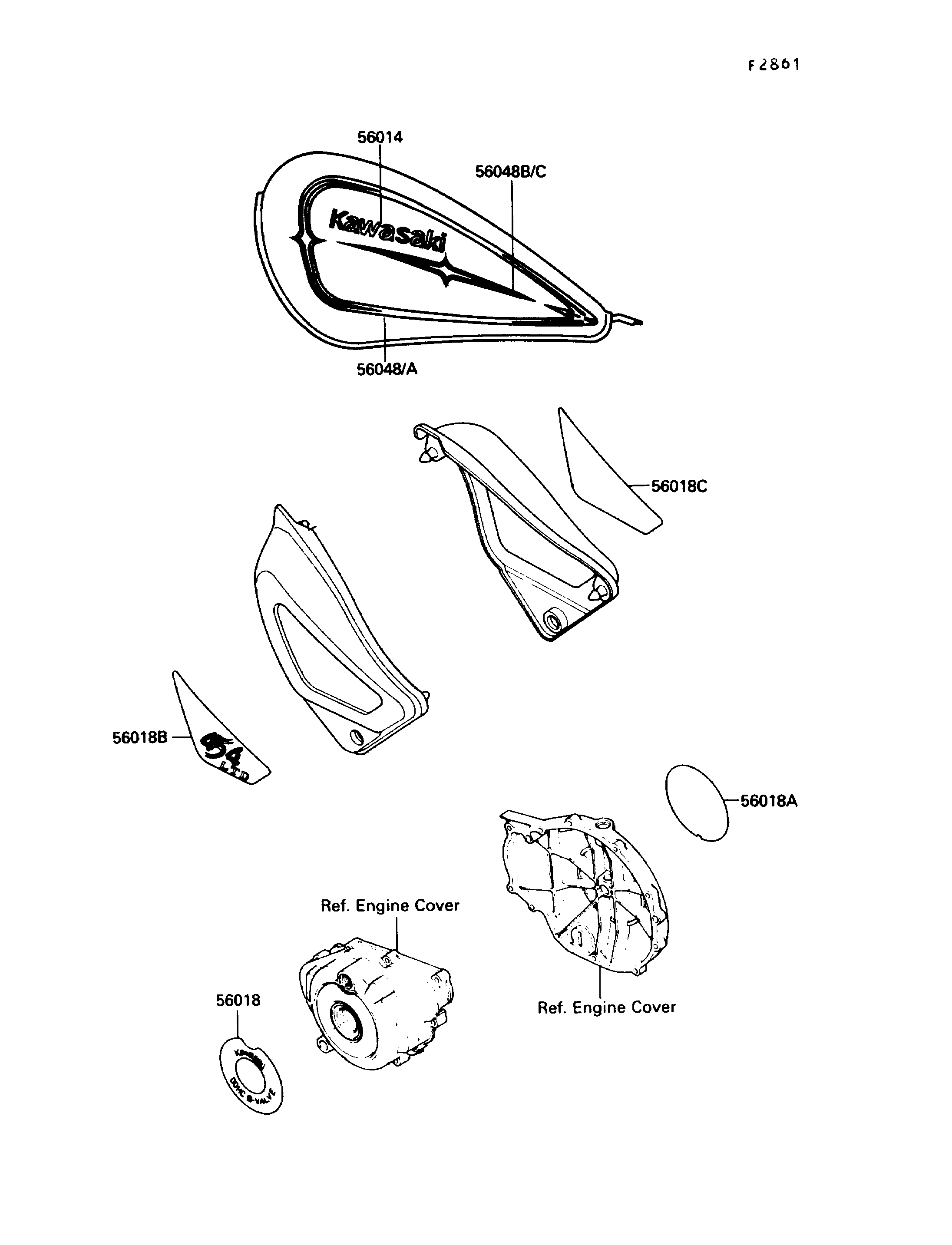

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| EMBLEM,FUEL TANK,KAWASAKI | 56014 | 56014-1239 | 2 | ||
| MARK,GENERATOR COVER | 56018 | 56018-1649 | 1 | ||
| MARK,CLUTCH COVER | 56018A | 56018-1650 | 1 | ||
| MARK,SIDE COVER,LH | 56018B | 56018-1900 | 1 | ||
| MARK,SIDE COVER,RH | 56018C | 56018-1901 | 1 | ||
| PATTERN,FUEL TANK,LH | 56048 | 56048-1941 | 1 | ||
| PATTERN,FUEL TANK,RH | 56048A | 56048-1942 | 1 | ||
| PATTERN,FUEL TANK,LH,CNT | 56048B | 56048-1943 | 1 | ||
| PATTERN,FUEL TANK,RH,CNT | 56048C | 56048-1944 | 1 |
