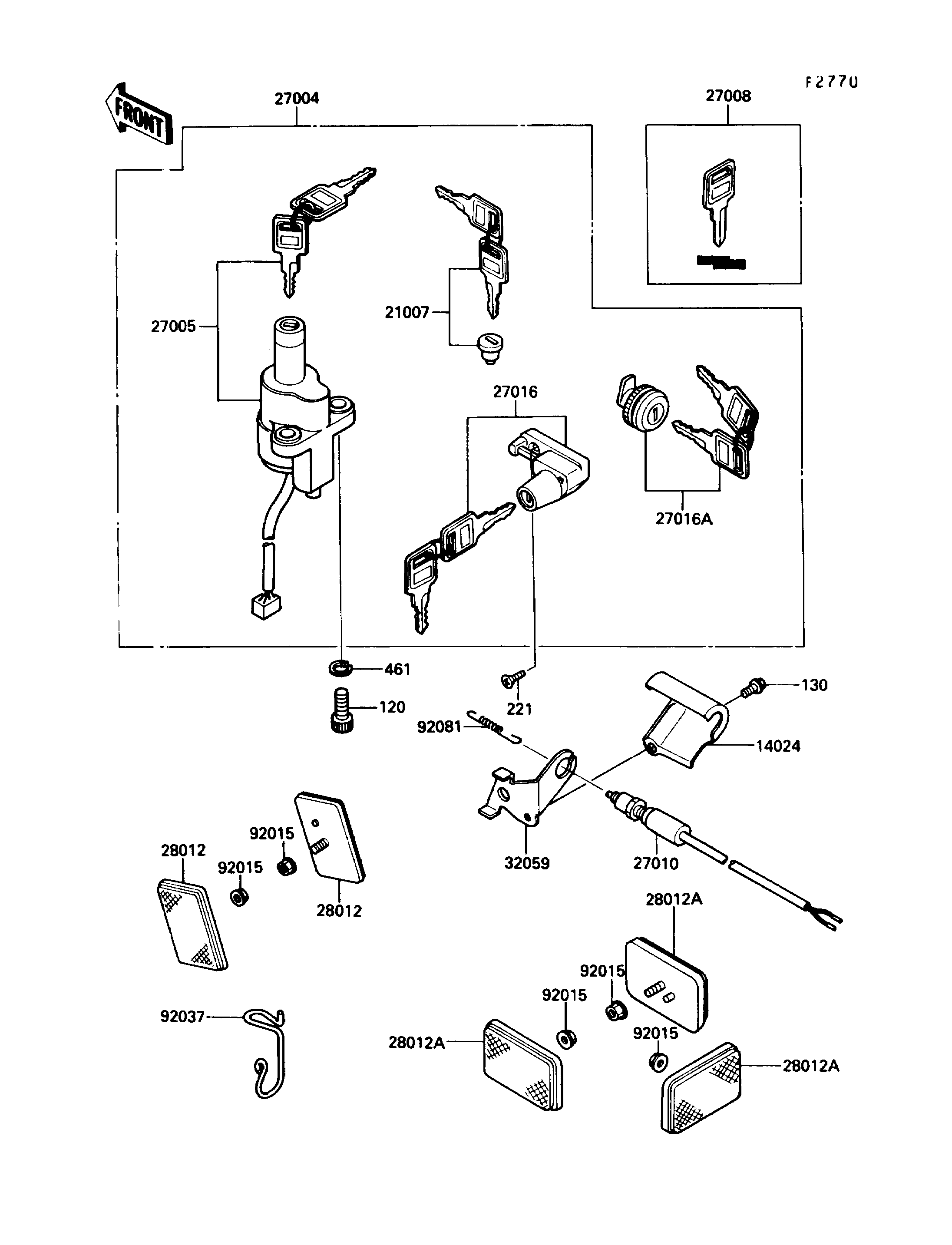

1990 454 LTD - Ignition Switch/Locks/Reflectors
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,BRAKE SWITCH | 14024 | 14025-1706 | 1 | ||
| ROTOR,LOCK,TANK CAP | 21007 | 21007-5005 | 1 | ||
| SWITCH-ASSY | 27004 | 27004-5253 | 1 | ||
| SWITCH-ASSY-IGNITION | 27005 | 27005-5044 | 1 | ||
| KEY-LOCK,BLANK | 27008 | 27008-1103 | 1 | (OPTION) | |
| SWITCH,BRAKE LAMP | 27010 | 27010-025 | 1 | ||
| LOCK-ASSY,HELMET | 27016 | 27016-5060 | 2 | ||
| LOCK-ASSY | 27016A | 27016-5081 | 1 | ||
| REFLECTOR-REFLEX,FR | 28012 | 28012-1009 | 2 | ||
| REFLECTOR-REFLEX,RR | 28012A | 28012-1051 | 3 | ||
| BRACKET-SWITCH,BRAKE SWITCH | 32059 | 32059-1063 | 1 | ||
| NUT,FLANGED,5MM | 92015 | 92015-1259 | 5 | ||
| CLAMP,HARNESS | 92037 | 92037-1686 | 1 | ||
| SPRING,BRAKE LAMP SWITCH | 92081 | 27011-006 | 1 | ||
| BOLT-SOCKET | 120 | 120T0822 | 2 | ||
| BOLT-FLANGED | 130 | 130C0608 | 1 | ||
| SCREW-CSK-CROS | 221 | 221C0516 | 2 | ||
| WASHER-SPRING | 461 | 461L0800 | 2 |
