Parts Diagrams |

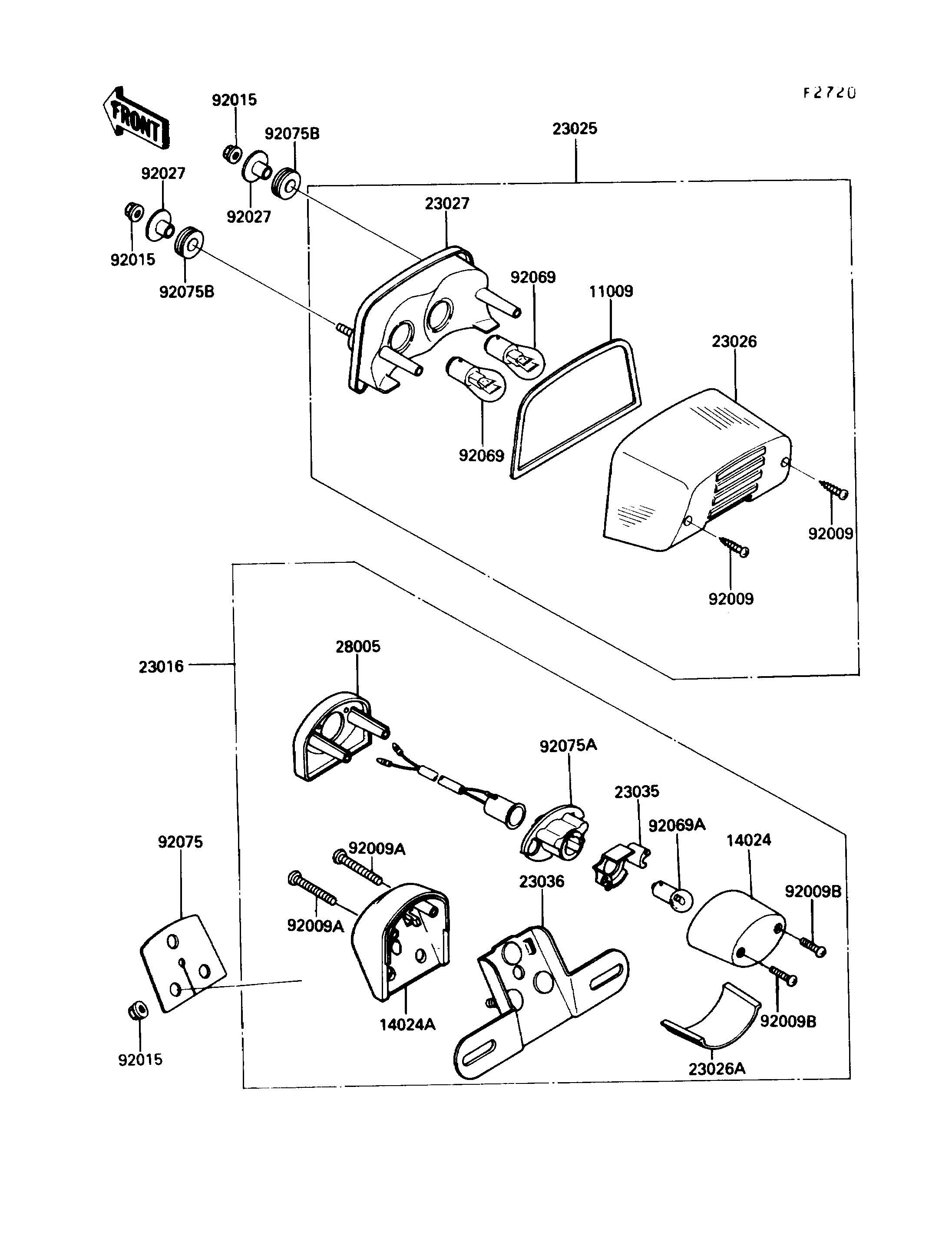

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,TAIL LAMP | 11009 | 11009-1412 | 1 | ||
| COVER,LICENSE LAMP | 14024 | 14025-1725 | 1 | ||
| COVER,LICENSE LAMP | 14024A | 14025-1728 | 1 | ||
| LAMP-ASSY,LICENSE | 23016 | 23016-1062 | 1 | ||
| LAMP-TAIL | 23025 | 23025-1117 | 1 | ||
| LENS,TAIL LAMP | 23026 | 23026-1062 | 1 | ||
| LENS,LICENSE LAMP | 23026A | 23026-1064 | 1 | ||
| BODY-COMP-TAIL LAMP | 23027 | 23027-1057 | 1 | ||
| REFLECTOR-LAMP,LICENSE | 23035 | 23035-1060 | 1 | ||
| BRACKET-TAIL LAMP | 23036 | 23036-1105 | 1 | ||
| BODY-LAMP,LICENSE | 28005 | 28005-1051 | 1 | ||
| SCREW,TAPPING,4X25 | 92009 | 92009-1069 | 2 | ||
| SCREW,TAPPING,5X40 | 92009A | 92009-1263 | 2 | ||
| SCREW,TAPPING,4X20 | 92009B | 92009-1378 | 2 | ||
| NUT,FLANGED,6MM | 92015 | 92015-1367 | 5 | ||
| COLLAR,L=13.1 | 92027 | 92027-251 | 2 | ||
| BULB,12V 27/8W | 92069 | 92069-059 | 2 | ||
| BULB,12V 8W | 92069A | 92069-1012 | 1 | ||
| DAMPER,LICENSE LAMP | 92075 | 92075-1676 | 1 | ||
| DAMPER,LICENSE LAMP | 92075A | 92075-1694 | 1 | ||
| DAMPER | 92075B | 92075-209 | 2 |
| GASKET,TAIL LAMP | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,LICENSE LAMP | |
| REF # | 14024 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,LICENSE LAMP | |
| REF # | 14024A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LAMP-ASSY,LICENSE | |
| REF # | 23016 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LAMP-TAIL | |
| REF # | 23025 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LENS,TAIL LAMP | |
| REF # | 23026 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LENS,LICENSE LAMP | |
| REF # | 23026A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BODY-COMP-TAIL LAMP | |
| REF # | 23027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| REFLECTOR-LAMP,LICENSE | |
| REF # | 23035 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET-TAIL LAMP | |
| REF # | 23036 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BODY-LAMP,LICENSE | |
| REF # | 28005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,4X25 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,5X40 | |
| REF # | 92009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,4X20 | |
| REF # | 92009B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,6MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| COLLAR,L=13.1 | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BULB,12V 27/8W | |
| REF # | 92069 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BULB,12V 8W | |
| REF # | 92069A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,LICENSE LAMP | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,LICENSE LAMP | |
| REF # | 92075A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
