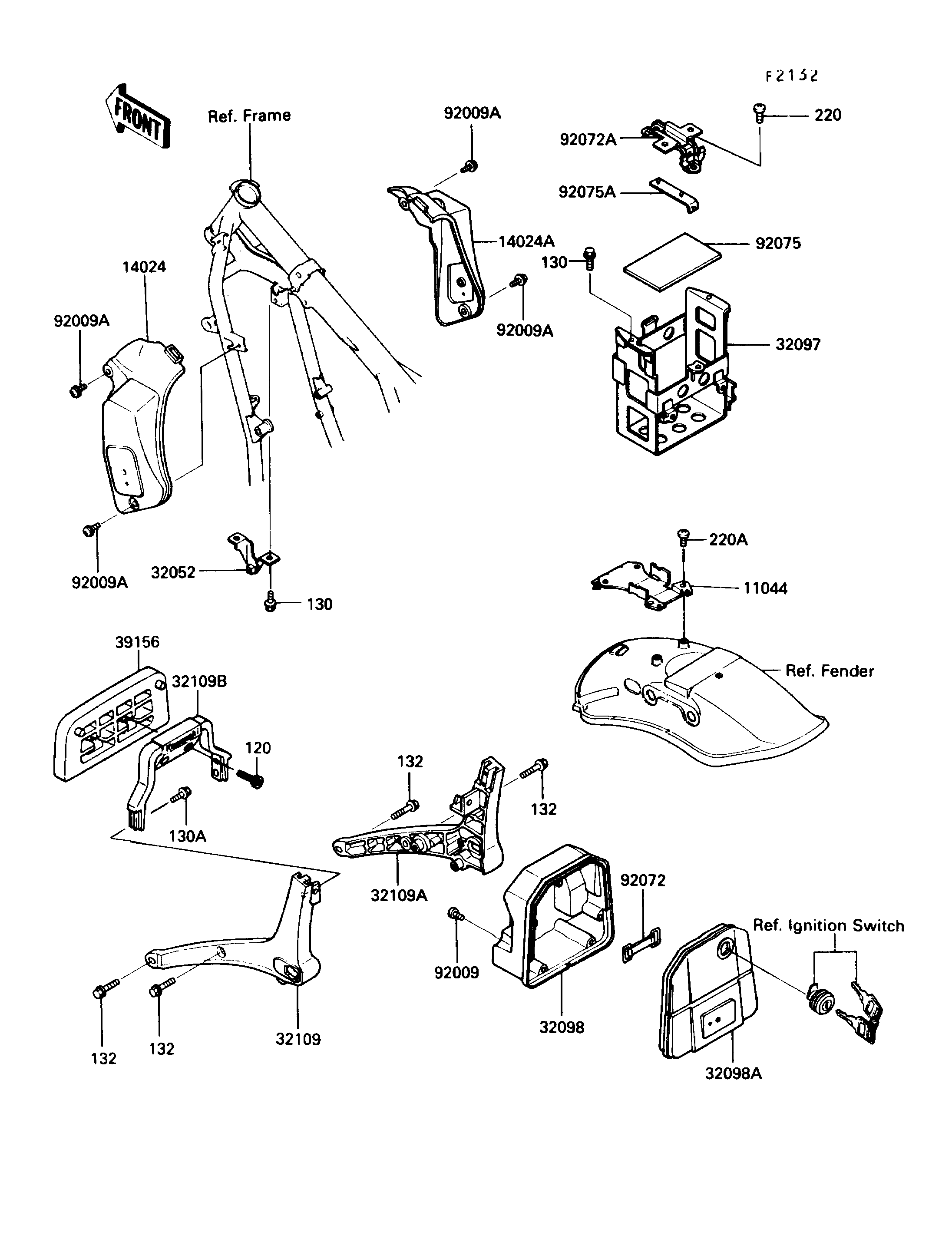

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,ELECTRIC BASE | 11044 | 11043-1174 | 1 | ||
| COVER,HEAD GUSSET,LH | 14024 | 14024-1105 | 1 | ||
| COVER,HEAD GUSSET,RH | 14024A | 14024-1106 | 1 | ||
| BRACKET-TANK | 32052 | 32052-1179 | 1 | ||
| CASE-BATTERY | 32097 | 32097-1114 | 1 | ||
| CASE-TOOL,BASE | 32098 | 32098-1060 | 1 | ||
| CASE-TOOL,CAP | 32098A | 32098-1061 | 1 | ||
| GRIP-FRAME,LH | 32109 | 32109-1117 | 1 | ||
| GRIP-FRAME,RH | 32109A | 32109-1118 | 1 | ||
| GRIP-FRAME,UPP | 32109B | 32109-1119 | 1 | ||
| PAD,GRABRAIL | 39156 | 39156-1055 | 1 | ||
| SCREW,TAPPING,5X16 | 92009 | 92009-1264 | 4 | ||
| SCREW,6X14 | 92009A | 92009-1288 | 4 | ||
| BAND,L=50 | 92072 | 92072-066 | 1 | ||
| BAND,BATTERY | 92072A | 92072-1178 | 1 | ||
| DAMPER | 92075 | 92075-1076 | 1 | ||
| DAMPER,BATTERY BAND | 92075A | 92075-1735 | 1 | ||
| BOLT-SOCKET,6X20 | 120 | 120P0620 | 2 | ||
| BOLT-FLANGED,6X12 | 130 | 130B0612 | 4 | ||
| BOLT-FLANGED | 130A | 130B0614 | 4 | ||
| BOLT-FLANGED-SMALL | 132 | 132E0830 | 4 | ||
| SCREW-PAN-CROS,6X12 | 220 | 220B0612 | 1 | ||
| SCREW-PAN-CROS | 220A | 220D0610 | 2 |
