Parts Diagrams |

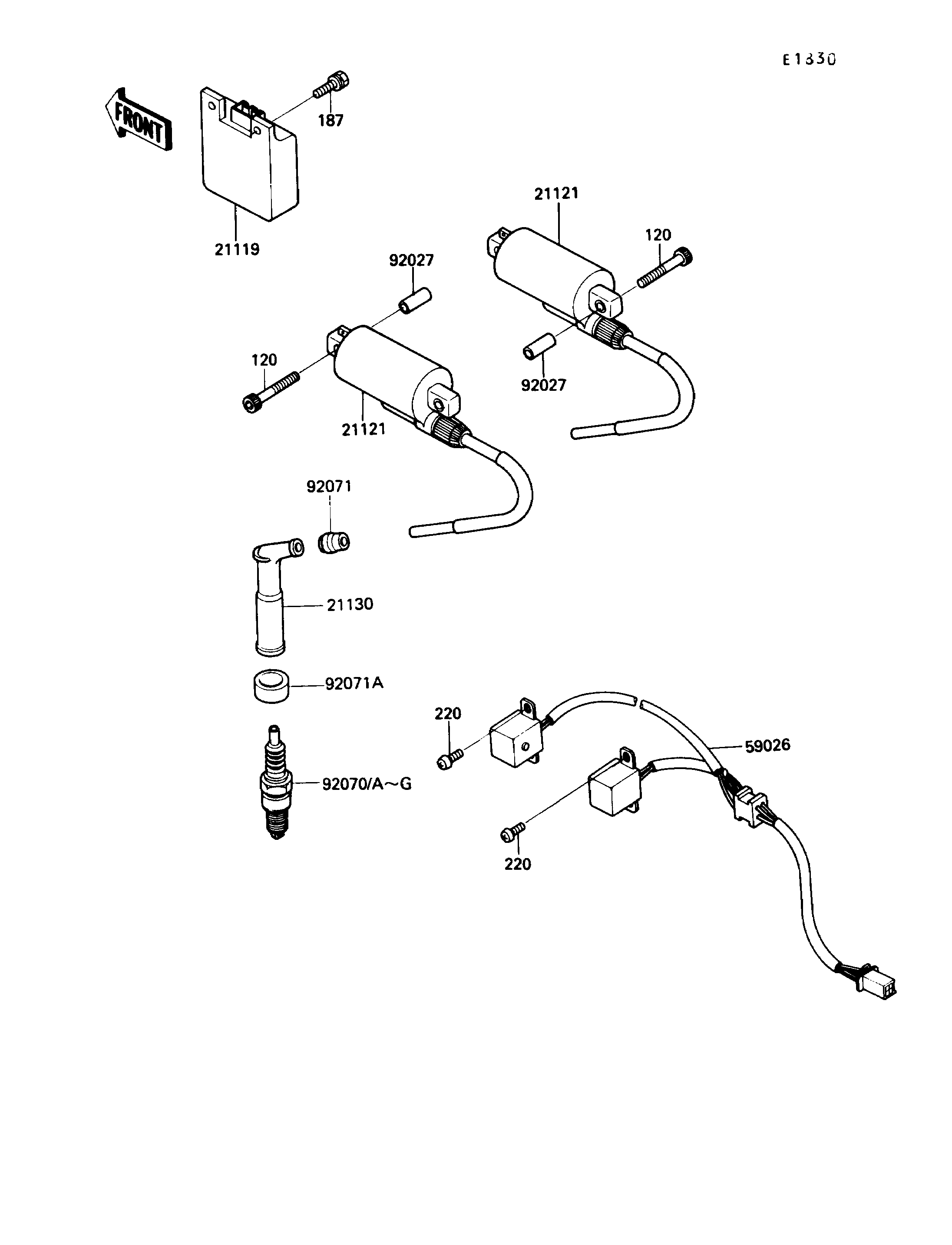

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| IGNITER | 21119 | 21119-1219 | 1 | ||
| COIL-IGNITION | 21121 | 21121-1130 | 2 | ||
| CAP-SPARK PLUG | 21130 | 21130-1002 | 2 | ||
| COIL-PULSING | 59026 | 59026-1066 | 1 | ||
| COLLAR,6.8X10X23 | 92027 | 92027-1870 | 4 | ||
| PLUG-SPARK,X24ESR-U(ND) | 92070 | 2 | CN | ||
| PLUG-SPARK,D8EA(NGK) | 92070A | 92070-1011 | 2 | CAUS | |
| PLUG-SPARK,DR8ES(NGK) | 92070B | 92070-1019 | 2 | CN | |
| PLUG-SPARK,X24ES-U(ND) | 92070C | 2 | CAUS | ||
| PLUG-SPARK,D9EA(NGK) | 92070D | 92070-1034 | 2 | CAUS | |
| PLUG-SPARK,X27ES-U(ND) | 92070E | 2 | CAUS | (LOCAL PROCUREMENT ITEM) | |
| PLUG-SPARK,X27ESR-U(ND) | 92070F | 2 | CN | ||
| PLUG-SPARK,DR8ES-L(NGK) | 92070G | 92070-1116 | 2 | CN | |
| GROMMET,HIGH TENSION | 92071 | 21131-005 | 2 | ||
| GROMMET,PLUG CAP | 92071A | 92071-1124 | 2 | ||
| BOLT-SOCKET,6X45 | 120 | 120P0645 | 4 | ||
| BOLT-UPSET-WSP | 187 | 187G0616 | 2 | ||
| SCREW-PAN-CROS | 220 | 220B0510 | 4 |
| IGNITER | |
| REF # | 21119 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COIL-IGNITION | |
| REF # | 21121 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CAP-SPARK PLUG | |
| REF # | 21130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COIL-PULSING | |
| REF # | 59026 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,6.8X10X23 | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| PLUG-SPARK,X24ESR-U(ND) | |
| REF # | 92070 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CN |
| REMARKS | |
| PLUG-SPARK,D8EA(NGK) | |
| REF # | 92070A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CAUS |
| REMARKS | |
| PLUG-SPARK,DR8ES(NGK) | |
| REF # | 92070B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CN |
| REMARKS | |
| PLUG-SPARK,X24ES-U(ND) | |
| REF # | 92070C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CAUS |
| REMARKS | |
| PLUG-SPARK,D9EA(NGK) | |
| REF # | 92070D |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CAUS |
| REMARKS | |
| PLUG-SPARK,X27ES-U(ND) | |
| REF # | 92070E |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CAUS |
| REMARKS | (LOCAL PROCUREMENT ITEM) |
| PLUG-SPARK,X27ESR-U(ND) | |
| REF # | 92070F |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CN |
| REMARKS | |
| PLUG-SPARK,DR8ES-L(NGK) | |
| REF # | 92070G |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CN |
| REMARKS | |
| GROMMET,HIGH TENSION | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GROMMET,PLUG CAP | |
| REF # | 92071A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-SOCKET,6X45 | |
| REF # | 120 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET-WSP | |
| REF # | 187 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-CROS | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
