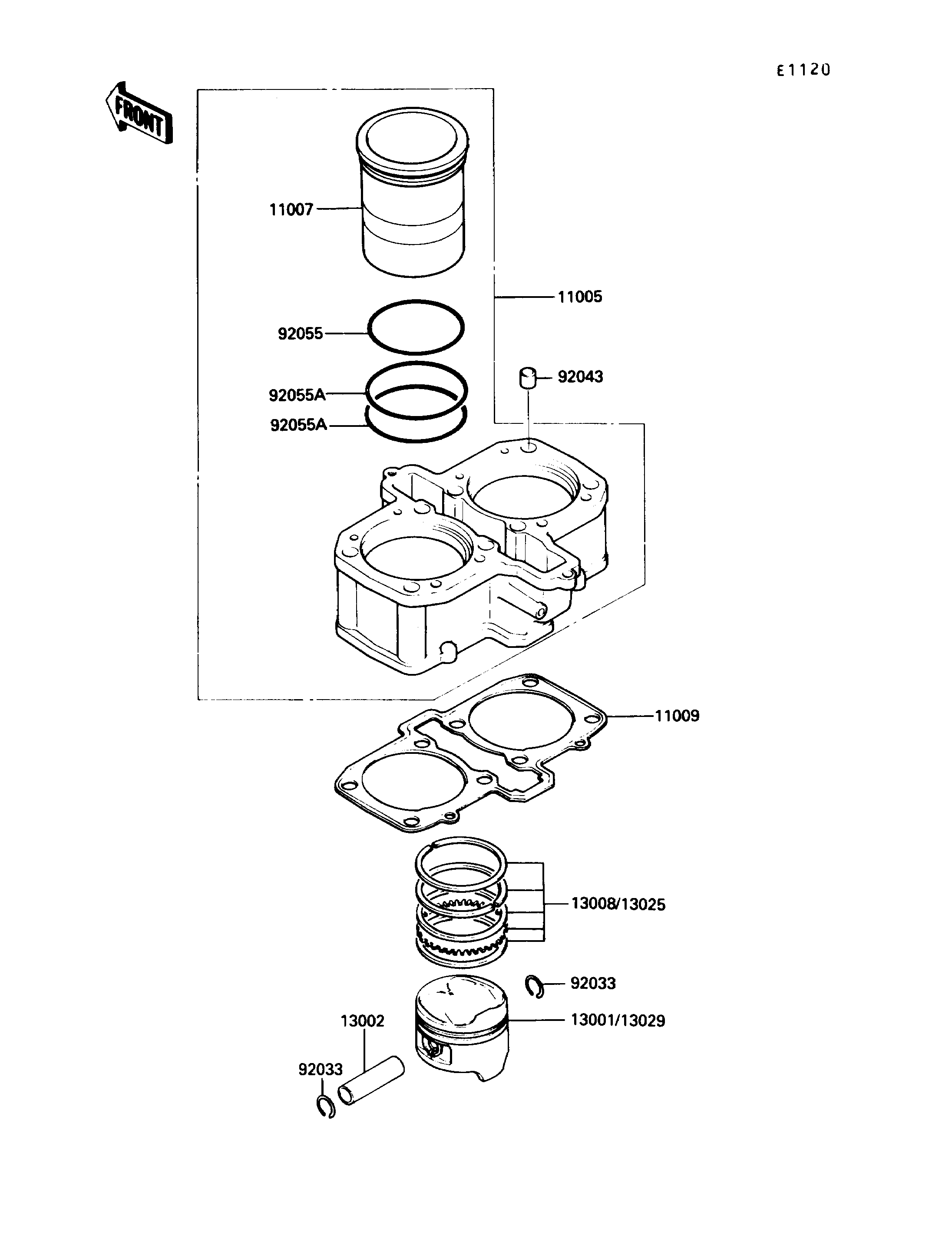

1990 454 LTD - Cylinder/Piston(s)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CYLINDER-ENGINE 11005 11005-1418 1
LINER-CYLINDER 11007 11007-1079 2
GASKET,CYLINDER BASE 11009 11009-1640 1
PISTON-ENGINE,STD 13001 13001-1206 2
PIN-PISTON,12X18X57.2 13002 13002-1023 2
RING-SET-PISTON,STD 13008 13008-1053 2
RING-SET-PISTON L,O/S 0.50 13025 13025-1053 2
PISTON-ENGINE L,O/S 0.50 13029 13029-1168 2
RING-SNAP,20.5X1.2 92033 92033-1099 4
PIN,11X14X12.3 92043 92043-1266 2
RING-O,78MM 92055 92055-1229 2
RING-O,79.5MM 92055A 92055-1230 4
