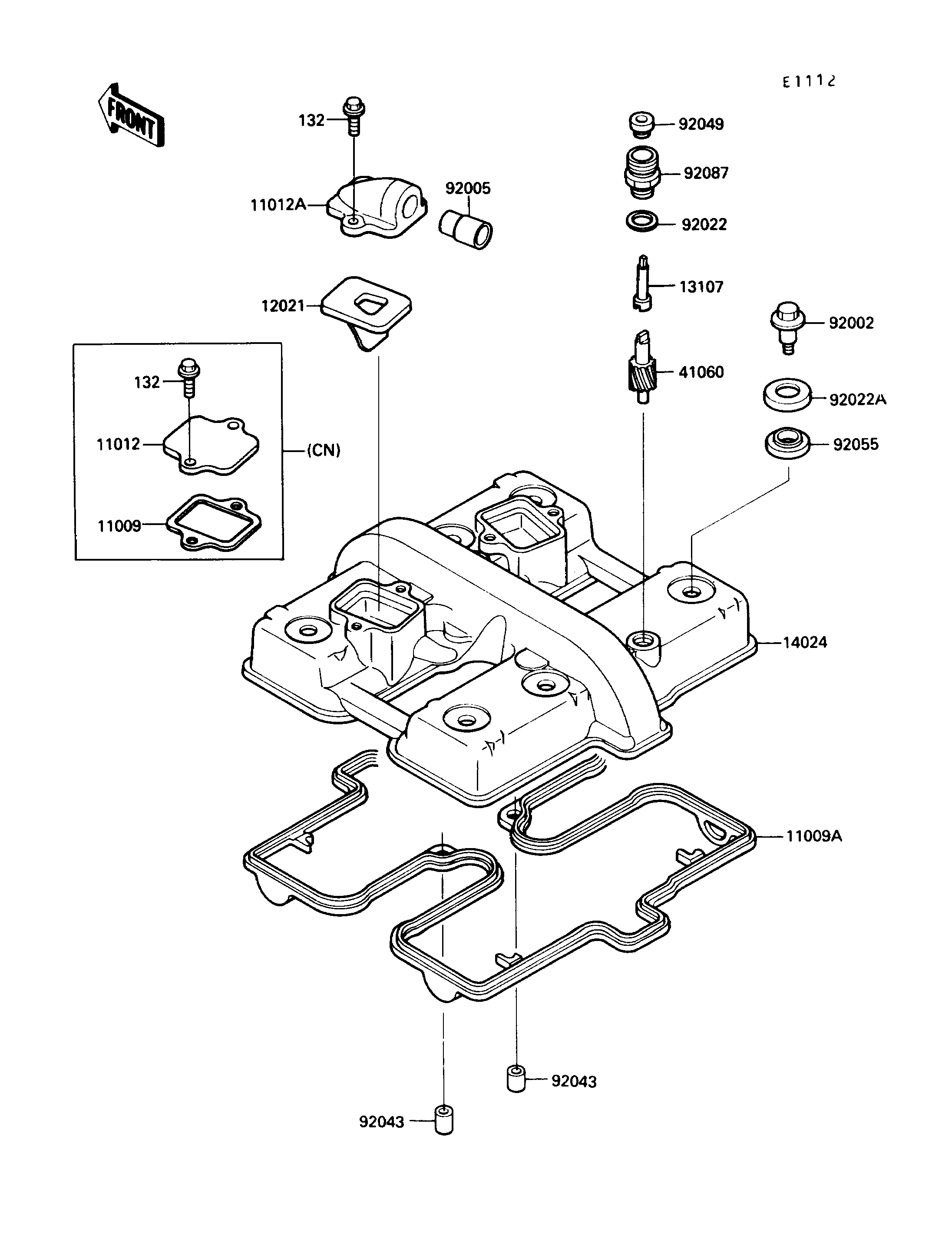

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,REED VALVE | 11009 | 11009-1246 | 2 | CN | |
| GASKET,CYLINDER HEAD COVER | 11009A | 11009-1483 | 1 | ||
| CAP,CYLINDER HEAD COVER | 11012 | 11012-1212 | 2 | CN | |
| CAP,REED VALVE | 11012A | 11012-1435 | 2 | CAUS | |
| VALVE-ASSY-REED | 12021 | 12021-1026 | 2 | CAUS | |
| SHAFT,METER GEAR | 13107 | 13107-1140 | 1 | ||
| COVER,CYLINDER HEAD | 14024 | 14025-1702 | 1 | ||
| GEAR-METER SCREW | 41060 | 41060-1109 | 1 | ||
| BOLT,HEAD COVER | 92002 | 92002-1504 | 6 | ||
| FITTING,REED VALVE | 92005 | 92005-1006 | 2 | CAUS | |
| WASHER | 92022 | 92022-1211 | 1 | ||
| WASHER,HEAD COVER BOLT | 92022A | 92022-1637 | 6 | ||
| PIN,DOWEL,8X10 | 92043 | 92043-1302 | 2 | ||
| SEAL-OIL | 92049 | 92050-075 | 1 | ||
| RING-O,HEAD COVER BOLT | 92055 | 92055-1225 | 6 | ||
| BUSHING-METER GEAR | 92087 | 92087-1053 | 1 | ||
| BOLT-FLANGED-SMALL | 132 | 132E0616 | 4 |
| GASKET,REED VALVE | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CN |
| REMARKS | |
| GASKET,CYLINDER HEAD COVER | |
| REF # | 11009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP,CYLINDER HEAD COVER | |
| REF # | 11012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CN |
| REMARKS | |
| CAP,REED VALVE | |
| REF # | 11012A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CAUS |
| REMARKS | |
| VALVE-ASSY-REED | |
| REF # | 12021 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CAUS |
| REMARKS | |
| SHAFT,METER GEAR | |
| REF # | 13107 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,CYLINDER HEAD | |
| REF # | 14024 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR-METER SCREW | |
| REF # | 41060 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,HEAD COVER | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| FITTING,REED VALVE | |
| REF # | 92005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CAUS |
| REMARKS | |
| WASHER | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,HEAD COVER BOLT | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| PIN,DOWEL,8X10 | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O,HEAD COVER BOLT | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| BUSHING-METER GEAR | |
| REF # | 92087 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED-SMALL | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
