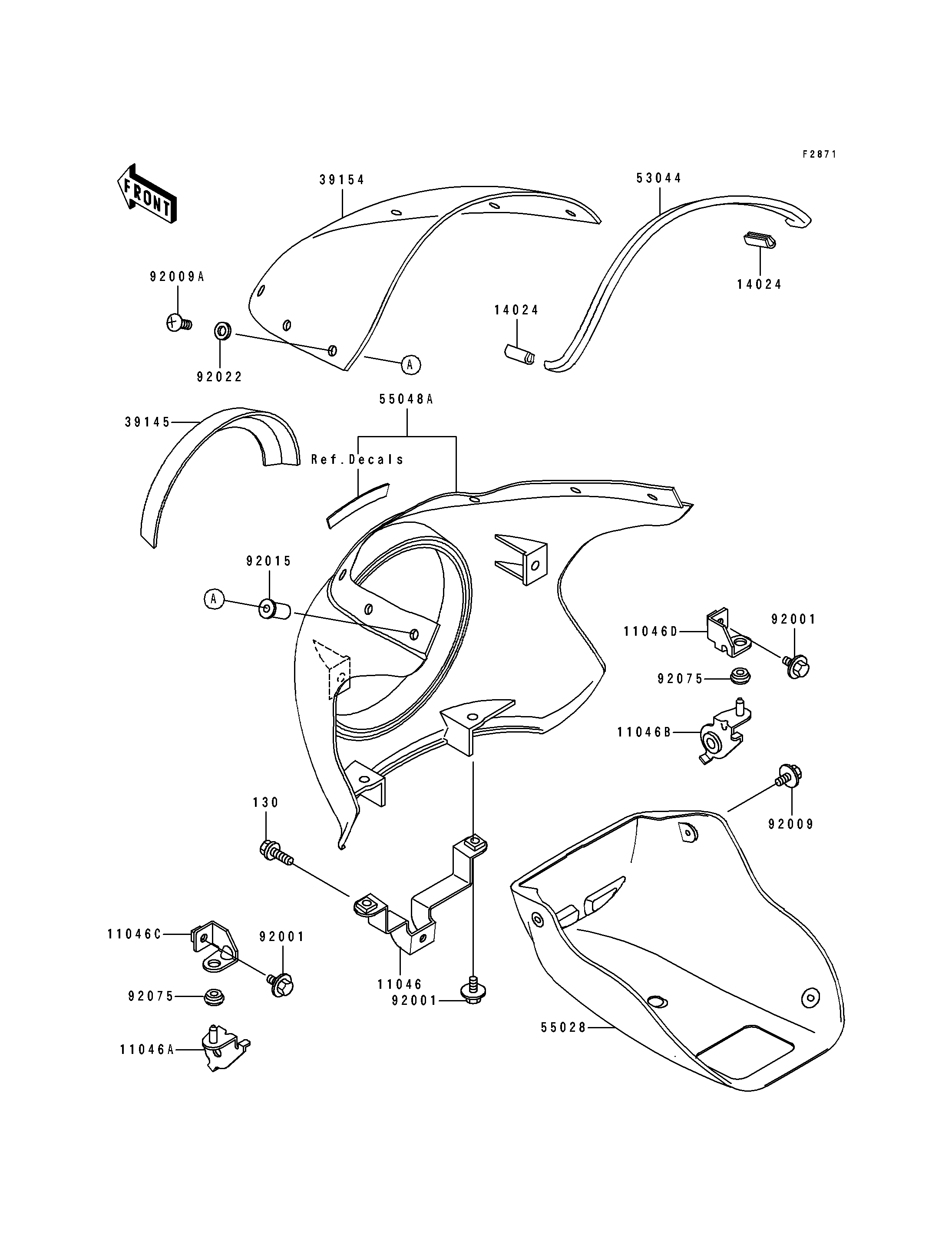

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,COWLING,LWR | 11046 | 11046-1352 | 1 | ||
| BRACKET,COWLING,LAMP STAY,LH | 11046A | 11046-1353 | 1 | ||
| BRACKET,COWLING,LAMP STAY,RH | 11046B | 11046-1354 | 1 | ||
| BRACKET,COWLING,UPP,LH | 11046C | 11046-1406 | 1 | ||
| BRACKET,COWLING,UPP,RH | 11046D | 11046-1407 | 1 | ||
| COVER,TRIM END | 14024 | 14024-1730 | 2 | ||
| TRIM-SEAL,HEAD LAMP | 39145 | 39145-1090 | 1 | ||
| WINDSHIELD | 39154 | 39154-1099 | 1 | ||
| TRIM,WINDSHIELD | 53044 | 53044-1211 | 1 | ||
| COWLING,LWR,C.C.RED | 55028 | 55028-1220-L1 | 1 | ||
| COWLING.,UPP,C.C.RED | 55048A | 55048-5472-L1 | 1 | ||
| BOLT,6X14,BLACK | 92001 | 92001-1847 | 4 | ||
| SCREW,6X14 | 92009 | 92009-1288 | 4 | ||
| SCREW,5X14 | 92009A | 92009-1653 | 7 | ||
| NUT,WELL,5MM | 92015 | 92015-1757 | 7 | ||
| WASHER,NYLON,5.3X11.5X1.5 | 92022 | 92022-1521 | 7 | ||
| DAMPER | 92075 | 92075-1011 | 2 | ||
| BOLT-FLANGED,6X14 | 130 | 130C0614 | 1 |
