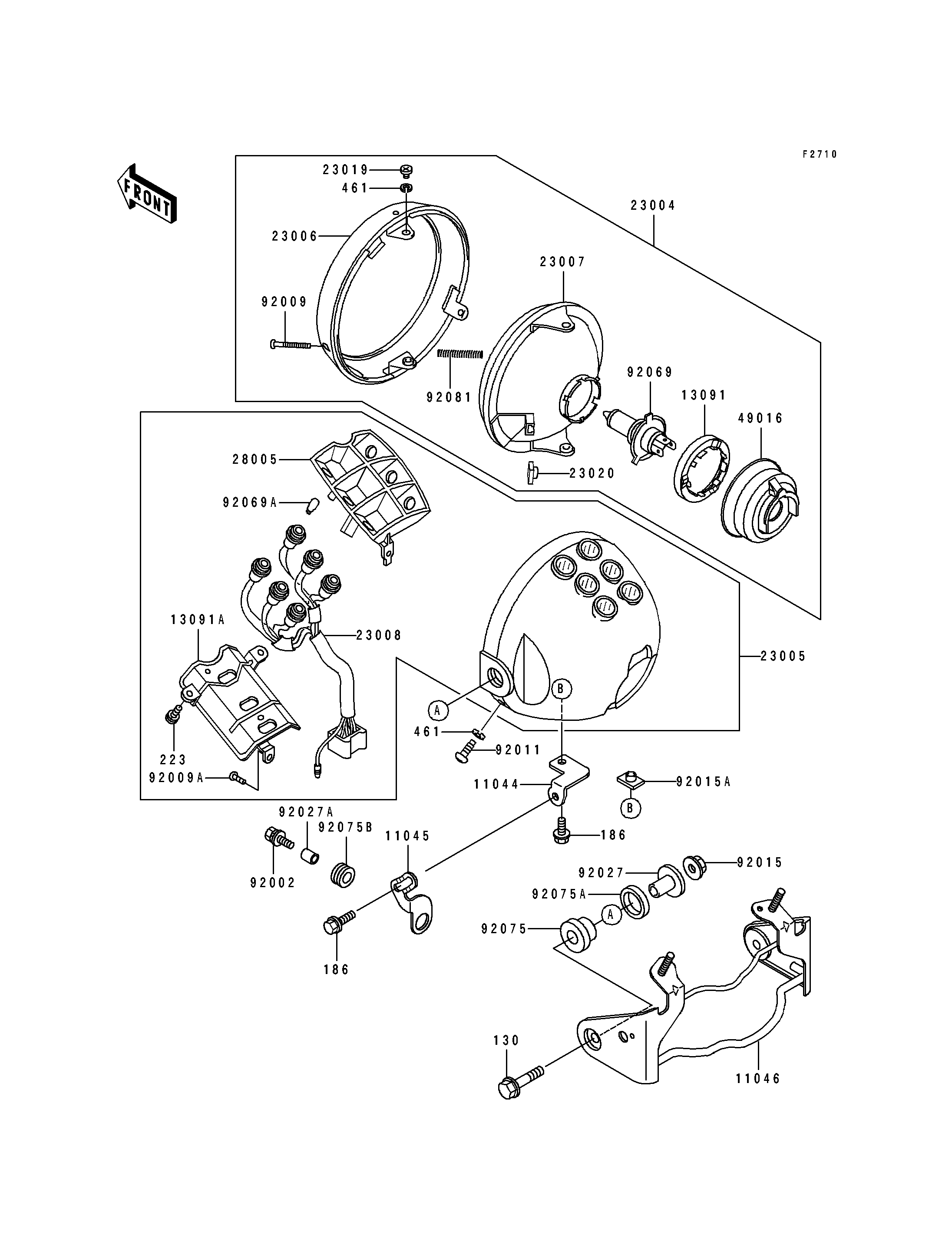

1992 Eliminator 250 - Headlight(s)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,HEAD LAMP,LWR 11044 11044-1915 1
BRACKET,HEAD LAMP,LWR 11045 11045-1789 1
BRACKET,HEAD LAMP STAY 11046 11046-1761 1
HOLDER,HEAD LAMP SOCKET 13091 13091-1386 1
HOLDER,HEAD LAMP 13091A 13091-1387 1
LAMP-HEAD 23004 23004-1188 1
BODY-COMP-HEAD LAMP,EBONY 23005 23005-1076-H8 1
RIM-LAMP 23006 23006-1057 1
LENS-COMP,HEAD LAMP 23007 23007-1136 1
SOCKET-ASSY,HEAD LAMP 23008 23008-1316 1
SCREW,LENS FITTING 23019 23019-031 2
NUT,ADJUSTING 23020 23020-012 1
BODY-LAMP,INDICATOR 28005 28005-1053 1
COVER-SEAL,HEAD LAMP SOCKET 49016 49016-1110 1
BOLT,6X25 92002 92002-1137 1
SCREW,FOCUS ADJUST 92009 92009-1394 1
SCREW,TAPPING,4X12 92009A 92009-1395 1
SCREW,5MM 92011 92011-024 2
NUT,FLANGED,8MM 92015 92015-1014 2
NUT,6MM,HEAD LAMP 92015A 92015-1231 1
COLLAR,L=20 92027 92027-1131 2
COLLAR,6.8X10X12 92027A 92027-162 1
BULB,12V 60/55W,H4 92069 92069-1002 1
BULB,12V3W T-7 92069A 92069-1020 5
DAMPER,HEAD LAMP FITTING 92075 92075-1109 2
DAMPER,HEAD LAMP FITTING 92075A 92075-1110 2
DAMPER 92075B 92075-209 1
SPRING,FOCUS ADJUST 92081 92081-1892 1
BOLT-FLANGED,8X40 130 130C0840 2
BOLT-UPSET-WP 186 186C0614 2
SCREW-PAN-WS-CROS 223 223D0410 2
WASHER-SPRING,5MM 461 461F0500 4
