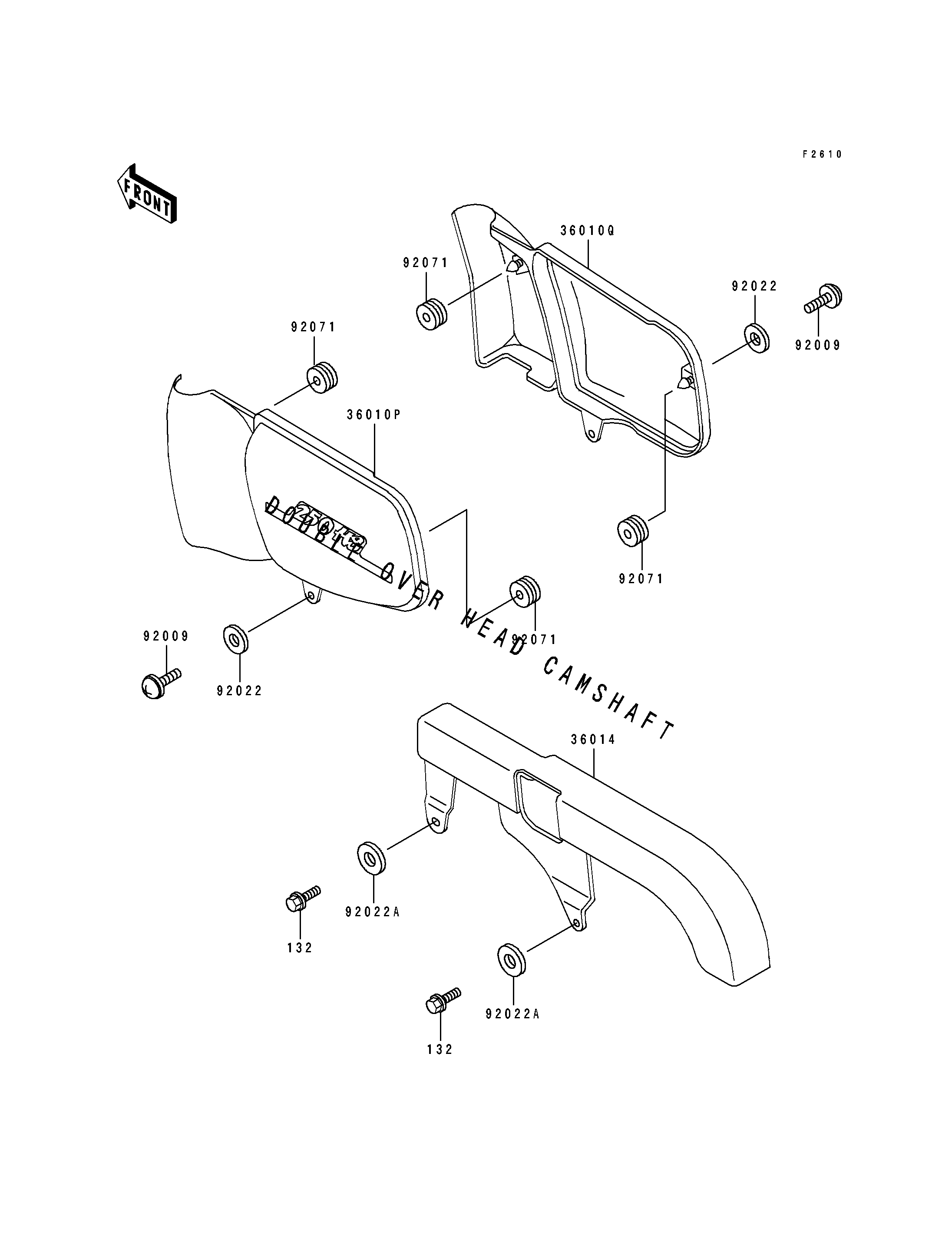

1994 Eliminator 250 - Side Covers/Chain Cover
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER-SIDE,LH,RED/CR PLATED | 36010P | 36010-5406-HX | 1 | ||
| COVER-SIDE,RH,RED/CR PLATED | 36010Q | 36010-5407-HX | 1 | ||
| CASE-CHAIN | 36014 | 36014-1148 | 1 | ||
| SCREW,6X14,WHITE | 92009 | 92009-1287 | 2 | ||
| WASHER,6.5X16X1.0 | 92022 | 92022-1654 | 2 | ||
| WASHER,6.5X20X1.6,WHITE | 92022A | 92022-193 | 2 | ||
| GROMMET | 92071 | 92071-056 | 4 | ||
| BOLT-FLANGED-SMALL,6X14 | 132 | 132E0614 | 2 |
