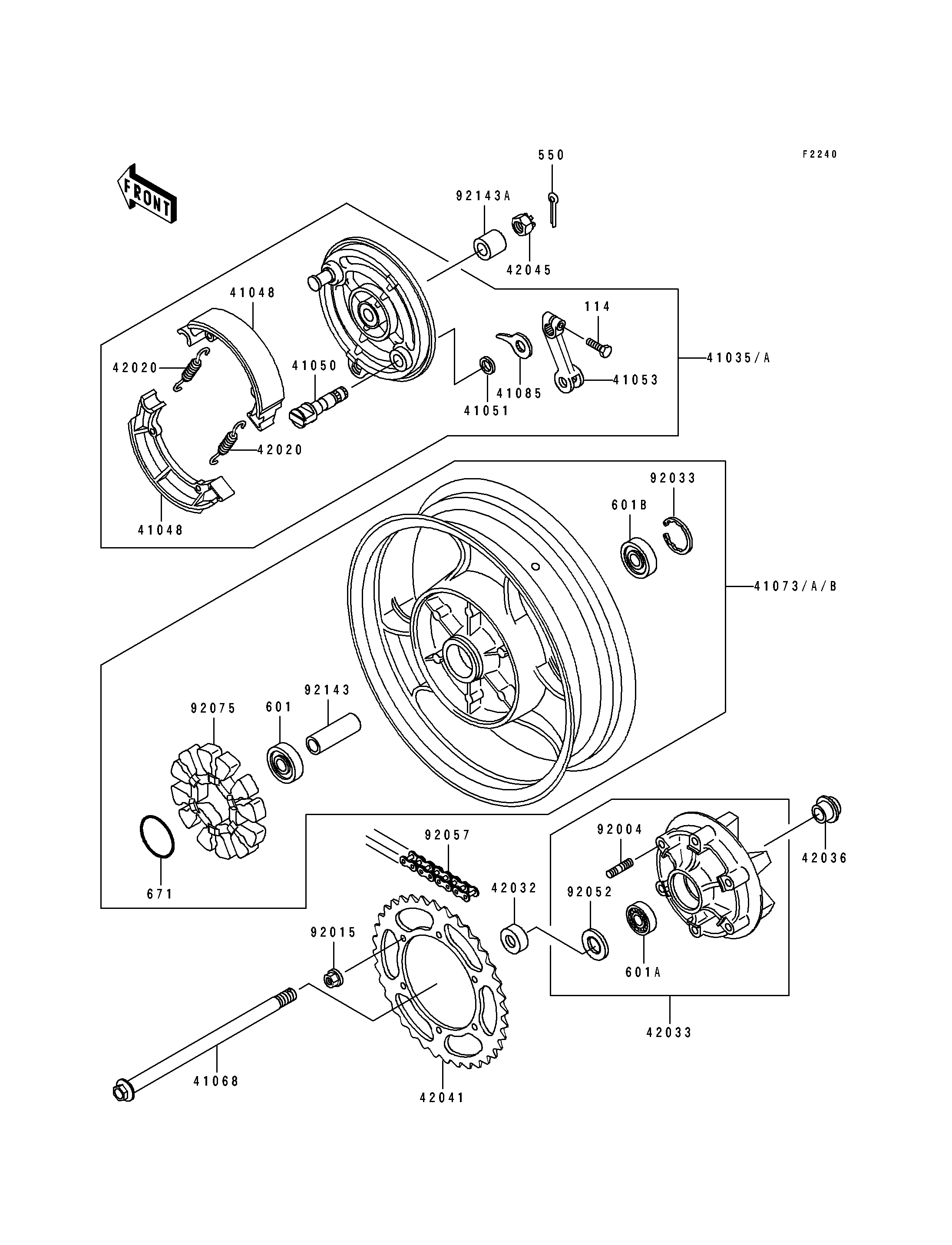

1992 Eliminator 250 - Rear Wheel/Chain
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PANEL-ASSY-BRAKE,RR | 41035 | 41035-1251 | 1 | ||
| SHOE-BRAKE | 41048 | 41048-1069 | 2 | ||
| CAM-BRAKE | 41050 | 41050-1065 | 1 | ||
| SEAL,BRAKE CAM | 41051 | 41051-003 | 1 | ||
| LEVER-BRAKE CAM | 41053 | 41053-1068 | 1 | ||
| AXLE,RR | 41068 | 41068-1192 | 1 | ||
| WHEEL-ASSY,RR,G.GRAY | 41073 | 41073-1462-HY | 1 | ||
| INDICATOR | 41085 | 41085-1060 | 1 | ||
| SPRING,BRAKE SHOE | 42020 | 42020-004 | 2 | ||
| COLLAR,17X35X17.5 | 42032 | 42032-068 | 1 | ||
| COUPLING-ASSY,RR HUB | 42033 | 42033-1107 | 1 | ||
| SLEEVE,L=25 | 42036 | 42036-1055 | 1 | ||
| SPROCKET-HUB,44T | 42041 | 42041-1292 | 1 | ||
| NUT,CASTLE,16MM | 42045 | 42045-014 | 1 | ||
| STUD,10X19 | 92004 | 92004-1111 | 6 | ||
| NUT,10MM | 92015 | 92015-1720 | 6 | ||
| RING-SNAP,47MM | 92033 | 92033-1042 | 1 | ||
| SEAL-OIL,TWC35527 | 92052 | 92052-006 | 1 | ||
| CHAIN,DRIVE,EK520SV-OX114L | 92057 | 92057-1240 | 1 | ||
| DAMPER,RR HUB SHOCK | 92075 | 92075-1436 | 1 | ||
| COLLAR,17.2X25X105 | 92143 | 92143-1124 | 1 | ||
| COLLAR,17.2X30X23.5 | 92143A | 92143-1125 | 1 | ||
| BOLT,SMALL,8X28 | 114 | 114G0828 | 1 | ||
| PIN-COTTER,4.0X35 | 550 | 550D4035 | 1 | ||
| BEARING-BALL,#6203ZZC3 | 601 | 601B6203ZZ | 1 | ||
| BEARING-BALL,#6205G | 601A | 601B6205G | 1 | ||
| BEARING-BALL,#6303ZZC3 | 601B | 601B6303ZZ | 1 | ||
| O RING | 671 | 671B2550 | 1 |
