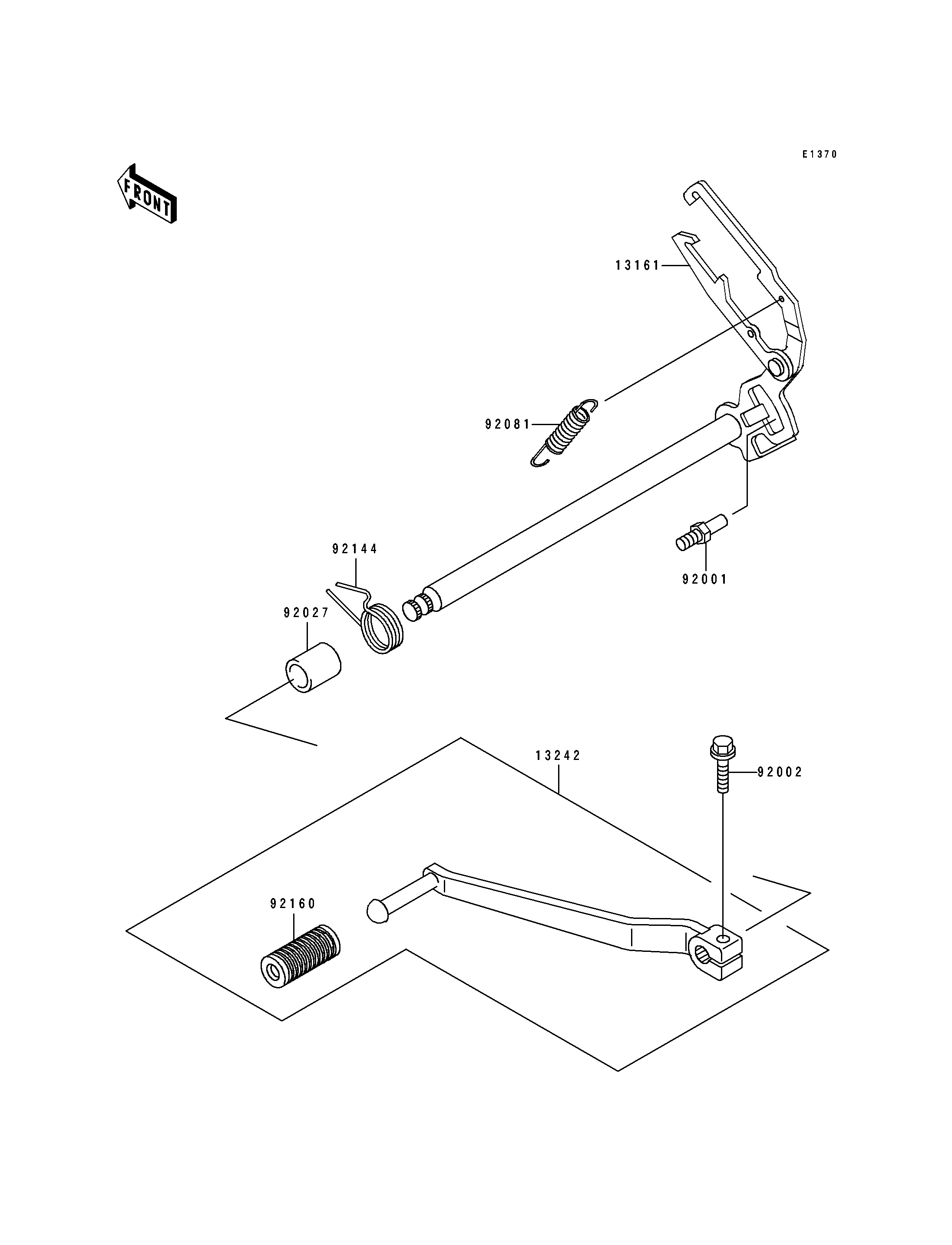

1994 Eliminator 250 - Gear Change Mechanism
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LEVER-COMP-CHANGE SHAFT | 13161 | 13161-1131 | 1 | ||
| LEVER-ASSY-CHANGE,PEDAL | 13242 | 13242-1238 | 1 | ||
| BOLT,RETURN SPRING | 92001 | 92001-1455 | 1 | ||
| BOLT,6X20 | 92002 | 92002-1237 | 1 | ||
| COLLAR,13X18.3X21.5 | 92027 | 92027-1440 | 1 | ||
| SPRING,CHANGE LEVER | 92081 | 92081-076 | 1 | ||
| SPRING,CHANGE PEDAL RETURN | 92144 | 92144-1074 | 1 | ||
| DAMPER,CHANGE PEDAL | 92160 | 92160-1036 | 1 |
