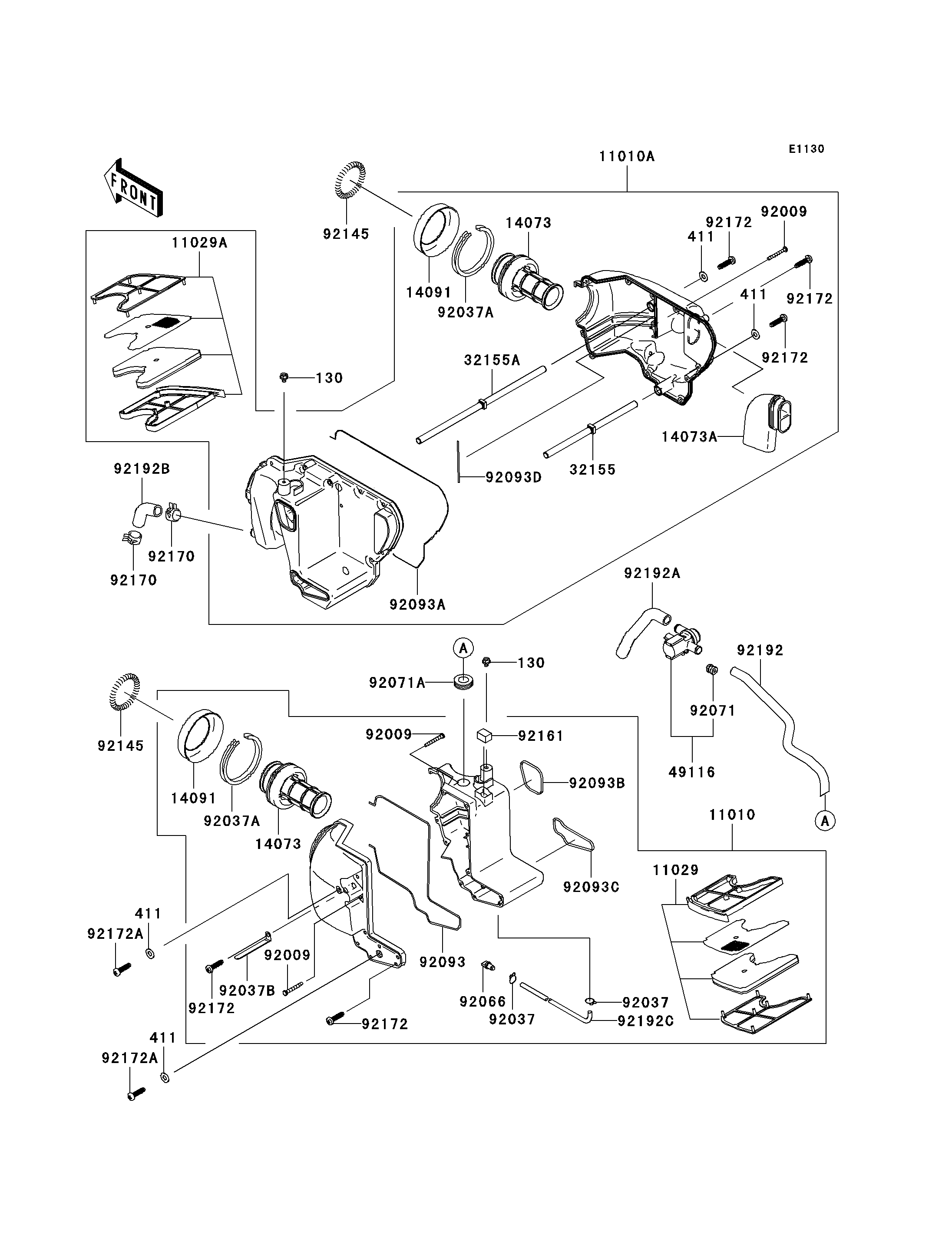

2011 W800 (European) - Air Cleaner

DOWNLOAD PDF
SELECT A NEW PART
130
130
411
411
411
411
11010
11010A
11029
11029A
14073
14073
14073A
14091
14091
32155
32155A
49116
92009
92009
92009
92037
92037
92037A
92037A
92037B
92066
92071
92071A
92093
92093A
92093B
92093C
92093D
92145
92145
92161
92170
92170
92172
92172
92172
92172
92172
92172A
92172A
92192
92192A
92192B
92192C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X8 130 130BA0608 2
WASHER-PLAIN,5MM,BLACK 411 411AB0500 4
FILTER-ASSY-AIR,LH 11010 11010-0215 1
FILTER-ASSY-AIR,RH 11010A 11010-0216 1
ELEMENT-ASSY-AIR FILTER,LH 11029 11029-0012 1
ELEMENT-ASSY-AIR FILTER,RH 11029A 11029-0013 1
DUCT 14073 14073-0300 2
DUCT,INTAKE 14073A 14073-0301 1
COVER,AIR FILTER 14091 14091-1088 2
PIPE,L=218 32155 32155-0462 1
PIPE,L=303 32155A 32155-0463 1
VALVE-ASSY,AIR CUT 49116 49116-0017 1
SCREW,TAPPING,5X40 92009 92009-1263 5
CLAMP,TUBE 92037 92037-147 2
CLAMP,69MM 92037A 92037-1631 2
CLAMP 92037B 92037-1679 1
PLUG,DRAIN 92066 92066-1211 1
GROMMET 92071 92071-0026 1
GROMMET,AIR SUCTION VALVE 92071A 92071-1249 1
SEAL 92093 92093-1492 1
SEAL 92093A 92093-1493 1
SEAL 92093B 92093-1496 1
SEAL 92093C 92093-1497 1
SEAL 92093D 92093-1498 1
SPRING 92145 92145-0795 2
DAMPER 92161 92161-1115 1
CLAMP 92170 92170-1060 2
SCREW,TAPPING,5X20 92172 92172-0009 22
SCREW,TAPPING,5X20 92172A 92172-0011 2
TUBE,ACV-A/C 92192 92192-0916 1
TUBE,HEAD-ACV 92192A 92192-0917 1
TUBE,BREATHER 92192B 92192-0972 1
TUBE,DRAIN 92192C 92192-1034 1
