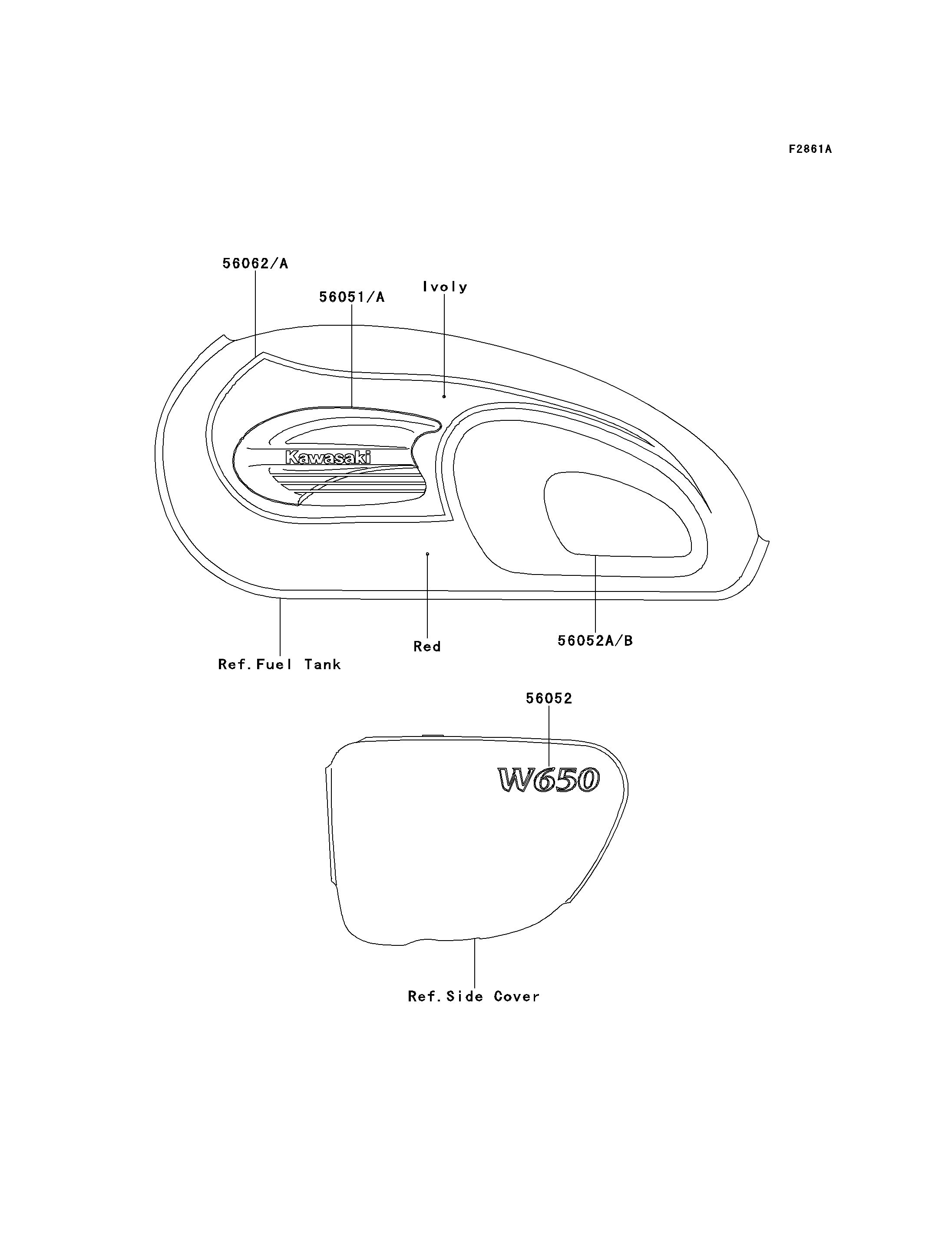

2000 W650 - Decals(Red/Ivory)(EJ650-A2)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,FUEL TANK,LH | 56051 | 56051-1996 | 1 | CN | |
| MARK,FUEL TANK,RH | 56051A | 56051-1997 | 1 | CN | |
| MARK,SIDE COVER,W650 | 56052 | 56052-1068 | 2 | CN | |
| MARK,FUEL TANK PAD,LH | 56052A | 56052-1093 | 1 | CN | |
| MARK,FUEL TANK PAD,RH | 56052B | 56052-1094 | 1 | CN | |
| PATTERN,FUEL TANK,LH | 56062 | 56062-1923 | 1 | CN | |
| PATTERN,FUEL TANK,RH | 56062A | 56062-1924 | 1 | CN |
| MARK,FUEL TANK,LH | |
| REF # | 56051 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| MARK,FUEL TANK,RH | |
| REF # | 56051A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| MARK,SIDE COVER,W650 | |
| REF # | 56052 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CN |
| REMARKS | |
| MARK,FUEL TANK PAD,LH | |
| REF # | 56052A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| MARK,FUEL TANK PAD,RH | |
| REF # | 56052B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,FUEL TANK,LH | |
| REF # | 56062 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,FUEL TANK,RH | |
| REF # | 56062A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
