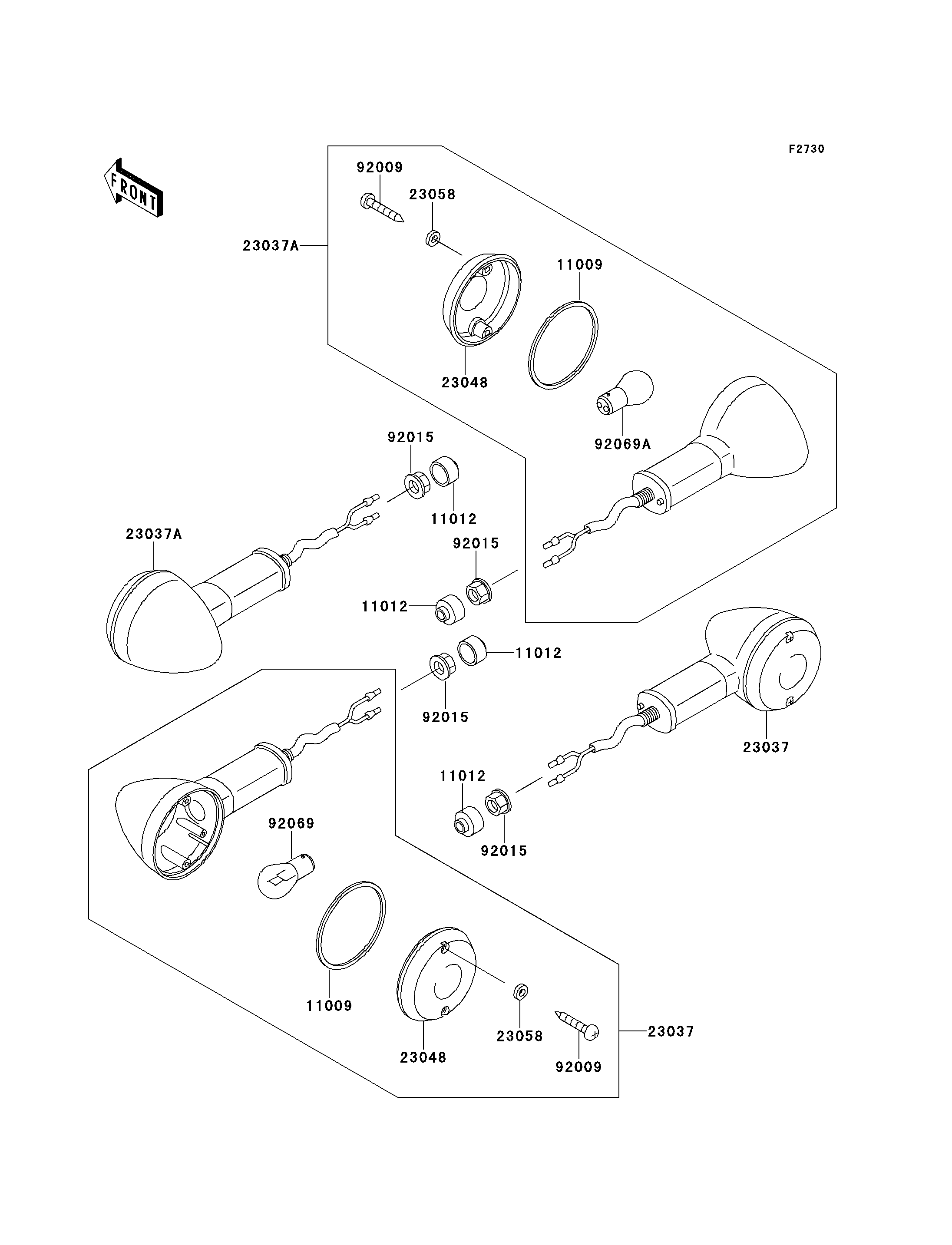

2000 W650 - Turn Signals

DOWNLOAD PDF
SELECT A NEW PART
11009
11009
11012
11012
11012
11012
23037
23037
23037A
23037A
23048
23048
23058
23058
92009
92009
92015
92015
92015
92015
92069
92069A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,SIGNAL LAMP 11009 11009-1413 4
CAP,SIGNAL LAMP 11012 11012-1367 4
LAMP-ASSY-SIGNAL,RR 23037 23037-1303 2
LAMP-ASSY-SIGNAL,FR 23037A 23037-1368 2
LENS-SIGNAL LAMP 23048 23048-1066 4
WASHER,PLAIN,4MM 23058 23058-002 8
SCREW,TAPPING,4X25 92009 92009-1637 8
NUT,FLANGED,10MM 92015 92015-1428 4
BULB,12V 32CP(23W) 92069 92069-055 2
BULB,12V 32/3CP(23/8W) 92069A 92069-060 2
