Parts Diagrams |

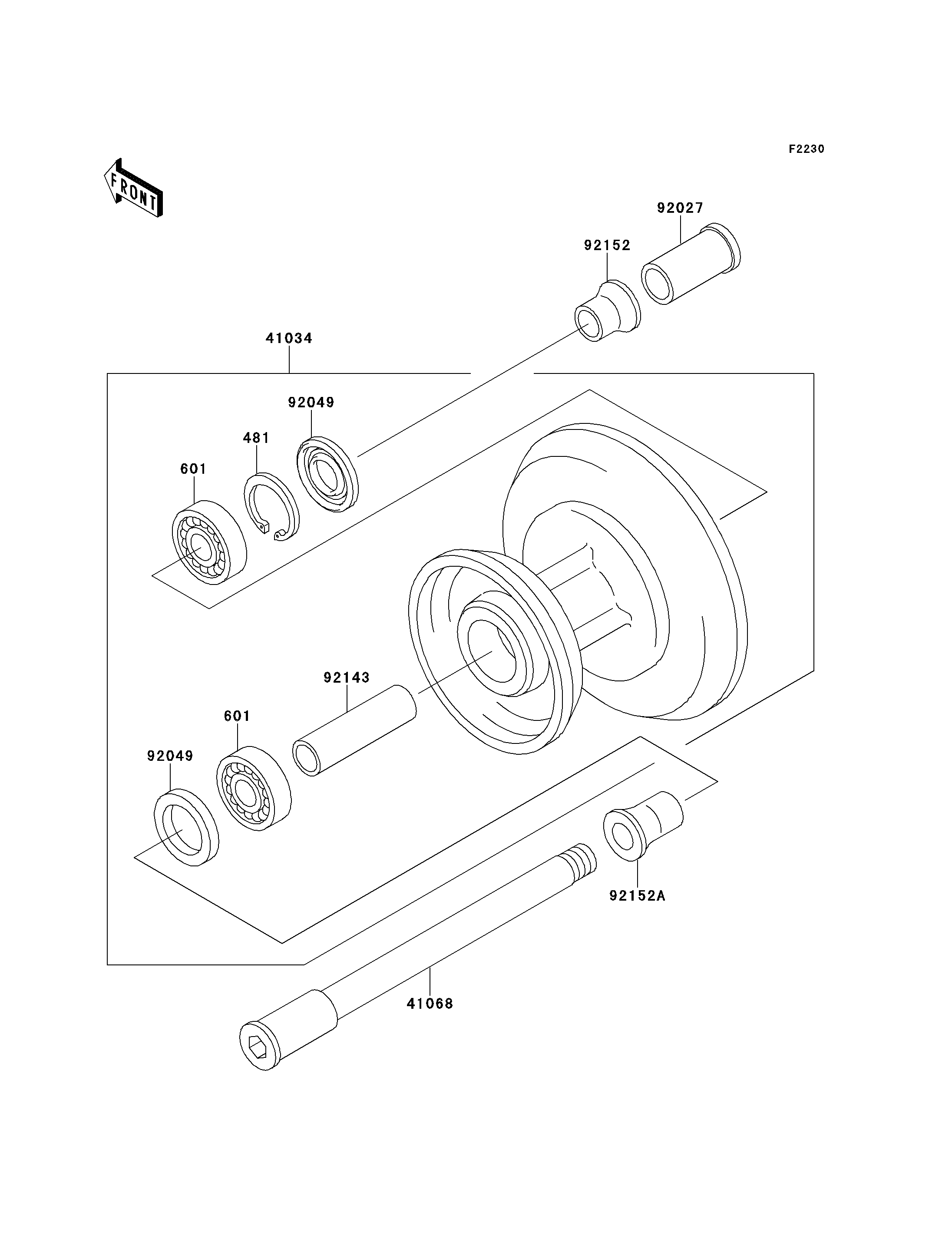

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CIRCLIP-TYPE-C,35MM | 481 | 481J3500 | 1 | ||
| BEARING-BALL,#6202UG | 601 | 601B6202UG | 2 | ||
| DRUM-ASSY,FRONT BRAKE | 41034 | 41034-1297 | 1 | ||
| AXLE,FR | 41068 | 41068-1175 | 1 | ||
| COLLAR,FR AXLE,L=36.5 | 92027 | 92027-1726 | 1 | ||
| SEAL-OIL,DD20357 | 92049 | 92049-1095 | 2 | ||
| COLLAR,15.1X20X70 | 92143 | 92143-1185 | 1 | ||
| COLLAR,FR AXLE,RH,L=24 | 92152 | 92152-1135 | 1 | ||
| COLLAR,FR AXLE,LH,L=34 | 92152A | 92152-1136 | 1 |
| CIRCLIP-TYPE-C,35MM | |
| REF # | 481 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-BALL,#6202UG | |
| REF # | 601 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DRUM-ASSY,FRONT BRAKE | |
| REF # | 41034 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| AXLE,FR | |
| REF # | 41068 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,FR AXLE,L=36.5 | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,DD20357 | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,15.1X20X70 | |
| REF # | 92143 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,FR AXLE,RH,L=24 | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,FR AXLE,LH,L=34 | |
| REF # | 92152A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
