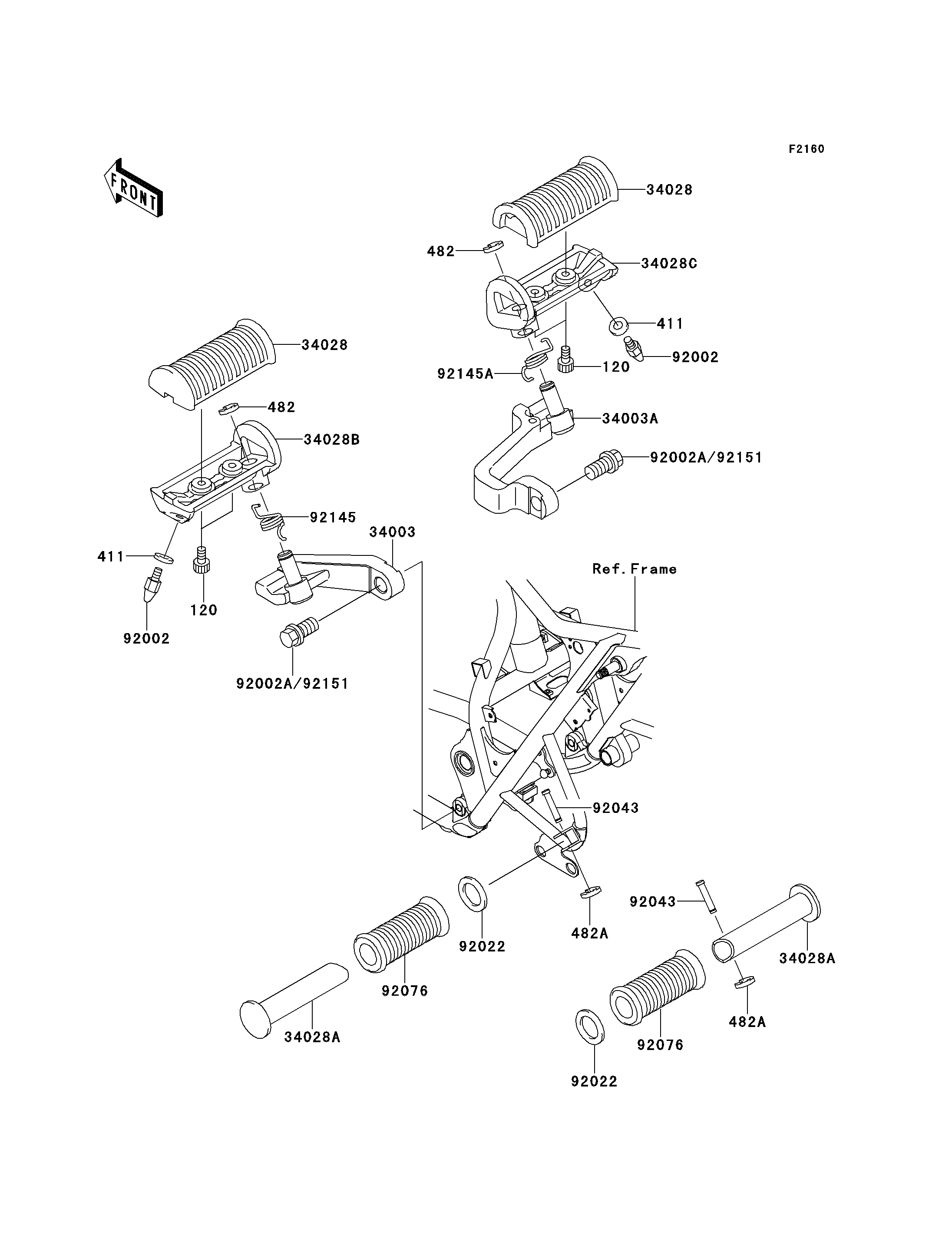

2000 W650 - Footrests

DOWNLOAD PDF
SELECT A NEW PART
120
120
411
411
482
482
482A
482A
34003
34003A
34028
34028
34028A
34028A
34028B
34028C
92002
92002
92002A
92002A
92022
92022
92043
92043
92076
92076
92145
92145A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET 120 120S0512 4
WASHER-PLAIN,6MM,BLACK 411 411F0600 2
CIRCLIP-TYPE-E,10MM 482 482L0100 2
CIRCLIP-TYPE-E,5MM 482A 482L5000 2
HOLDER-STEP,FR,LH 34003 34003-1491 1
HOLDER-STEP,FR,RH 34003A 34003-1492 1
STEP,RUBBER 34028 34028-1372 2
STEP,RR 34028A 34028-1373 2
STEP,FR,LH 34028B 34028-1477 1
STEP,FR,RH 34028C 34028-1478 1
BOLT,BANK SENSOR 92002 92002-1742 2
BOLT,FLANGED,12X30 92002A 92002-1925 2
WASHER,20X30X2.3 92022 92022-1568 2
PIN,6X30 92043 92043-1607 2
DAMPER 92076 92076-020 2
SPRING,STEP RETURN,LH 92145 92145-1217 1
SPRING,STEP RETURN,RH 92145A 92145-1218 1
