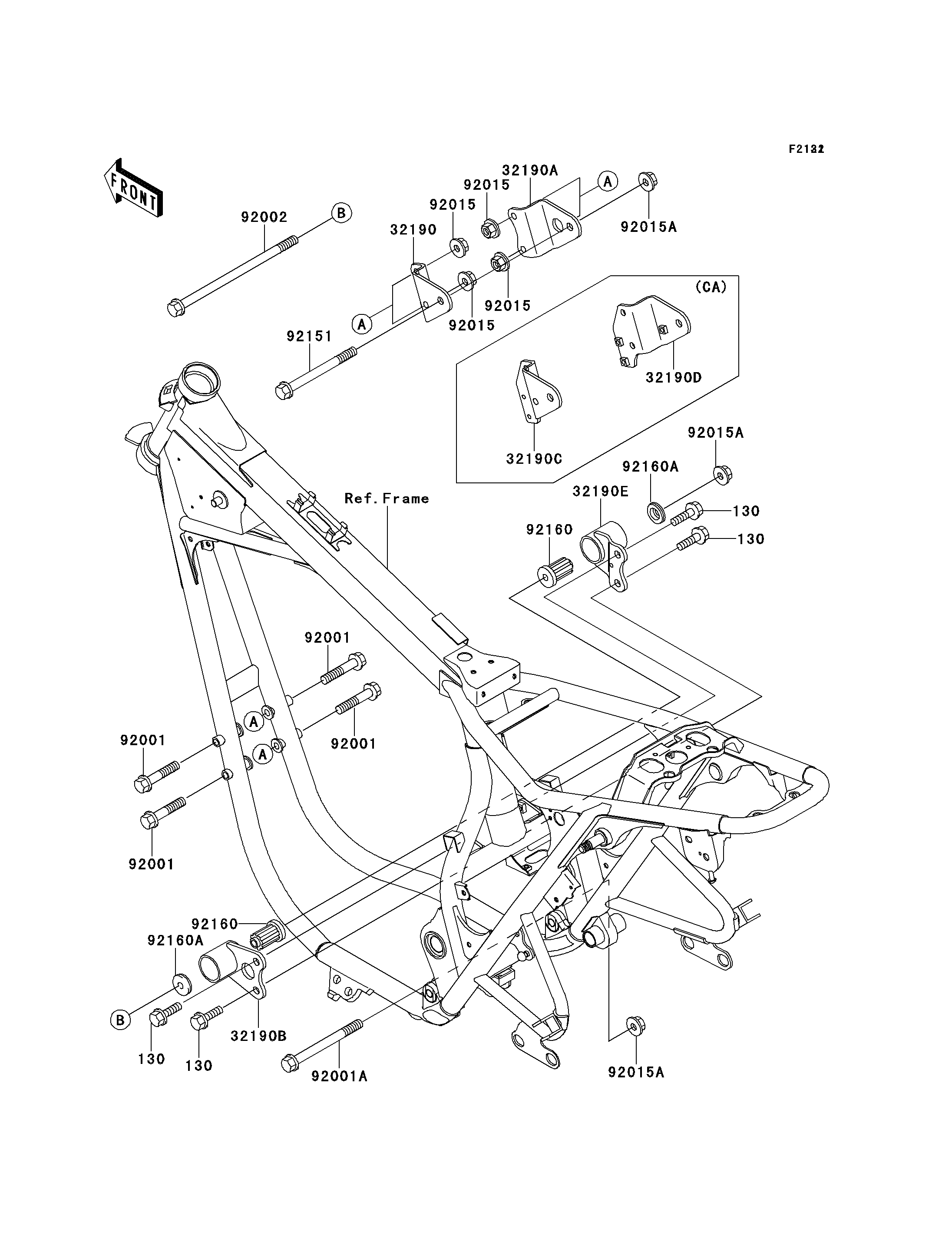

Parts Diagrams |
130
130
130
130
32190B
32190E
92001
92001
92001
92001
92001A
92002
92015
92015
92015
92015
92015A
92015A
92015A
92151
92160
92160
92160A
92160A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,8X16,BLACK | 130 | 130J0816 | 4 | ||
| BRACKET-ENGINE,RR,UPP,LH | 32190B | 32190-1173 | 1 | ||
| BRACKET-ENGINE,RR,UPP,RH | 32190E | 32190-1226 | 1 | ||
| BOLT,FLANGED,8X60,BLACK | 92001 | 92001-1615 | 4 | ||
| BOLT,FLANGED,10X160,BLACK | 92001A | 92001-1953 | 1 | ||
| BOLT,FLANGED,10X230 | 92002 | 92002-1531 | 1 | ||
| NUT,FLANGED,8MM,BLACK | 92015 | 92015-1183 | 4 | ||
| NUT,LOCK,10MM | 92015A | 92015-1522 | 3 | ||
| BOLT,FLANGED,10X135 | 92151 | 92151-1783 | 1 | ||
| DAMPER,ENGINE MOUNT | 92160 | 92160-1483 | 2 | ||
| DAMPER | 92160A | 92160-1984 | 2 | ||
| BRACKET-ENGINE,FR,LH | 32190 | 32190-1171 | 1 | CNUS | |
| BRACKET-ENGINE,FR,RH | 32190A | 32190-1172 | 1 | CNUS | |
| BRACKET-ENGINE,FR,LH | 32190C | 32190-1195 | 1 | CA | |
| BRACKET-ENGINE,FR,RH | 32190D | 32190-1196 | 1 | CA |
