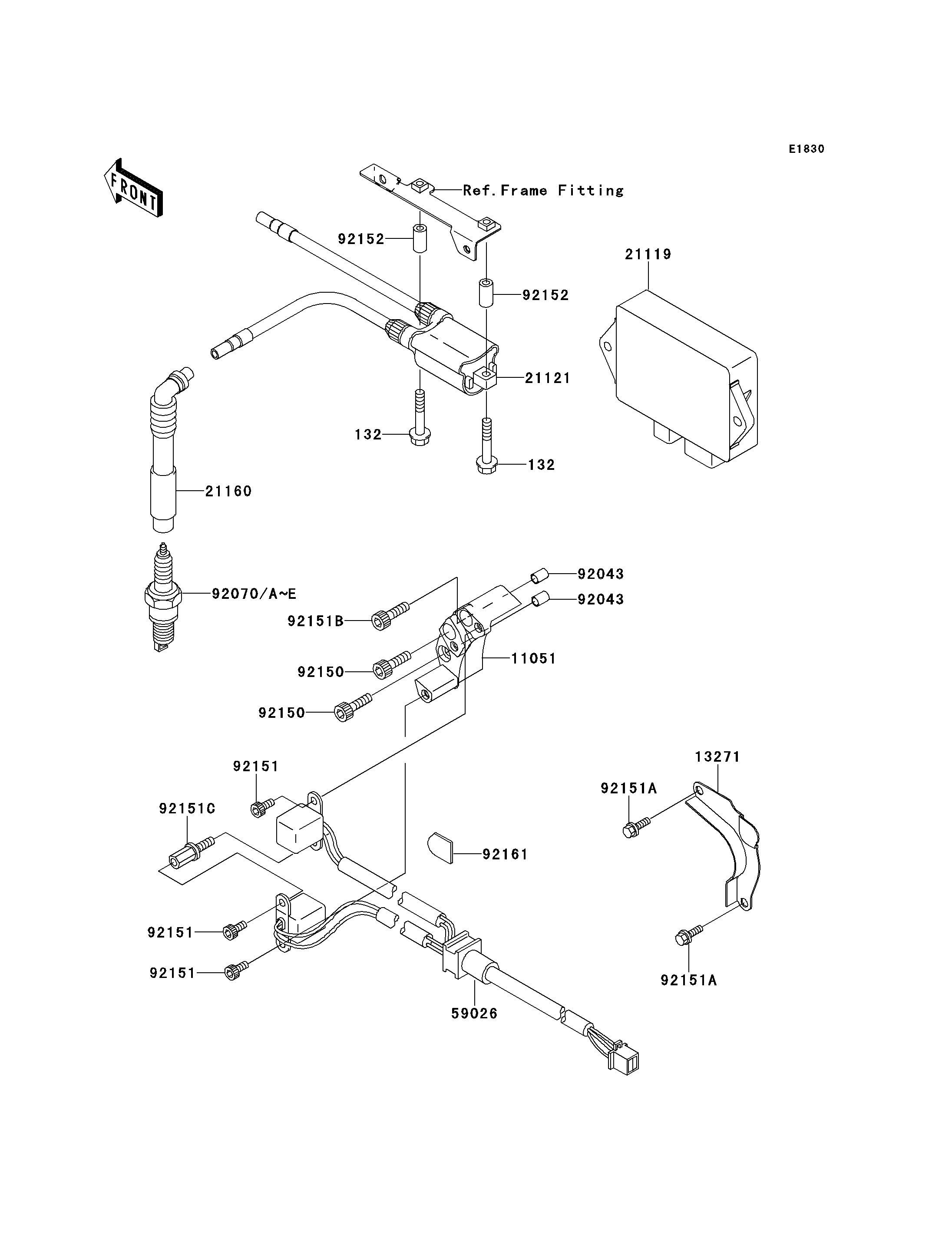

2000 W650 - Ignition System

DOWNLOAD PDF
SELECT A NEW PART
132
132
11051
13271
21119
21121
21160
59026
92043
92043
92070
92070A
92070B
92070C
92070D
92070E
92150
92150
92151
92151
92151
92151A
92151A
92151B
92151C
92152
92152
92161
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132J0645 2
BRACKET,PULSING COIL 11051 11051-1213 1
PLATE 13271 13271-1189 1
IGNITER 21119 21119-1549 1
COIL-IGNITION 21121 21121-1283 1
CAP-ASSY-PLUG 21160 21160-1081 2
COIL-PULSING 59026 59026-1148 1
PIN,6.2X8X14 92043 92043-1263 2
PLUG-SPARK,U27ESR-N(ND) 92070 2 (OPTION)
PLUG-SPARK,CR8E(NGK) 92070A 92070-1169 2
PLUG-SPARK,U24ESR-N(ND) 92070B 2 (LOCAL PROCUREMENT ITEM)
PLUG-SPARK,CR7E(NGK) 92070C 92070-1209 2 (OPTION)
PLUG-SPARK,U22ESR-N(ND) 92070D 2 (OPTION)
PLUG-SPARK,CR9E(NGK) 92070E 92070-1266 2 (OPTION)
BOLT,SOCKET,6X40 92150 92150-1653 2
BOLT,SOCKET,5X12 92151 92151-1118 3
BOLT,6X10 92151A 92151-1389 2
BOLT,SOCKET,6X45 92151B 92151-1471 1
BOLT 92151C 92151-1574 1
COLLAR,6.8X13X25 92152 92152-1200 2
DAMPER 92161 92161-1076 1
