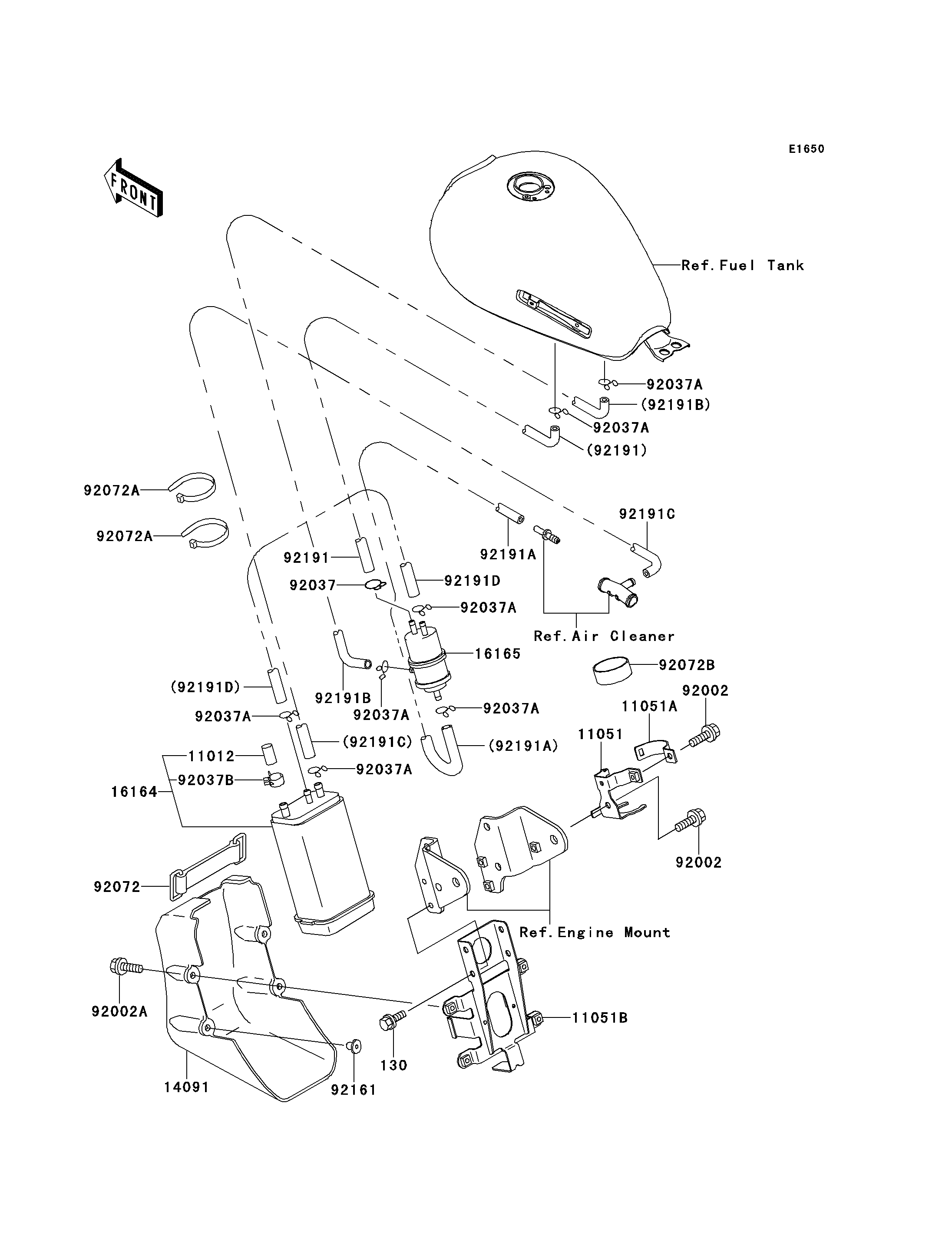

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,6X14,BLACK | 130 | 130J0614 | 4 | CA | |
| CAP,CANISTER | 11012 | 11012-1388 | 1 | CA | |
| BRACKET,SEPARATOR | 11051 | 11051-1447 | 1 | CA | |
| BRACKET,SEPARATOR | 11051A | 11051-1448 | 1 | CA | |
| BRACKET,CANISTER | 11051B | 11051-1970 | 1 | CA | |
| COVER,CANISTER | 14091 | 14091-1279 | 1 | CA | |
| CANISTER | 16164 | 16164-1073 | 1 | CA | |
| SEPARATOR | 16165 | 16165-1001 | 1 | CA | |
| BOLT,6X12 | 92002 | 92002-1569 | 2 | CA | |
| BOLT,6X16 | 92002A | 92002-1933 | 2 | CA | |
| CLAMP,HOSE | 92037 | 92037-1104 | 1 | CA | |
| CLAMP,TUBE | 92037A | 92037-147 | 7 | CA | |
| CLAMP,CANISTER | 92037B | 92037-1512 | 1 | CA | |
| BAND,L=90 | 92072 | 92072-045 | 1 | CA | |
| BAND,L=250 | 92072A | 92072-1237 | 2 | CA | |
| BAND | 92072B | 92072-1393 | 1 | CA | |
| DAMPER | 92161 | 92161-1160 | 2 | CA | |
| TUBE,BLUE | 92191 | 92191-1507 | 1 | CA | |
| TUBE,WHITE | 92191A | 92191-1508 | 1 | CA | |
| TUBE,RED | 92191B | 92191-1509 | 1 | CA | |
| TUBE,GREEN | 92191C | 92191-1537 | 1 | CA | |
| TUBE,BLUE | 92191D | 92191-1538 | 1 | CA |
