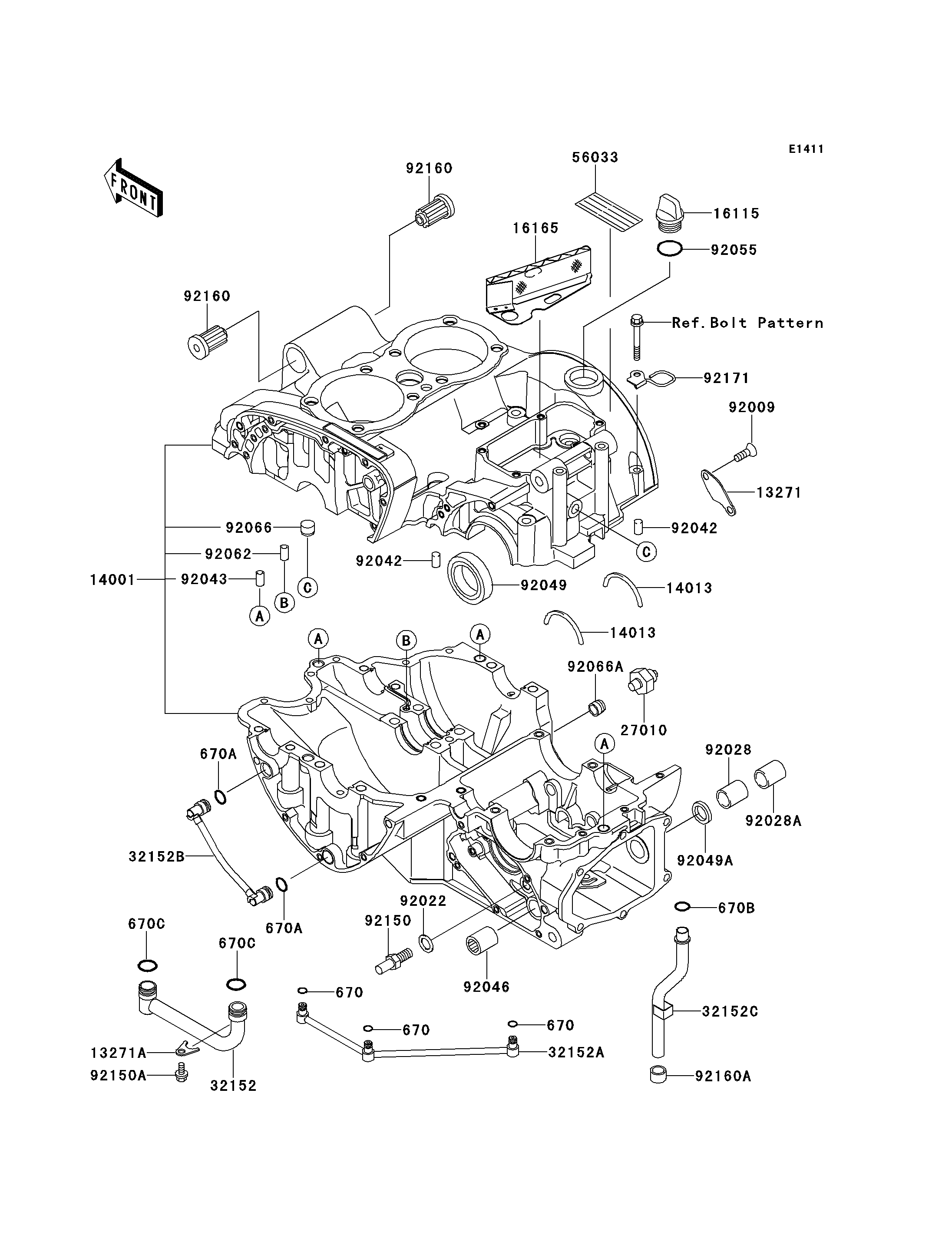

2000 W650 - Crankcase

DOWNLOAD PDF
SELECT A NEW PART
670
670
670
670A
670A
670B
670C
670C
13271
13271A
14001
14013
14013
16115
16165
27010
32152
32152A
32152B
32152C
56033
92009
92022
92028
92028A
92042
92042
92043
92046
92049
92049A
92055
92062
92066
92066A
92150
92150A
92160
92160
92160A
92171
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
O RING 670 670D1505 3
O RING 670A 670D2010 2
O RING,12MM 670B 670D2012 1
O RING,14MM 670C 670D2014 2
PLATE,BREATHER 13271 13271-1186 1
PLATE,OIL PIPE 13271A 13271-1187 1
SET-CRANKCASE 14001 14001-1260 1
RING-POSITION,T=1.98 14013 14013-1004 2
CAP-OIL FILLER 16115 16115-1009 1
SEPARATOR,BREATHER 16165 16165-1068 1
SWITCH,OIL PRESSURE 27010 27010-1313 1
PIPE,MAIN OIL 32152 32152-1902 1
PIPE,TRANSMISSION OIL 32152A 32152-1903 1
PIPE,BALANCER OIL 32152B 32152-1904 1
PIPE,BREATHER OIL 32152C 32152-1905 1
LABEL-MANUAL,OIL CAPACITY 56033 56033-1155 1
SCREW,6X12 92009 92009-1880 2
WASHER,10X15X1.0 92022 92022-1973 1
BUSHING,KICK LEVER,INSIDE 92028 92028-1899 1
BUSHING,KICK LEVER,OUTSIDE 92028A 92028-1900 1
PIN,DOWEL,6X16 92042 92042-016 2
PIN,DOWEL,10X14 92043 92043-1037 3
BEARING-NEEDLE,HK1312 92046 92046-1148 1
SEAL-OIL,HTC40628 92049 92049-1501 1
SEAL-OIL,KICK PEDAL 92049A 92049-1523 1
RING-O,31.7X2.4 92055 92055-049 1
NOZZLE,6X8,BLACK 92062 92062-1079 1
PLUG,10.5MM 92066 92066-1355 1
PLUG,MAIN GALLERY 92066A 92066-1530 1
BOLT,RETURN SPRING 92150 92150-1803 1
BOLT,6X12 92150A 92150-1826 1
DAMPER,ENGINE MOUNT 92160 92160-1483 2
DAMPER,BREATHER PIPE 92160A 92160-1986 1
CLAMP,DRAIN TUBE 92171 92171-1124 1
