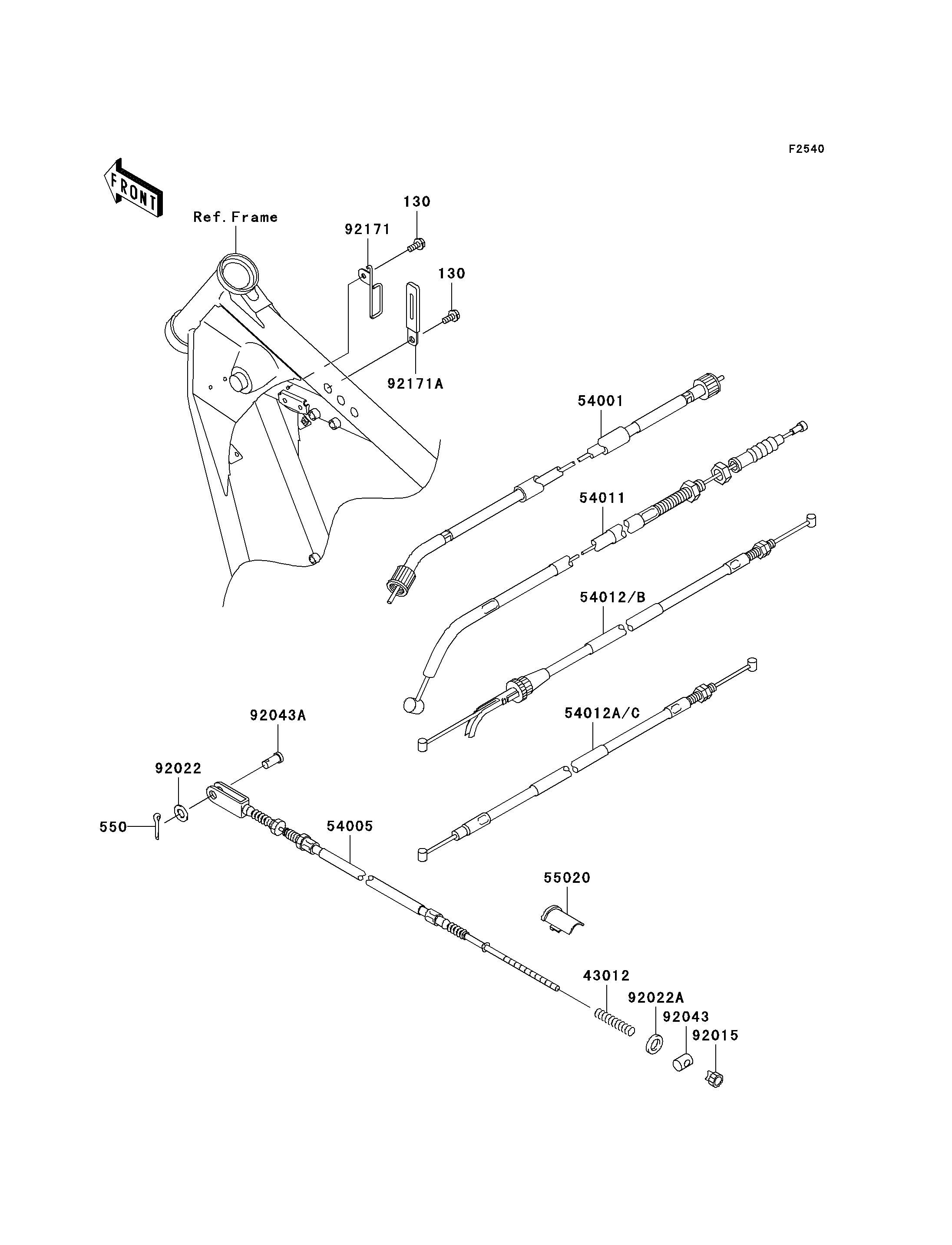

Parts Diagrams |
130
130
550
43012
54001
54005
54011
54012B
54012C
55020
92015
92022
92022A
92043
92043A
92171
92171A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,6X14,BLACK | 130 | 130J0614 | 2 | ||
| PIN-COTTER,2.0X18 | 550 | 550D2018 | 1 | ||
| SPRING,BRAKE ROD | 43012 | 43012-001 | 1 | ||
| CABLE-SPEEDMETER | 54001 | 54001-1244 | 1 | ||
| CABLE-BRAKE | 54005 | 54005-1192 | 1 | ||
| CABLE-CLUTCH | 54011 | 54011-1404 | 1 | ||
| CABLE-THROTTLE,OPENING | 54012B | 54012-1625 | 1 | ||
| CABLE-THROTTLE,CLOSING | 54012C | 54012-1626 | 1 | ||
| GUARD,REAR BRAKE CABLE | 55020 | 55020-1687 | 1 | ||
| NUT,BRAKE ROD | 92015 | 92015-042 | 1 | ||
| WASHER,8.5X16X1.2 | 92022 | 92022-1582 | 1 | ||
| WASHER,6.3X10.2X1.6 | 92022A | 92022-1588 | 1 | ||
| PIN,BRAKE ROD | 92043 | 92043-065 | 1 | ||
| PIN,8X16 | 92043A | 92043-1013 | 1 | ||
| CLAMP,CLUTCH CABLE | 92171 | 92171-1063 | 1 | ||
| CLAMP,WIRING HARNESS,L=60 | 92171A | 92171-1425 | 1 |
