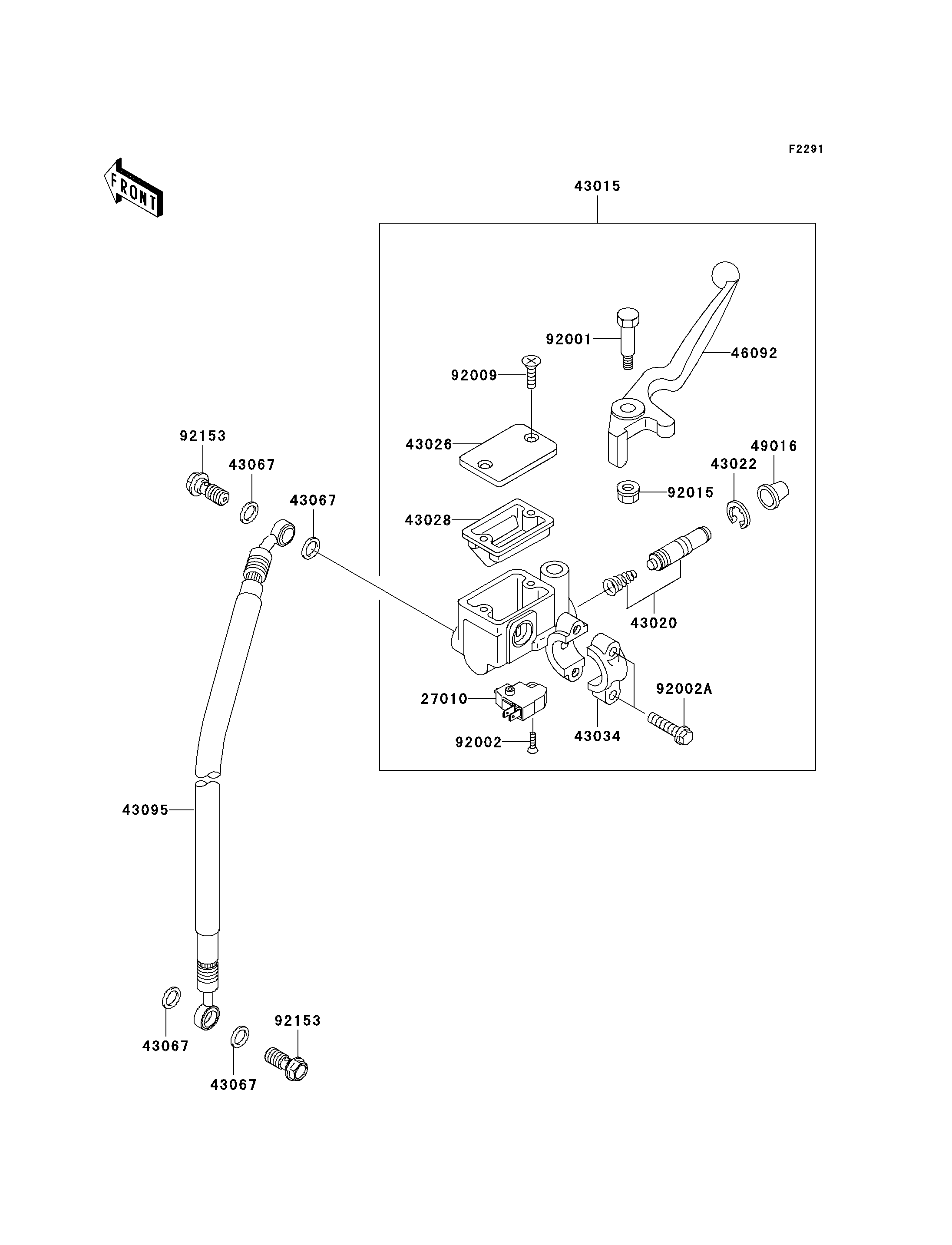

2001 Eliminator 125 - Front Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
27010
43015
43020
43022
43026
43028
43034
43067
43067
43067
43067
43095
46092
49016
92001
92002
92002A
92009
92015
92153
92153
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SWITCH,BRAKE 27010 27010-0025 1
CYLINDER-ASSY-MASTER,FR 43015 43015-1669 1
PISTON-COMP-BRAKE 43020 43020-1095 1
STOPPER-BRAKE,PISTON 43022 43022-1010 1
CAP-BRAKE 43026 43026-1074 1
DIAPHRAGM 43028 43028-1061 1
HOLDER-BRAKE,MASTER CYLINDER 43034 43034-1016 1
WASHER,10.5X15X1.5 43067 43067-001 4
HOSE-BRAKE,FR 43095 43095-1182 1
LEVER-GRIP,FRONT BRAKE 46092 46092-1203 1
COVER-SEAL,MASTER CYLINDER 49016 49016-1044 1
BOLT,FRONT BRAKE LEVER 92001 92001-1728 1
BOLT,SCREW,4X12 92002 92002-1323 1
BOLT 92002A 92002-1894 2
SCREW,4MM 92009 92009-1458 2
NUT,FLANGED,6MM,BLACK 92015 92015-1233 1
BOLT,OIL,L=23 92153 92153-0627 2
