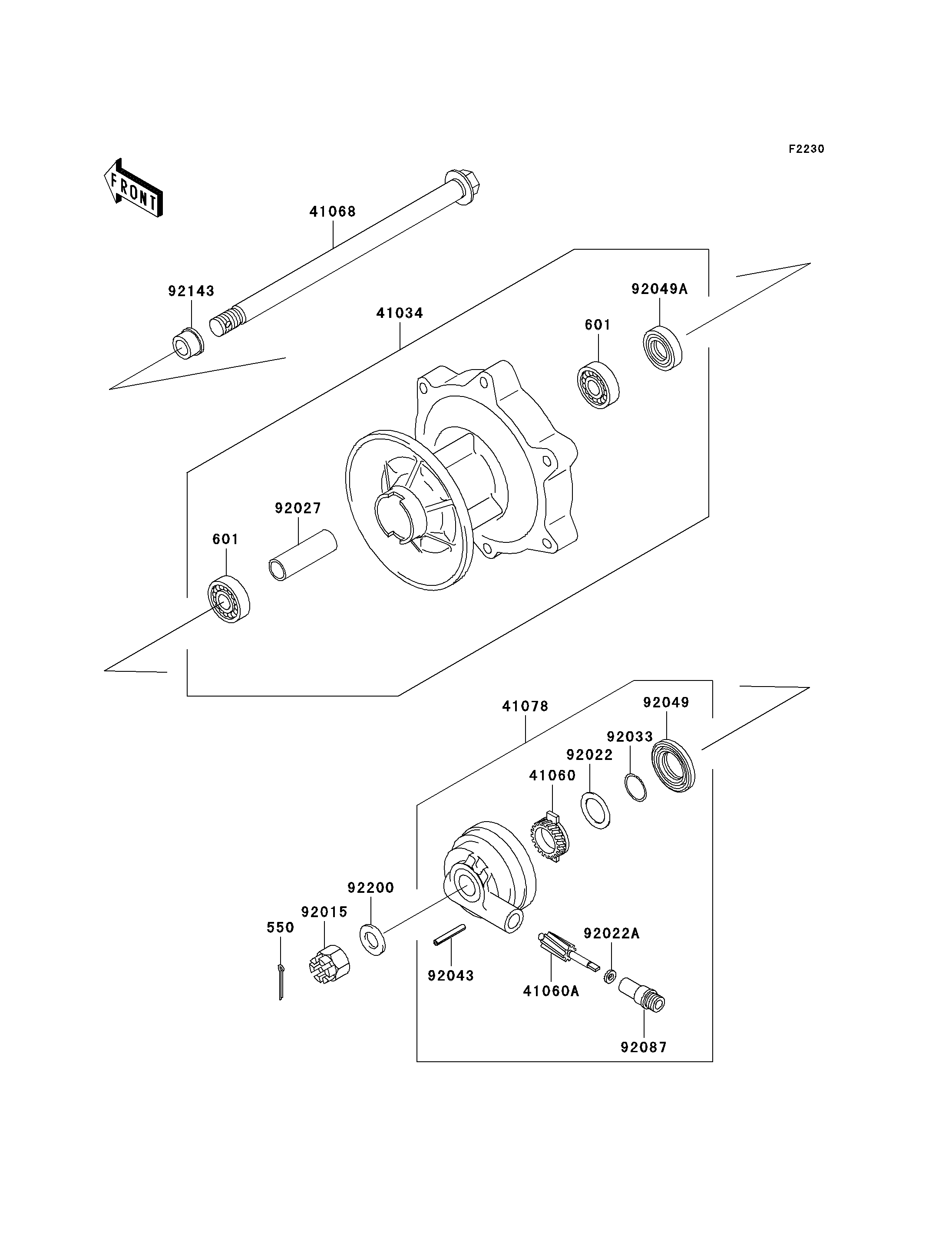

2001 Eliminator 125 - Front Wheel

DOWNLOAD PDF
SELECT A NEW PART
550
601
601
41034
41060
41060A
41068
41078
92015
92022
92022A
92027
92033
92043
92049
92049A
92087
92143
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PIN-COTTER,3X25 550 550S3025 1
BEARING-BALL,#6202G 601 601B6202G 2
DRUM-ASSY,FRONT BRAKE 41034 41034-1312 1
GEAR-METER SCREW,20T 41060 41060-1133 1
GEAR-METER SCREW,8T 41060A 41060-1134 1
AXLE,FR 41068 41068-1421 1
CASE-ASSY-METER GEAR 41078 41078-1087 1
NUT,CASTLE,14MM 92015 92015-1765 1
WASHER,20X29X1.0 92022 92022-1510 1
WASHER,5X9.5X0.8 92022A 92022-1511 1
COLLAR,L=70 92027 92027-1866 1
RING-SNAP,19MM 92033 92033-1160 1
PIN,SPRING,2X14 92043 92043-1220 1
SEAL-OIL,SD42 50 6 92049 92049-1173 1
SEAL-OIL,22X35X8 92049A 92049-1348 1
BUSHING-METER GEAR 92087 92087-1051 1
COLLAR,FR AXLE,L=23.5 92143 92143-1949 1
WASHER,15X30X3.2 92200 92200-1366 1
