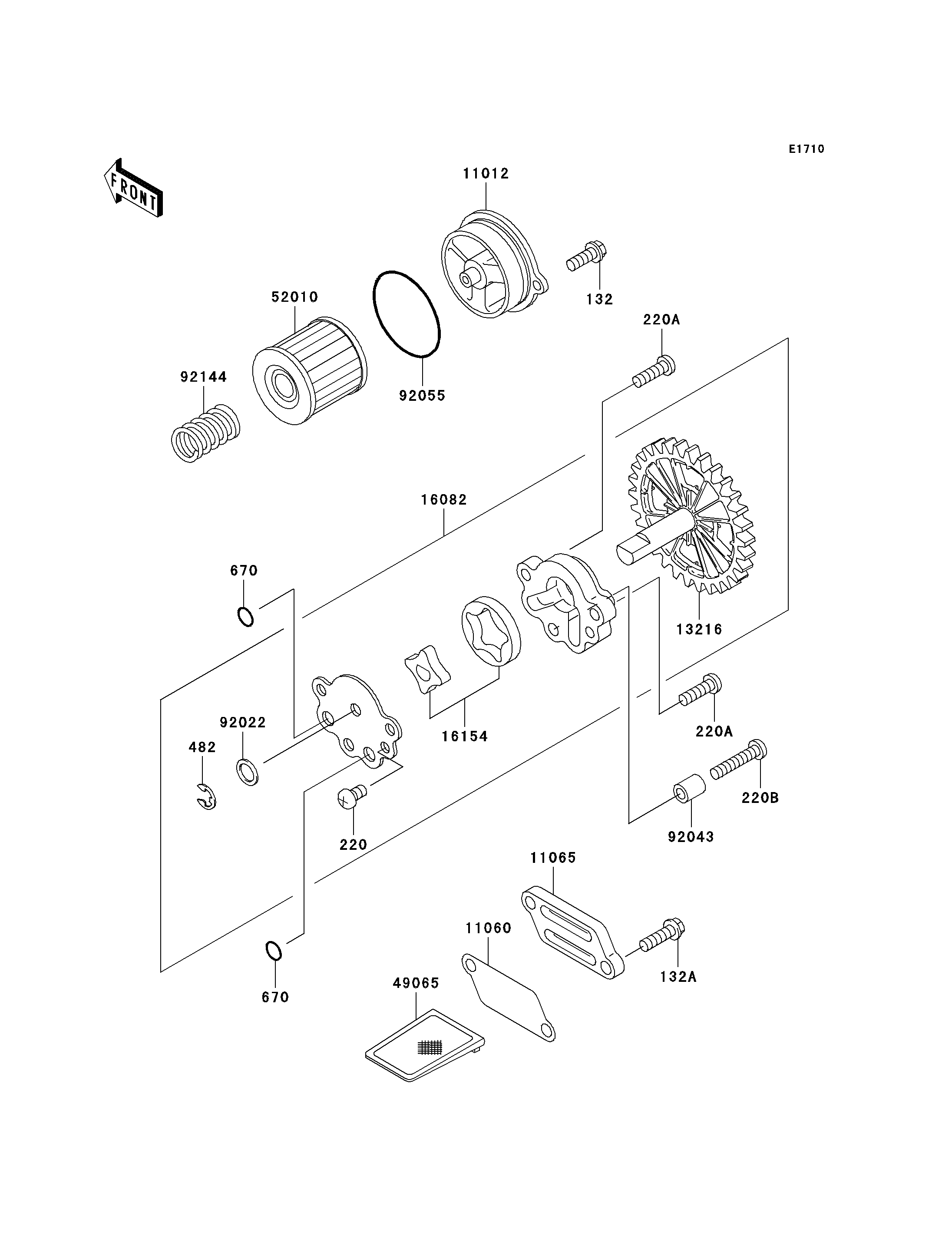

2001 Eliminator 125 - Oil Pump/Oil Filter

DOWNLOAD PDF
SELECT A NEW PART
132
132A
220
220A
220A
220B
482
670
670
11012
11060
11065
13216
16082
16154
49065
52010
92022
92043
92055
92144
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X16 132 132V0616 2
BOLT-FLANGED-SMALL 132A 132V0620 2
SCREW-PAN-CROS,6X10 220 220B0610 1
SCREW-PAN-CROS,6X20 220A 220B0620 2
SCREW-PAN-CROS,6X30 220B 220B0630 1
CIRCLIP-TYPE-E,6MM 482 482J6000 1
O RING,10MM 670 670B1510 2
CAP 11012 11012-1971 1
GASKET,OIL FILTER 11060 11060-1768 1
CAP,OIL FILTER 11065 11065-1138 1
GEAR-COMP,OIL PUMP 13216 13216-1167 1
PUMP-ASSY-OIL 16082 16082-1153 1
ROTOR-PUMP 16154 16154-1077 1
FILTER-OIL 49065 49065-1075 1
ELEMENT-OIL FILTER 52010 52010-1053 1
WASHER,10.2X14.5X1.0 92022 92022-1181 1
PIN,6.2X8X14 92043 92043-1263 1
RING-O,52.6X2.4 92055 92055-1577 1
SPRING 92144 92144-1761 1
