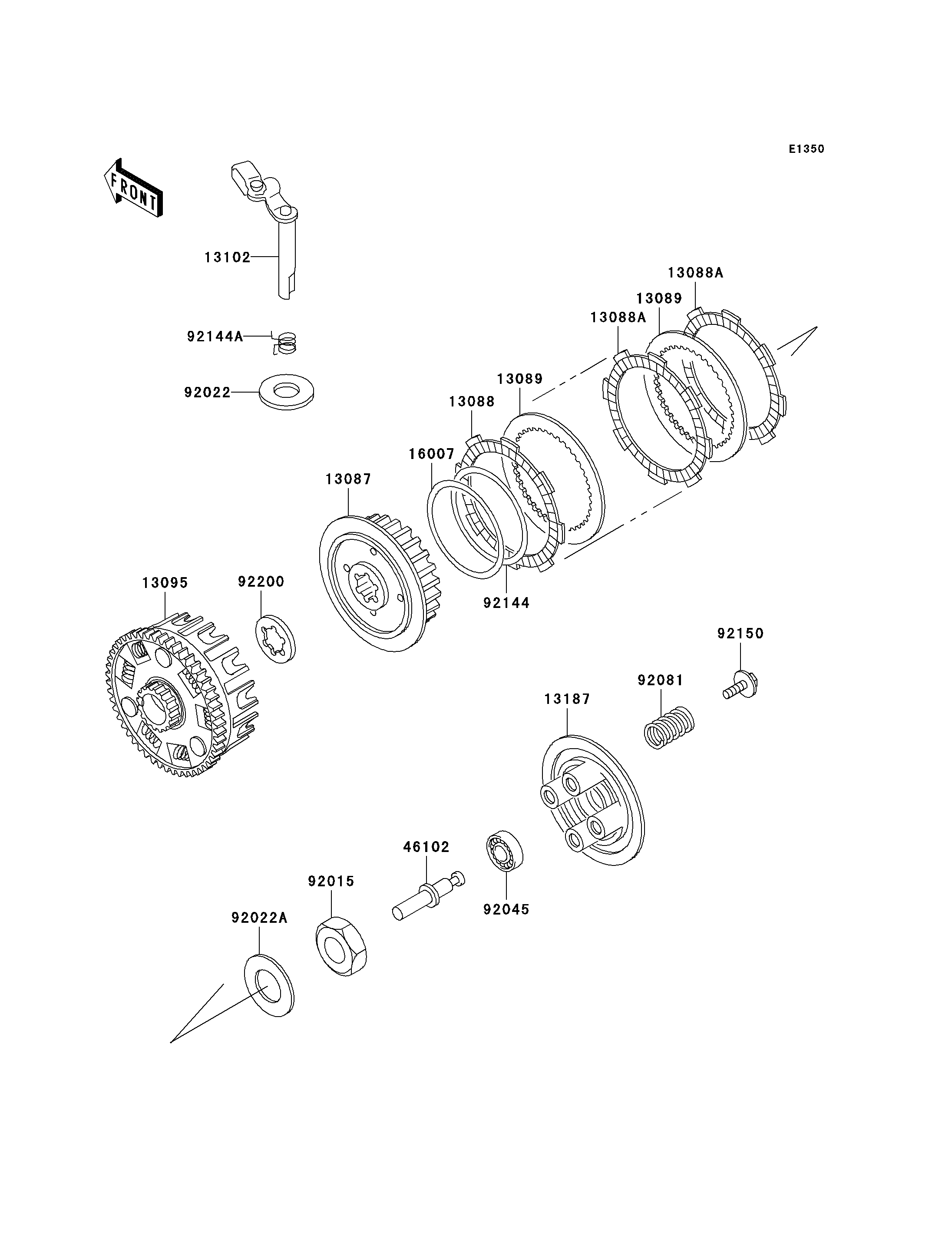

2001 Eliminator 125 - Clutch

DOWNLOAD PDF
SELECT A NEW PART
13087
13088
13088A
13088A
13089
13089
13095
13102
13187
16007
46102
92015
92022
92022A
92045
92081
92144
92144A
92150
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HUB-CLUTCH 13087 13087-1169 1
PLATE-FRICTION 13088 13088-1085 1
PLATE-FRICTION 13088A 13088-1098 4
PLATE-CLUTCH 13089 13089-1076 4
HOUSING-COMP-CLUTCH 13095 13095-1388 1
RELEASE-COMP-CLUTCH 13102 13102-1139 1
PLATE-CLUTCH OPERATING 13187 13187-1072 1
SEAT-SPRING 16007 16007-1162 1
ROD 46102 46102-1402 1
NUT,LOCK,16MM 92015 92015-072 1
WASHER,12.5X21X1.2 92022 92022-072 1
WASHER,16.3X29X1.75 92022A 92022-1356 1
BEARING-BALL,6001C3ML01 92045 92045-1235 1
SPRING,CLUTCH 92081 92081-1492 4
SPRING 92144 92144-1522 1
SPRING,RELEASE SHAFT 92144A 92144-1995 1
BOLT 92150 92150-1715 4
WASHER 92200 92200-1440 1
