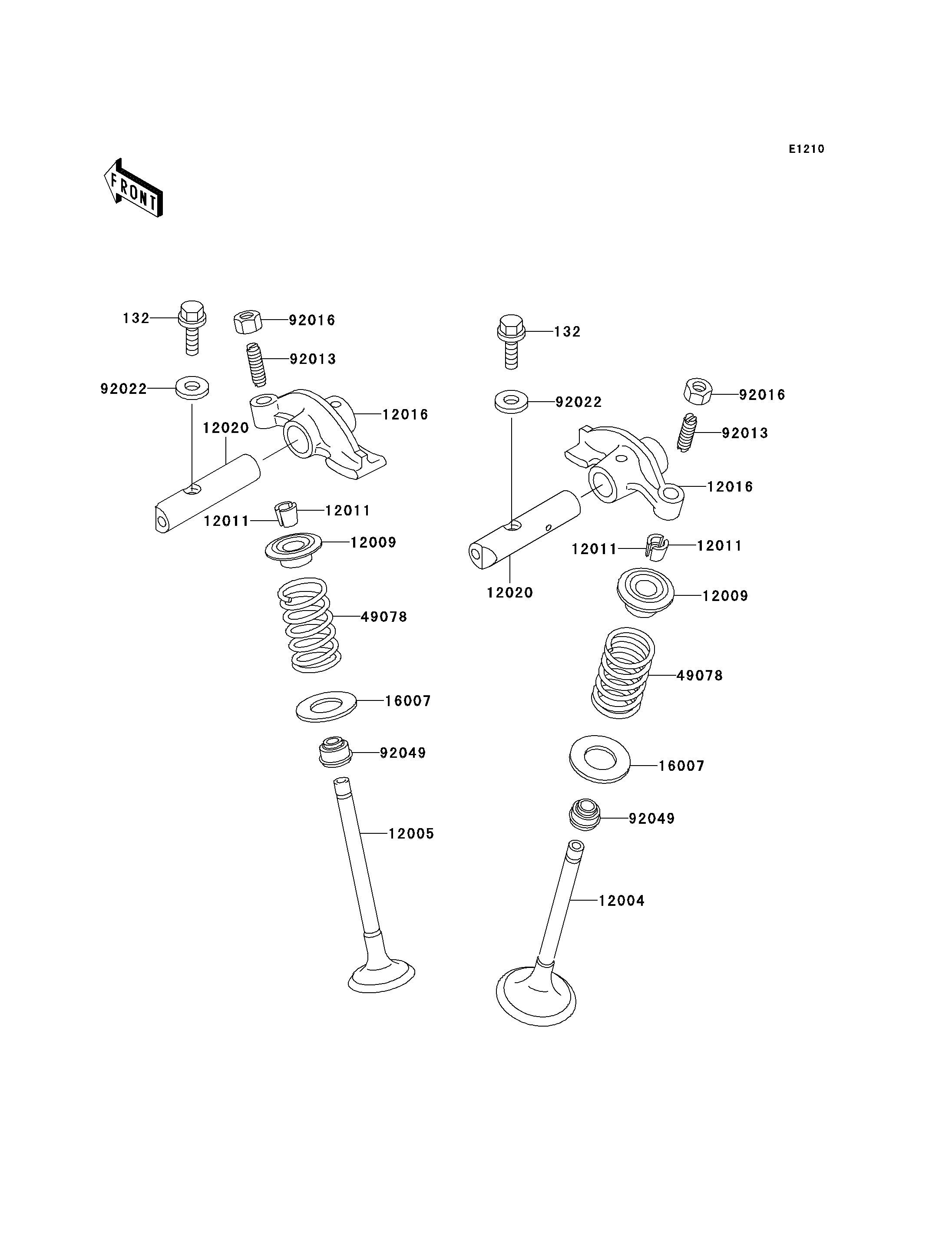

2001 Eliminator 125 - Valve(s)

DOWNLOAD PDF
SELECT A NEW PART
132
132
12004
12005
12009
12009
12011
12011
12011
12011
12016
12016
12020
12020
16007
16007
49078
49078
92013
92013
92016
92016
92022
92022
92049
92049
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132V0625 2
VALVE-INTAKE 12004 12004-1134 1
VALVE-EXHAUST 12005 12005-1262 1
RETAINER-VALVE SPRING,INTAKE 12009 12009-1074 2
COLLET 12011 12011-1053 4
ARM-ROCKER 12016 12016-1115 2
SHAFT-ROCKER 12020 12020-1074 2
SEAT-SPRING 16007 16007-1159 2
SPRING-ENGINE VALVE 49078 49078-1152 2
SCREW,6MM 92013 92013-009 2
NUT,6MM 92016 92016-061 2
WASHER,6.1X12X1 92022 92022-077 2
SEAL-OIL 92049 92049-1349 2
