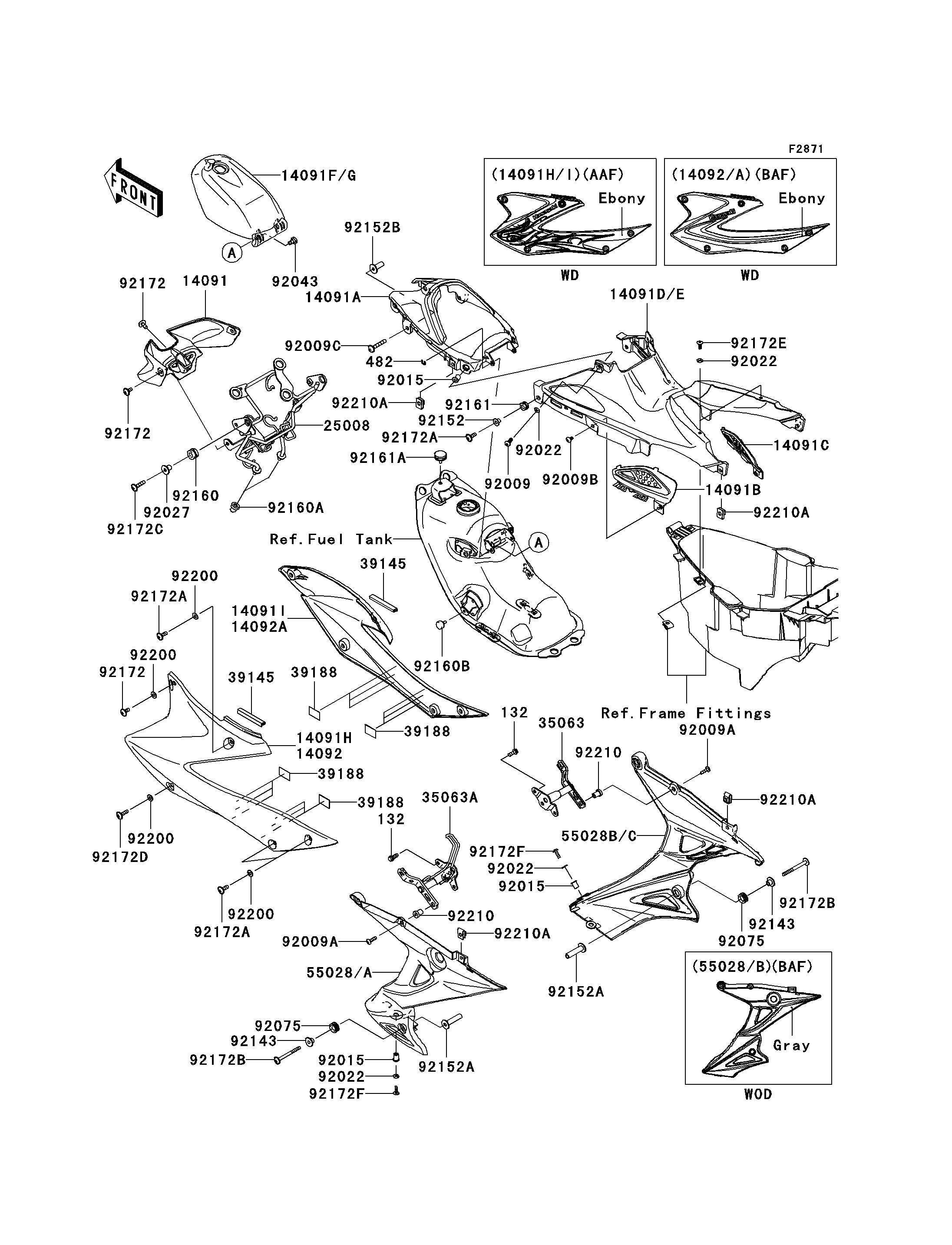

2010 Fury 125R - Cowling

DOWNLOAD PDF
SELECT A NEW PART
14091
14091
14091A
14091A
14091B
14091B
14091C
14091C
14091D
14091D
14091F
14091F
14091H
14091H
14091I
14091I
25008
25008
35063
35063
35063A
35063A
39145
39145
39145
39145
39188
39188
39188
39188
39188
39188
39188
39188
55028
55028
55028B
55028B
92009
92009
92009A
92009A
92009A
92009A
92009B
92009B
92009C
92009C
92015
92015
92015
92015
92015
92015
92022
92022
92022
92022
92022
92022
92022
92022
92027
92027
92043
92043
92075
92075
92075
92075
92143
92143
92143
92143
92152
92152
92152A
92152A
92152A
92152A
92152B
92152B
132
132
132
132
482
482
92160
92160
92160A
92160A
92160B
92160B
92161
92161
92161A
92161A
92172
92172
92172
92172
92172
92172
92172A
92172A
92172A
92172A
92172A
92172A
92172B
92172B
92172B
92172B
92172C
92172C
92172D
92172D
92172E
92172E
92172F
92172F
92172F
92172F
92200
92200
92200
92200
92200
92200
92200
92200
92210
92210
92210
92210
92210A
92210A
92210A
92210A
92210A
92210A
92210A
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,HORN 14091 14091-0777 1
COVER,FUEL TANK,OUTER 14091A 14091-0783 1
COVER,LEG,LH 14091B 14091-0888 1
COVER,LEG,RH 14091C 14091-0889 1
COVER,LEG,M.B.GRAY 14091D 14091-1720-146 1
COVER,FUEL TANK,M.B.GRAY 14091F 14091-1723-146 1
COVER,SHROUD,LH,EBONY 14091H 14091-5487-QE 1
COVER,SHROUD,RH,EBONY 14091I 14091-5488-QE 1
BRACKET-METER 25008 25008-0030 1
STAY,RH 35063 35063-0517 1
STAY,LH 35063A 35063-0614 1
TRIM-SEAL,L=70 39145 39145-0038 2
TAPE 39188 39188-0007 12
COWLING,LWR,LH,M.B.GRAY 55028 55028-0269-146 1
COWLING,LWR,RH,M.B.GRAY 55028B 55028-0270-146 1
SCREW,5X18 92009 92009-1655 2
SCREW,5X20,BLACK 92009A 92009-1656 2
SCREW,TAPPING 5X10 92009B 92009-1831 2
SCREW,6X40 92009C 92009-1898 2
NUT,WELL,5MM 92015 92015-1757 4
WASHER,NYLON,5.3X11.5X1.5 92022 92022-1521 6
COLLAR,L=14.1 92027 92027-1920 2
PIN 92043 92043-0158 2
DAMPER 92075 92075-1634 2
COLLAR,L=9.6 92143 92143-1016 2
COLLAR 92152 92152-0035 2
COLLAR 92152A 92152-0607 2
COLLAR 92152B 92152-0608 2
BOLT-FLANGED-SMALL,6X16 132 132BB0616 4
CIRCLIP-TYPE-E 482 482EA5000 2
DAMPER 92160 92160-1167 2
DAMPER 92160A 92160-1303 2
DAMPER,BRAKE STOPPER 92160B 92160-1821 2
DAMPER 92161 92161-0031 2
DAMPER 92161A 92161-0581 1
SCREW,6X14 92172 92172-0055 5
SCREW,6X18 92172A 92172-0192 8
SCREW,6X65 92172B 92172-0256 2
SCREW,6X28 92172C 92172-0348 2
SCREW,6X22 92172D 92172-0373 2
SCREW,5X14 92172E 92172-0461 2
SCREW,5X16 92172F 92172-0462 2
WASHER,6.5X14X1 92200 92200-1388 10
NUT,5MM 92210 92210-0001 2
NUT,6MM 92210A 92210-0218 6
