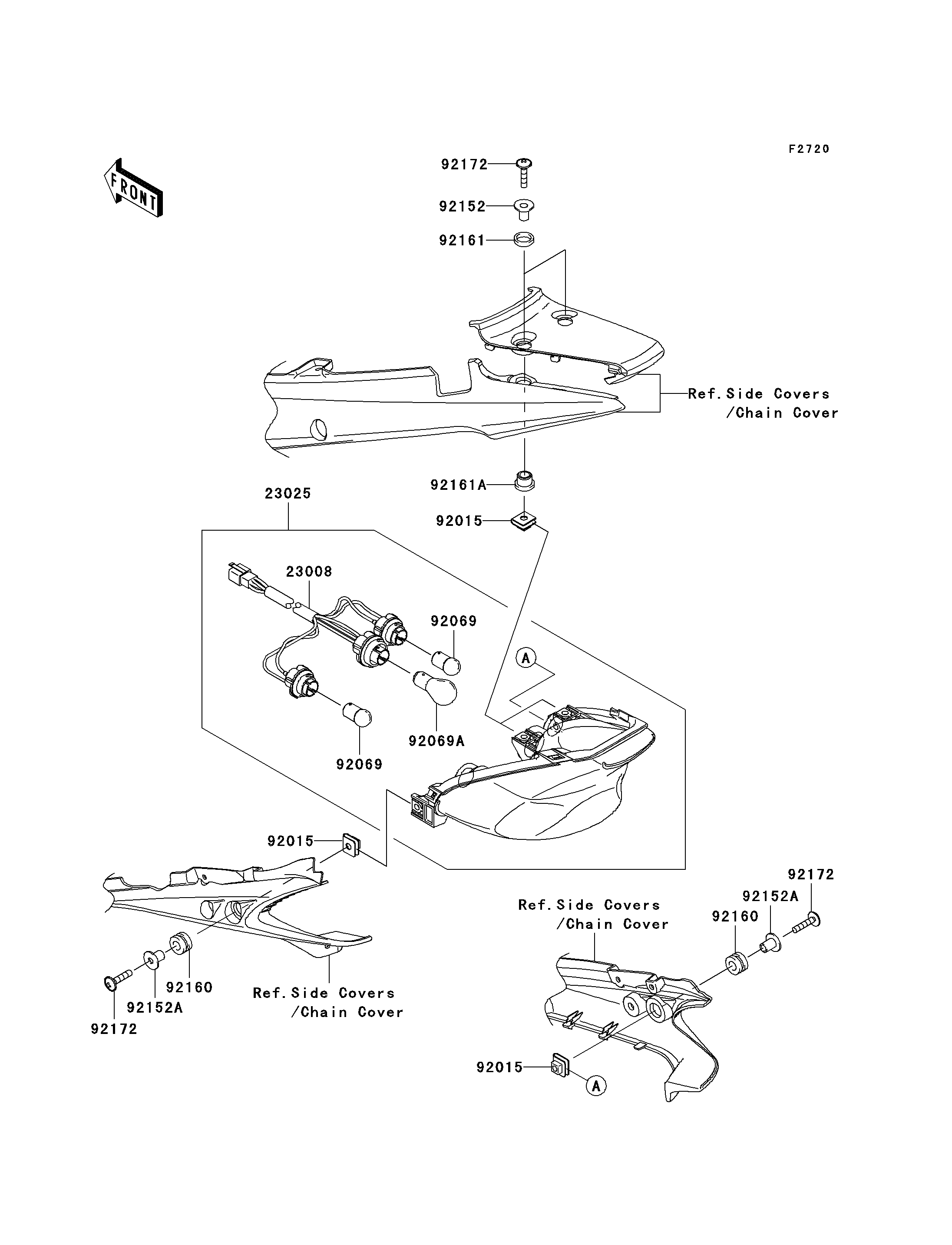

2010 Fury 125R - Taillight(s)

DOWNLOAD PDF
SELECT A NEW PART
23008
23025
92015
92015
92015
92069
92069
92069A
92152
92152A
92152A
92160
92160
92161
92161A
92172
92172
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SOCKET-ASSY,TAIL LAMP 23008 23008-0107 1
LAMP-TAIL 23025 23025-0057 1
NUT,6MM 92015 92015-1094 4
BULB,12V 10W 92069 92069-0003 2
BULB,12V 21/5W 92069A 92069-063 1
COLLAR 92152 92152-0702 2
COLLAR 92152A 92152-0703 2
DAMPER 92160 92160-1167 2
DAMPER 92161 92161-0520 2
DAMPER 92161A 92161-0521 2
SCREW,6X28 92172 92172-0348 4
