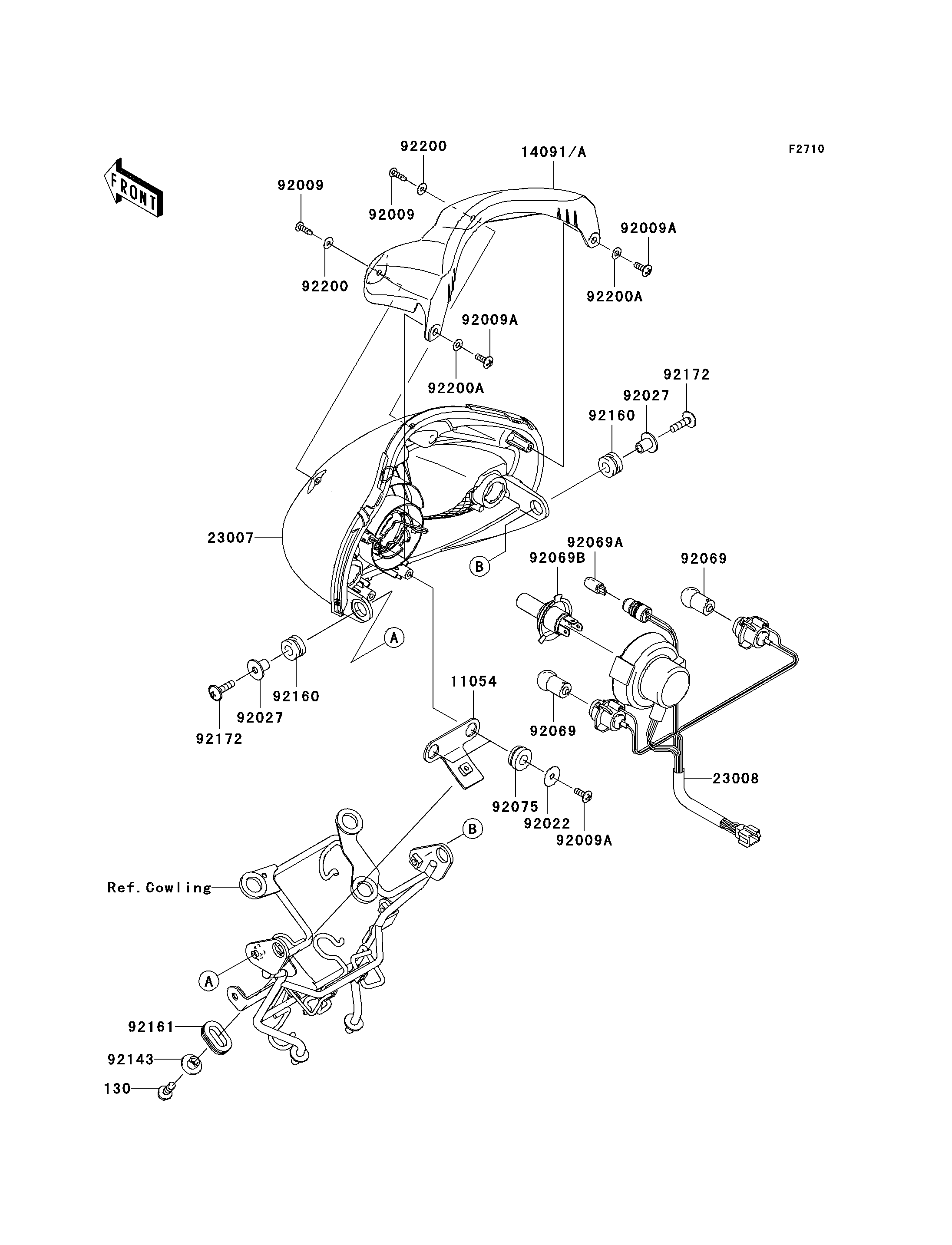

2010 Fury 125R - Headlight(s)

DOWNLOAD PDF
SELECT A NEW PART
130
11054
14091
23007
23008
92009
92009
92009A
92009A
92009A
92022
92027
92027
92069
92069
92069A
92069B
92075
92143
92160
92160
92161
92172
92172
92200
92200
92200A
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X18 130 130BB0618 1
BRACKET,HEAD LAMP 11054 11054-1690 1
COVER,HEAD LAMP,EBONY 14091 14091-1719-QE 1
LENS-COMP,HEAD LAMP 23007 23007-0116 1
SOCKET-ASSY,HEAD LAMP 23008 23008-0106 1
SCREW,4X16,BLACK 92009 92009-1158 2
SCREW,TAPPING,5X14 92009A 92009-1197 4
WASHER,5.5X20X1.2 92022 92022-1405 2
COLLAR,L=14.1 92027 92027-1920 2
BULB,12V 10W 92069 92069-0003 2
BULB,12V 5W 92069A 92069-1016 1
BULB,12V 35/35W 92069B 92069-1120 1
DAMPER 92075 92075-277 2
COLLAR 92143 92143-1833 1
DAMPER 92160 92160-1167 2
DAMPER 92161 92161-0522 1
SCREW,6X22 92172 92172-0373 2
WASHER,4.2X11.5X0.5 92200 92200-0412 2
WASHER,NYLON,5.3X11.5X0.5 92200A 92200-1480 2
