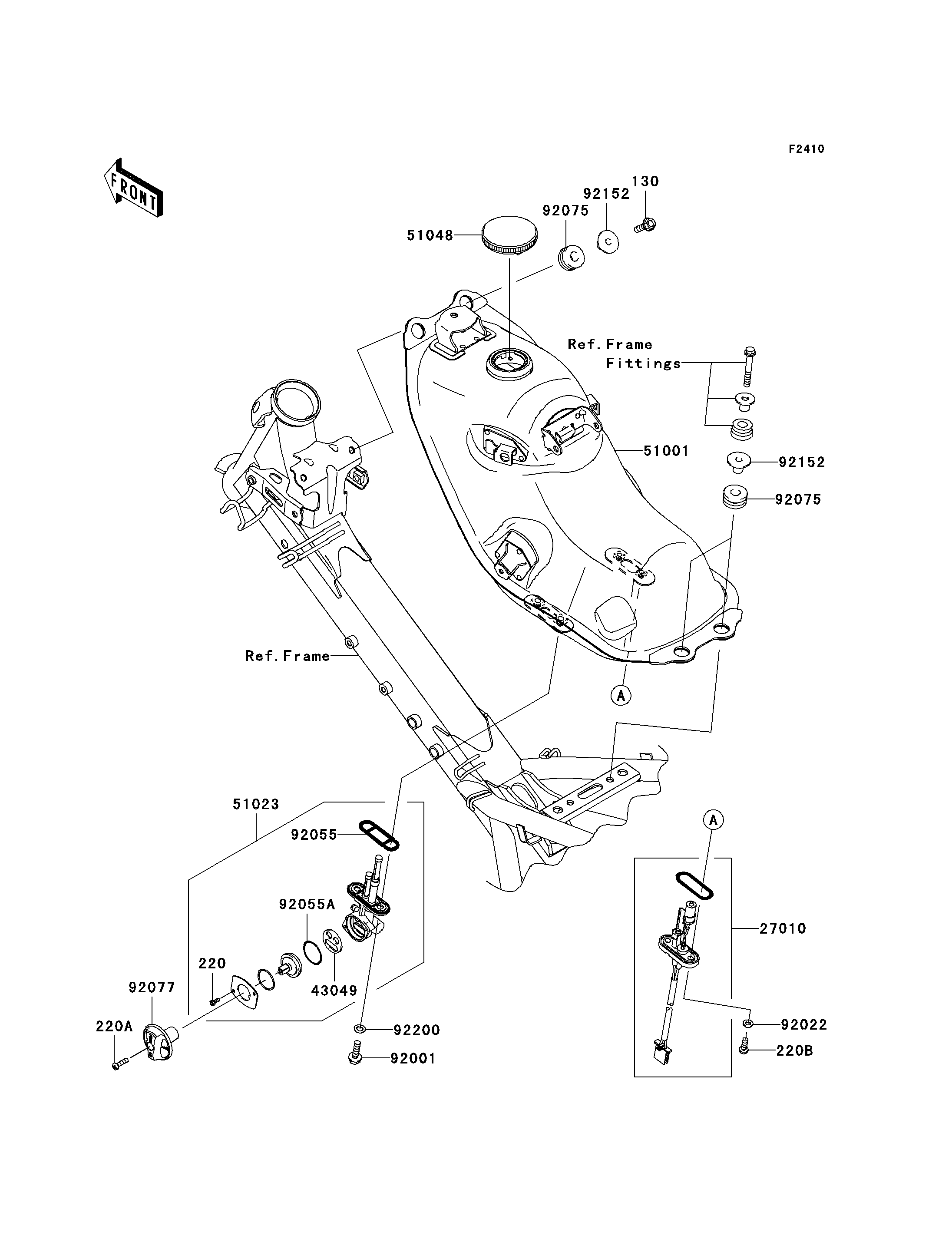

2010 Fury 125R - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
130
220
220A
220B
27010
43049
51001
51023
51048
92001
92022
92055
92055A
92075
92075
92077
92152
92152
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X22 130 130BB0622 2
SCREW-PAN-CROS,3X8 220 220AA0308 2
SCREW-PAN-CROSS,4X16 220A 220AB0416 1
SCREW-PAN-CROS,5X14 220B 220AD0514 2
SWITCH,FUEL LEVEL 27010 27010-0077 1
PACKING,TAP VALVE 43049 43049-1091 1
TANK-COMP-FUEL 51001 51001-0287 1
TAP-ASSY,FUEL 51023 51023-0029 1
CAP-ASSY-TANK 51048 51048-1119 1
BOLT,6X20 92001 92001-1091 2
WASHER,5.2X10X1.5 92022 92022-1023 2
RING-O,FUEL TAP PACKING 92055 92055-1112 1
RING-O,TAP LEVER 92055A 92055-1419 1
DAMPER 92075 92075-1690 4
KNOB,FUEL TAP 92077 92077-0009 1
COLLAR 92152 92152-0697 4
WASHER,6.5X11.5X0.8 92200 92200-0117 2
