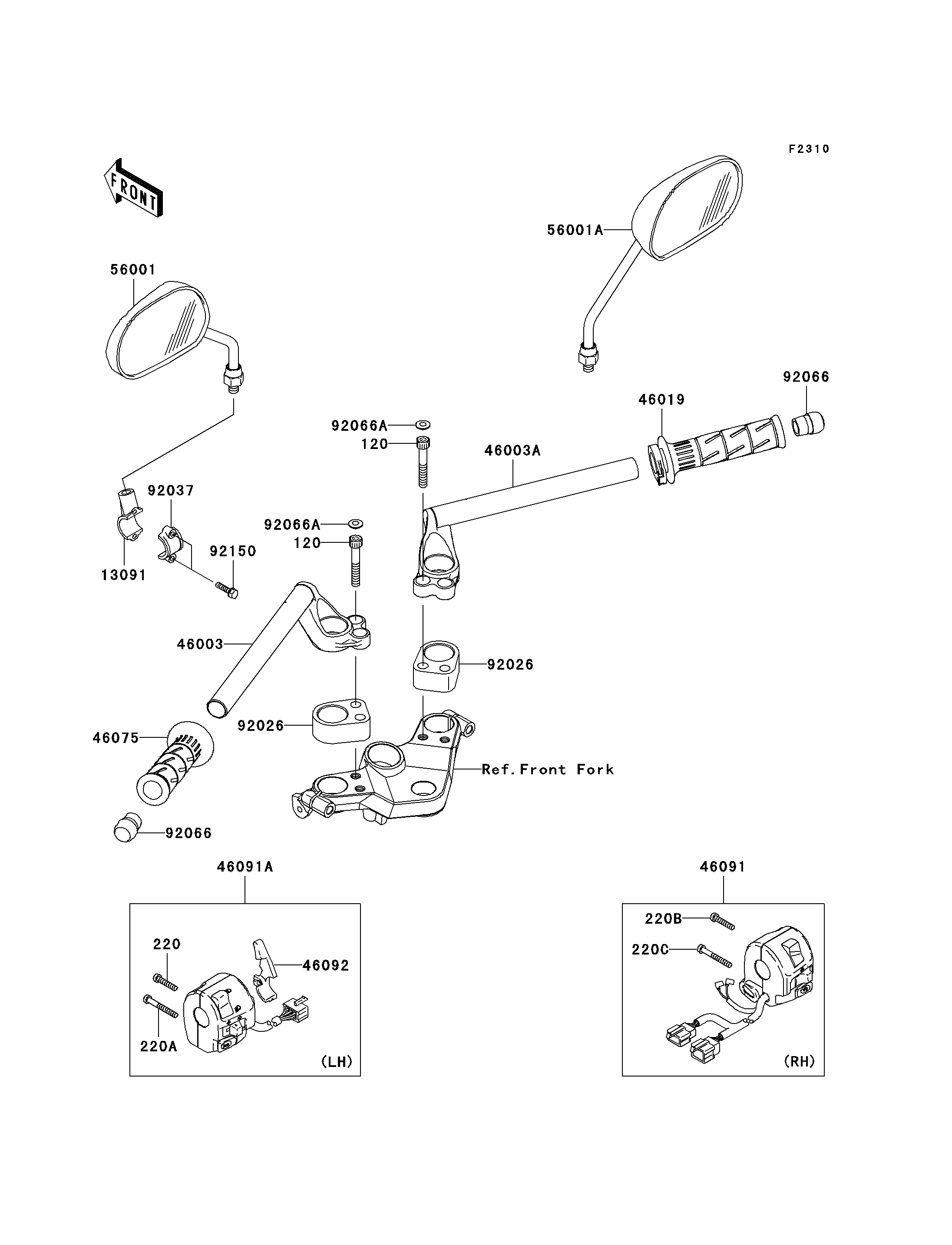

2010 Fury 125R - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
120
120
220
220A
220B
220C
13091
46003
46003A
46019
46075
46091
46091A
46092
56001
56001A
92026
92026
92037
92066
92066
92066A
92066A
92150
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,8X50 120 120CA0850 4
SCREW-PAN-CROSS,5X22 220 220AB0522 1
SCREW-PAN-CROSS,5X40 220A 220AB0540 1
SCREW-PAN-CROS,5X22 220B 220C0522 1
SCREW-PAN-CROS,5X40 220C 220C0540 1
HOLDER,MIRROR 13091 13091-1718 1
HANDLE,LH,F.S.BLACK 46003 46003-0129-18R 1
HANDLE,RH,F.S.BLACK 46003A 46003-0130-18R 1
GRIP-ASSY,THROTTLE 46019 46019-0003 1
GRIP,LH 46075 46075-0007 1
HOUSING-ASSY-CONTROL,RH 46091 46091-0155 1
HOUSING-ASSY-CONTROL,LH 46091A 46091-0198 1
LEVER-GRIP,CHOKE LEVER 46092 46092-0033 1
MIRROR-ASSY,LH 56001 56001-0119 1
MIRROR-ASSY,RH 56001A 56001-0120 1
SPACER,HANDLE,F.BLACK 92026 92026-0122-21 2
CLAMP,LEVER HOLDER 92037 92037-1621 1
PLUG 92066 92066-0122 2
PLUG 92066A 92066-1216 4
BOLT,5X20 92150 92150-1389 2
