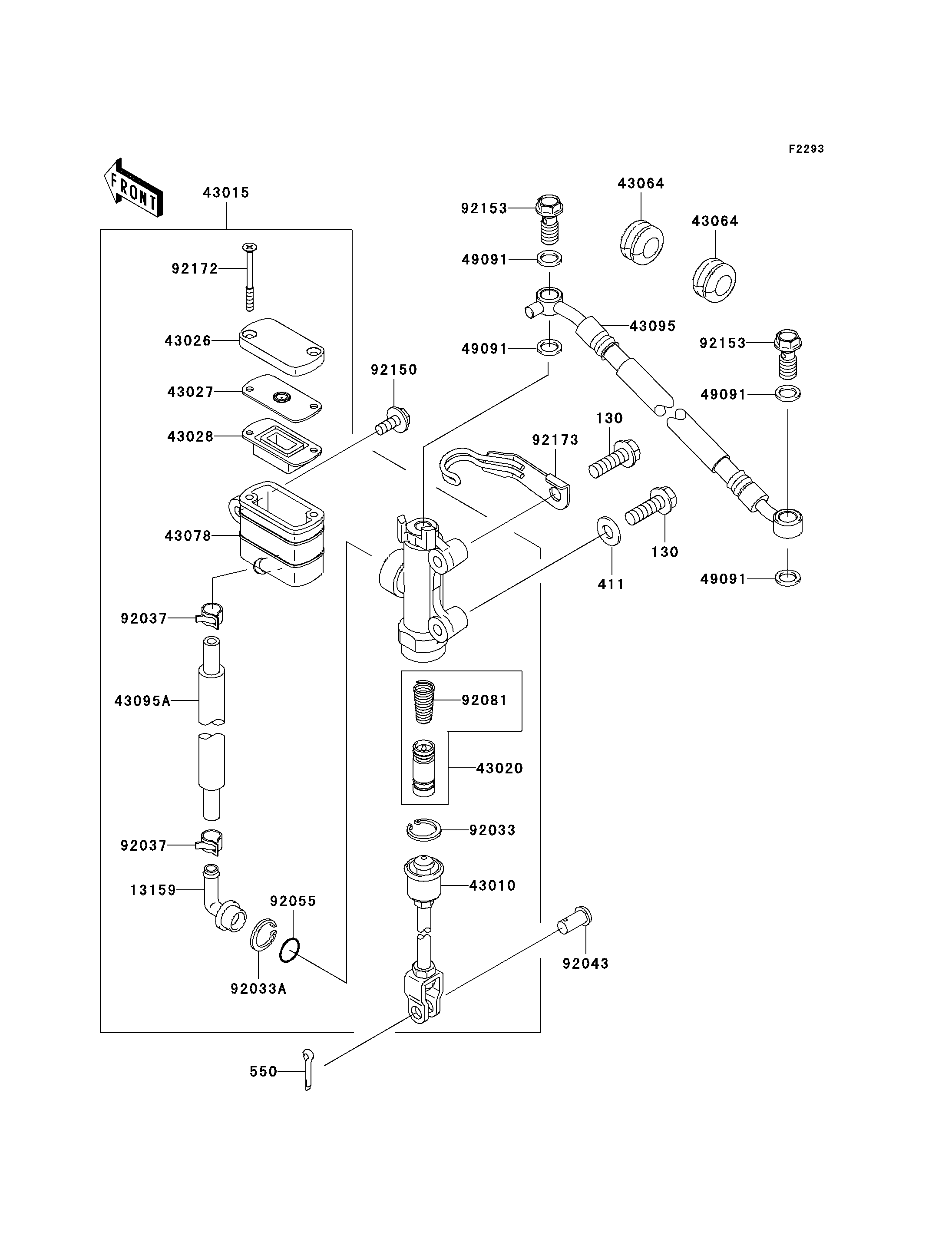

2010 Fury 125R - Rear Master Cylinder(BAF)

DOWNLOAD PDF
SELECT A NEW PART
130
130
411
550
13159
43010
43015
43020
43026
43027
43028
43064
43064
43078
43095
43095A
49091
49091
49091
49091
92033
92033A
92037
92037
92043
92055
92081
92150
92153
92153
92172
92173
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X25 130 130BB0825 2
WASHER-PLAIN,8.5X18X1.6 411 411AB0800 1
PIN-COTTER,2.0X15 550 550AA2015 1
CONNECTOR 13159 13159-1056 1
ROD-ASSY-BRAKE 43010 43010-0008 1
CYLINDER-ASSY-MASTER,RR 43015 43015-0104 1
PISTON-COMP-BRAKE 43020 43020-1057 1
CAP-BRAKE 43026 43026-0014 1
PLATE-DIAPHRAGM 43027 43027-0006 1
DIAPHRAGM 43028 43028-0009 1
GROMMET,HOSE CLAMP 43064 43064-006 2
RESERVOIR 43078 43078-0056 1
HOSE-BRAKE,RR 43095 43095-0341 1
HOSE-BRAKE,RR MASTER CYLINDER 43095A 43095-0457 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 4
RING-SNAP,20.9X24.6X1.2 92033 92033-0079 1
RING-SNAP,20.5MM 92033A 92033-1186 1
CLAMP 92037 92037-1710 2
PIN,8X17 92043 92043-0104 1
RING-O,MASTER CYLINDER 92055 92055-1251 1
SPRING,MASTER CYLINDER 92081 92081-1737 1
BOLT,6X16 92150 92150-1198 1
BOLT,OIL,L=23 92153 92153-0627 2
SCREW 92172 92172-0383 2
CLAMP,BRAKE HOSE 92173 92173-0020 1
