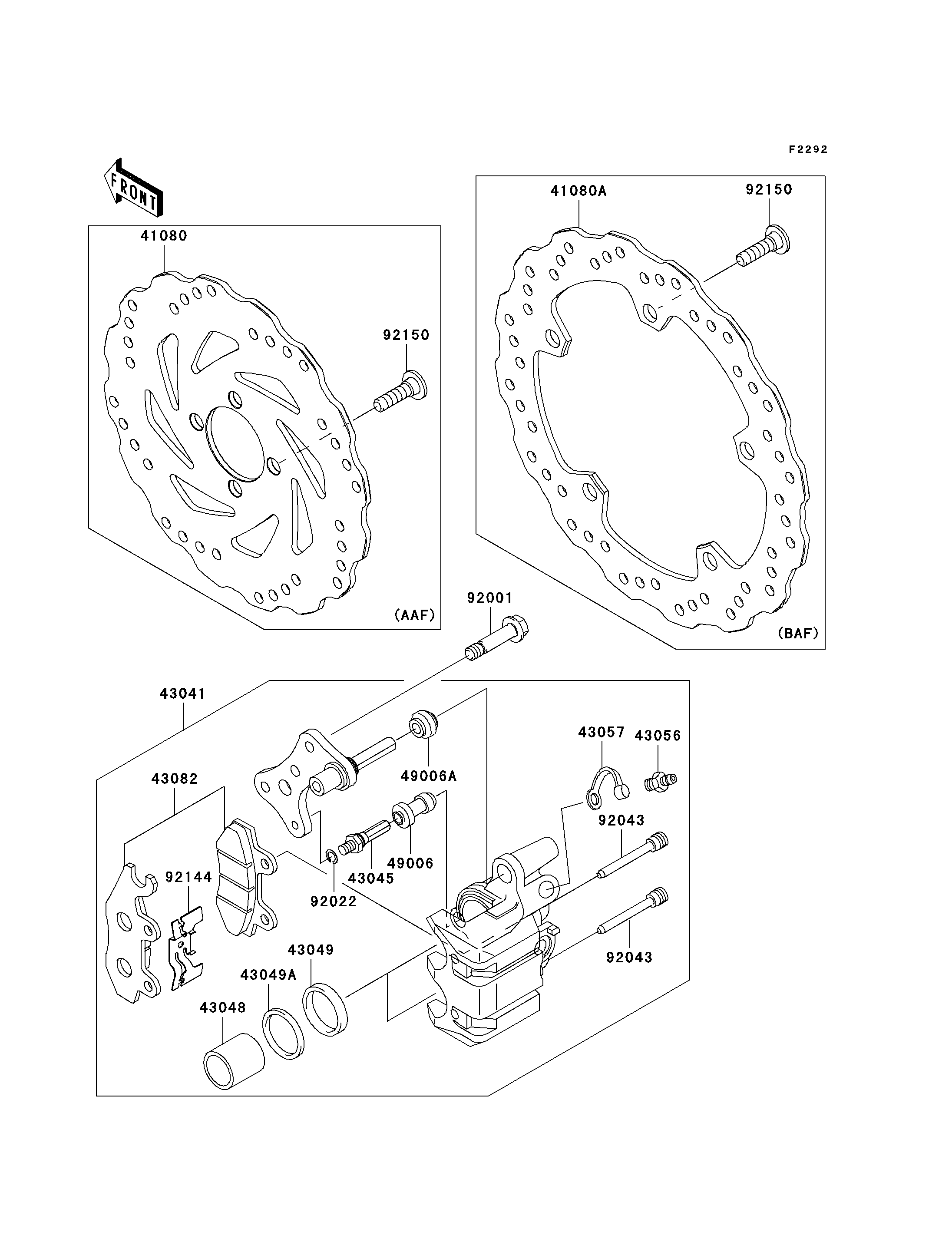

Parts Diagrams |
41080A
43041
43045
43048
43049
43049A
43056
43057
43082
49006
49006A
92001
92022
92043
92043
92144
92150
92150
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| DISC,FR | 41080A | 41080-0123 | 1 | ||
| CALIPER-ASSY,FR,GOLD | 43041 | 43041-0173-8Q | 1 | ||
| SHAFT-CALIPER | 43045 | 43045-1010 | 1 | ||
| PISTON-CALIPER | 43048 | 43048-1066 | 2 | ||
| PACKING | 43049 | 43049-1063 | 2 | ||
| PACKING | 43049A | 43049-1064 | 2 | ||
| BREATHER-BRAKE | 43056 | 43056-1056 | 1 | ||
| CAP-BREATHER | 43057 | 43057-1001 | 1 | ||
| PAD-ASSY-BRAKE | 43082 | 43082-0085 | 1 | ||
| BOOT,CALIPER | 49006 | 49006-1088 | 1 | ||
| BOOT,CALIPER | 49006A | 49006-1242 | 1 | ||
| BOLT,FLANGED,8X36 | 92001 | 92001-1837 | 2 | ||
| WASHER,WAVE | 92022 | 92022-1373 | 1 | ||
| PIN,HANGER | 92043 | 92043-1416 | 2 | ||
| SPRING,PAD | 92144 | 92144-1847 | 1 | ||
| BOLT,SOCKET,8X30 | 92150 | 92150-1771 | 5 |
| DISC,FR | |
| REF # | 41080A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CALIPER-ASSY,FR,GOLD | |
| REF # | 43041 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT-CALIPER | |
| REF # | 43045 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PISTON-CALIPER | |
| REF # | 43048 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PACKING | |
| REF # | 43049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PACKING | |
| REF # | 43049A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BREATHER-BRAKE | |
| REF # | 43056 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP-BREATHER | |
| REF # | 43057 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD-ASSY-BRAKE | |
| REF # | 43082 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOOT,CALIPER | |
| REF # | 49006 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOOT,CALIPER | |
| REF # | 49006A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,8X36 | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,WAVE | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN,HANGER | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SPRING,PAD | |
| REF # | 92144 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,8X30 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
