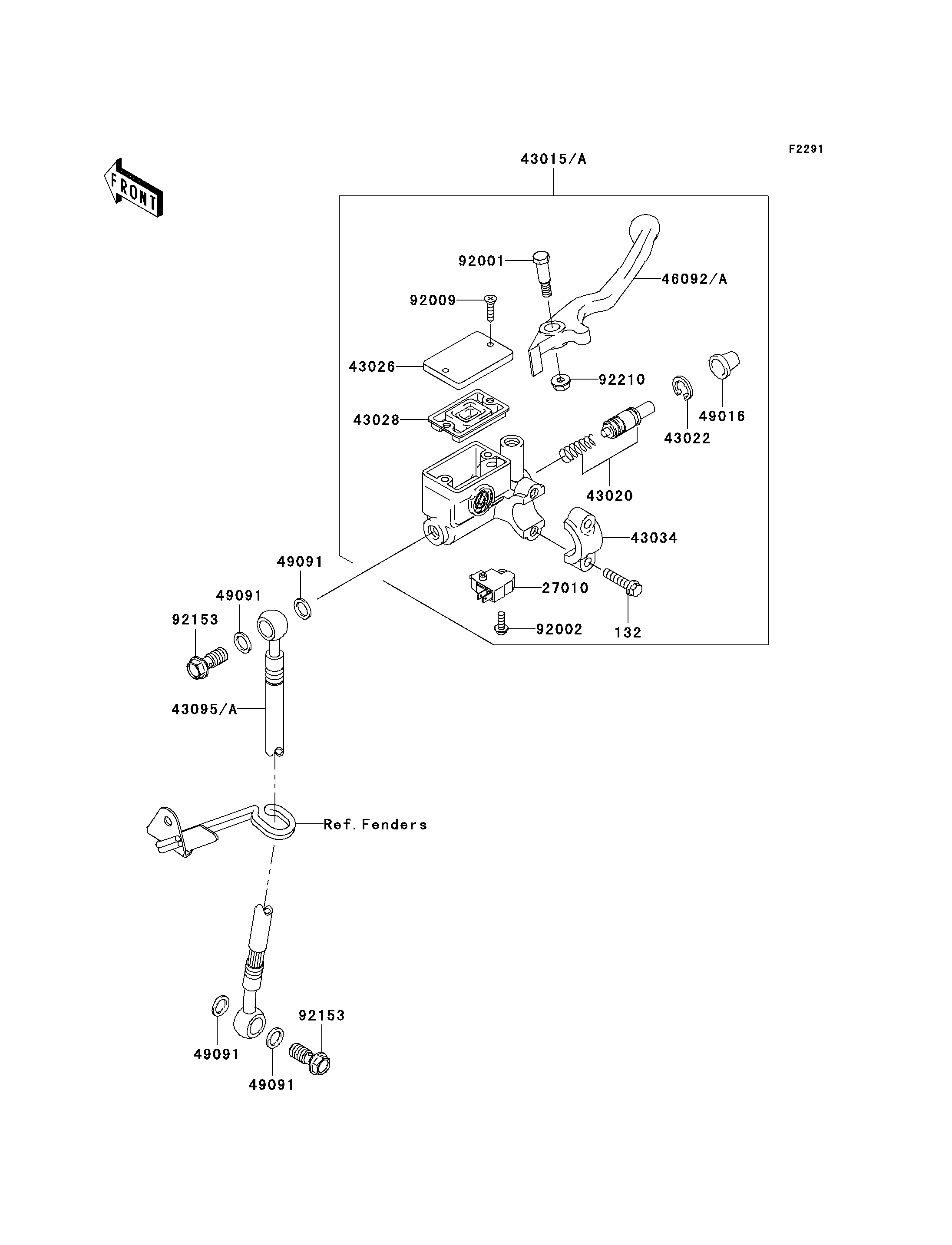

2010 Fury 125R - Front Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
132
27010
43015
43020
43022
43026
43028
43034
43095A
46092A
49016
49091
49091
49091
49091
92001
92002
92009
92153
92153
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X25 132 132BB0625 2
SWITCH,BRAKE 27010 27010-0025 1
CYLINDER-ASSY-MASTER,FR 43015 43015-0121 1
PISTON-COMP-BRAKE 43020 43020-1095 1
STOPPER-BRAKE,PISTON 43022 43022-1010 1
CAP-BRAKE 43026 43026-1074 1
DIAPHRAGM 43028 43028-1061 1
HOLDER-BRAKE,MASTER CYLINDER 43034 43034-1016 1
HOSE-BRAKE,FR 43095A 43095-0486 1
LEVER-GRIP,FRONT BRAKE 46092A 46092-1192 1
COVER-SEAL,MASTER CYLINDER 49016 49016-1044 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 4
BOLT,FRONT BRAKE LEVER 92001 92001-1728 1
BOLT,SCREW,4X12 92002 92002-1323 1
SCREW,4MM 92009 92009-1458 2
BOLT,OIL,L=23 92153 92153-0627 2
NUT,LOCK,6MM 92210 92210-0006 1
