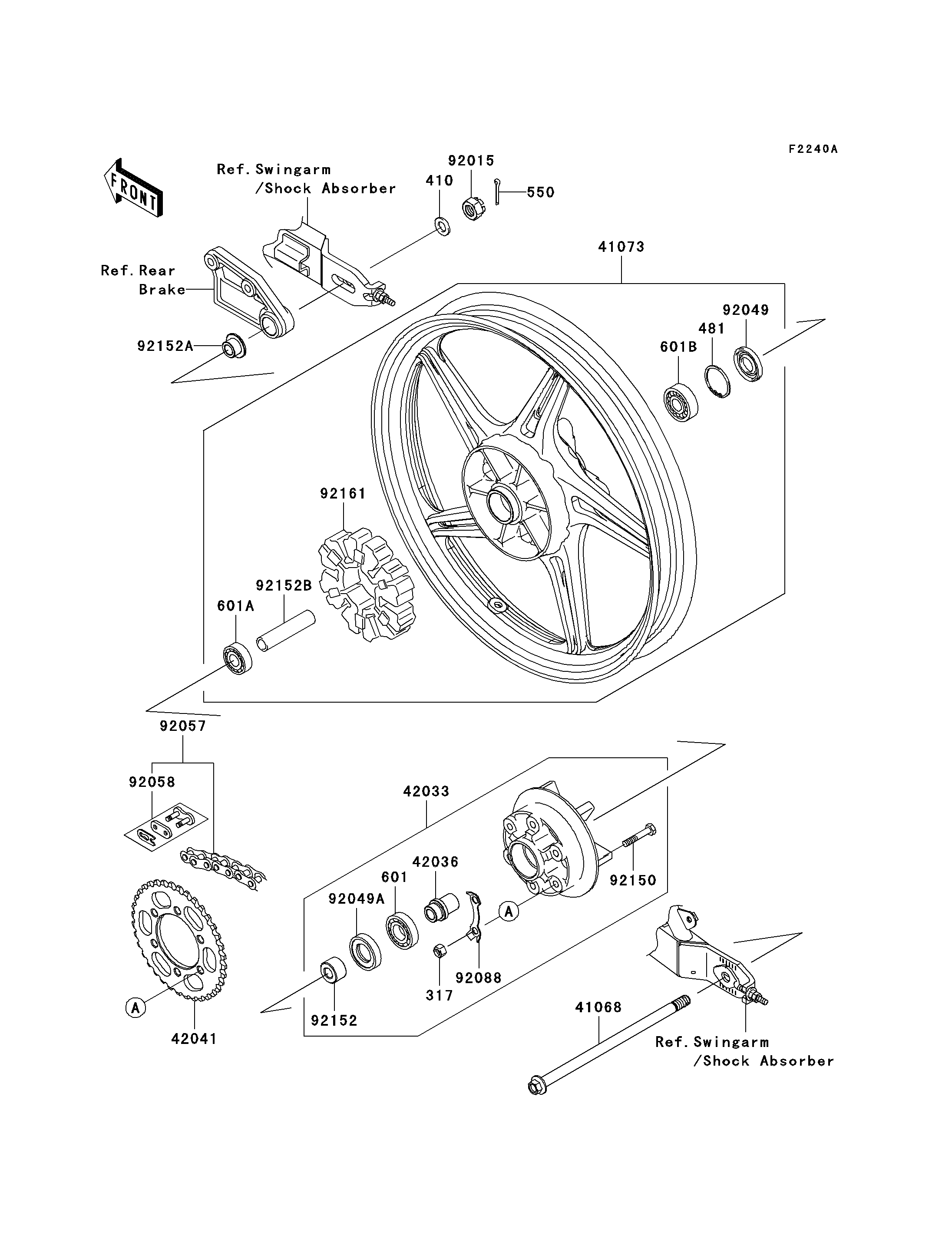

2010 Fury 125R - Rear Hub(BAF)

DOWNLOAD PDF
SELECT A NEW PART
317
410
481
550
601
601A
601B
41068
41073
42033
42036
42041
92015
92049
92049A
92057
92058
92088
92150
92152
92152A
92152B
92161
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
NUT-HEX-SMALL,8MM 317 317BA0800 6
WASHER-PLAIN-SMALL,12MM 410 410AA1200 1
CIRCLIP-TYPE-C,37MM 481 481J3700 1
PIN-COTTER,3.0X25 550 550AA3025 1
BEARING-BALL,#6004UG 601 601B6004UG 1
BEARING-BALL,#6201UG 601A 601B6201UG 1
BEARING-BALL,#6301UG 601B 601B6301UG 1
AXLE,FR 41068 41068-0079 1
WHEEL-ASSY,RR,F.S.BLACK 41073 41073-0116-8F 1
COUPLING-ASSY,RR HUB 42033 42033-0027 1
SLEEVE,RR HUB COUPLING,L=37 42036 42036-0065 1
SPROCKET-HUB,36T 42041 42041-0069 1
NUT,CASTLE,12MM 92015 92015-1870 1
SEAL-OIL,DD20377 92049 92049-1096 1
SEAL-OIL,SC26X42X8 92049A 92049-1490 1
CHAIN,DRIVE,RK420SBX104L 92057 92057-0162 1
JOINT-CHAIN,DRIVE 92058 92058-0020 1
WASHER,SPROCKET LOCK 92088 92088-019 3
BOLT,8X41 92150 92150-1348 6
COLLAR,RR AXLE,LH,L=17 92152 92152-0452 1
COLLAR,RR AXLE,L=13.6 92152A 92152-0731 1
COLLAR,RR HUB,L=77 92152B 92152-0732 1
DAMPER,REAR HUB SHOCK 92161 92161-1327 1
