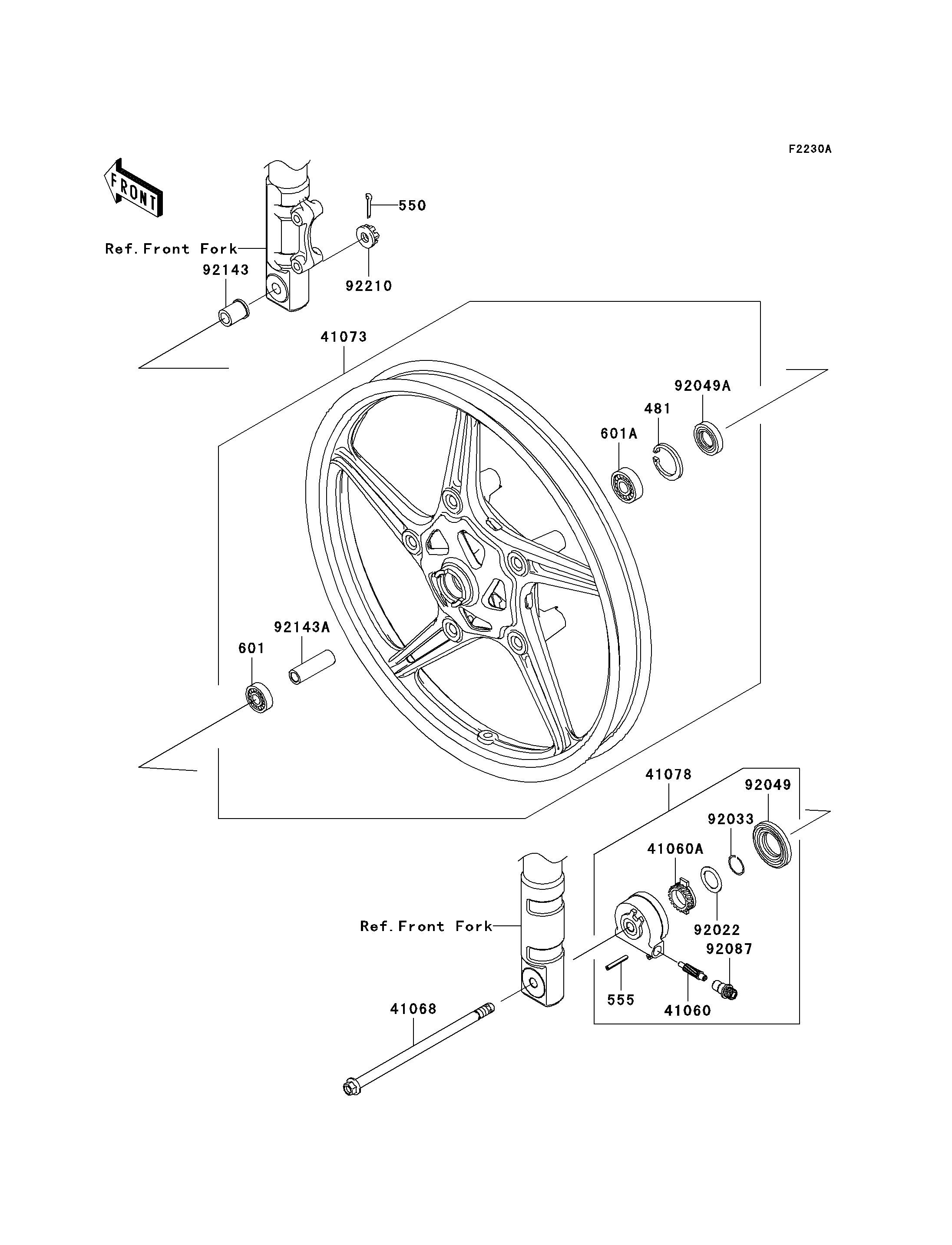

2010 Fury 125R - Front Hub(BAF)

DOWNLOAD PDF
SELECT A NEW PART
481
550
555
601
601A
41060
41060A
41068
41073
41078
92022
92033
92049
92049A
92087
92143
92143A
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CIRCLIP-TYPE-C,35MM 481 481J3500 1
PIN-COTTER,2.5X20 550 550AA2520 1
PIN-SPRING 555 555A0214 1
BEARING-BALL,#6200UG 601 601B6200UG 1
BEARING-BALL 601A 601B6300UG 1
GEAR-METER SCREW,10T 41060 41060-0001 1
GEAR-METER SCREW,25T 41060A 41060-0002 1
AXLE,FR 41068 41068-1445 1
WHEEL-ASSY,FR,F.S.BLACK 41073 41073-0117-8F 1
CASE-ASSY-METER GEAR 41078 41078-0001 1
WASHER,20X29X1.0 92022 92022-1510 1
RING-SNAP,19MM 92033 92033-1160 1
SEAL-OIL,SD 42X50X6 92049 92049-0042 1
SEAL-OIL,DD20X35X7 92049A 92049-0052 1
BUSHING-METER GEAR 92087 92087-0002 1
COLLAR,FR AXLE,L=24.5 92143 92143-1847 1
COLLAR,FR HUB,L=51 92143A 92143-1992 1
NUT,CASTLE,10MM 92210 92210-1383 1
