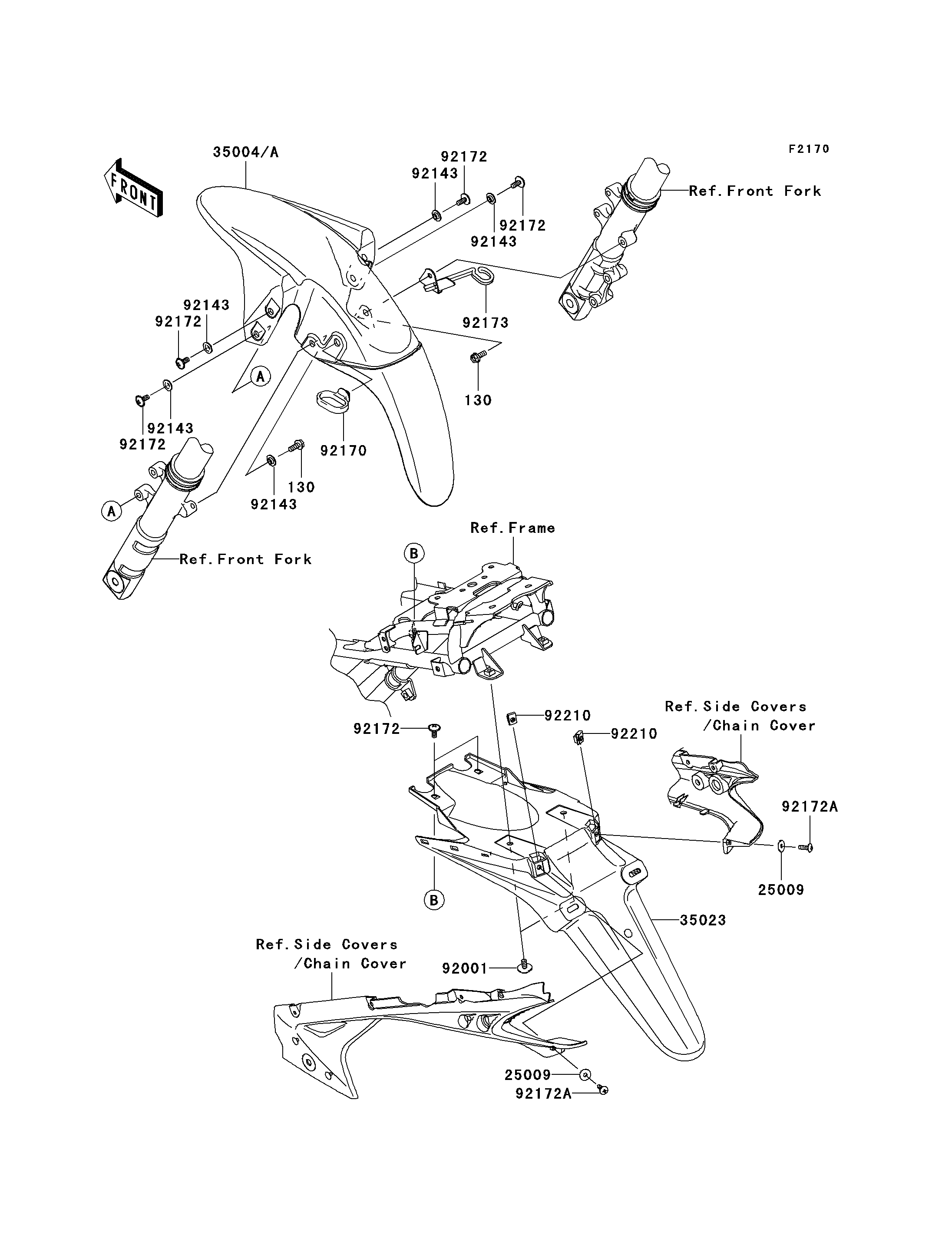

Parts Diagrams |
130
130
25009
25009
35004
35023
92001
92143
92143
92143
92143
92143
92170
92172
92172
92172
92172
92172
92172A
92172A
92173
92210
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,6X16 | 130 | 130BB0616 | 2 | ||
| WASHER,5.2X16X1.2 | 25009 | 25009-004 | 2 | ||
| FENDER-FRONT,EBONY/BLACK | 35004 | 35004-0122-EI | 1 | ||
| FENDER-REAR | 35023 | 35023-0112 | 1 | ||
| BOLT,6X14,BLACK | 92001 | 92001-1847 | 2 | ||
| COLLAR | 92143 | 92143-1087 | 5 | ||
| CLAMP,CABLE | 92170 | 92170-1574 | 1 | ||
| SCREW,6X14 | 92172 | 92172-0055 | 6 | ||
| SCREW,5X16 | 92172A | 92172-0462 | 2 | ||
| CLAMP,BRAKE HOSE | 92173 | 92173-0004 | 1 | ||
| NUT,PLATE,5MM | 92210 | 92210-0262 | 2 |
| BOLT-FLANGED,6X16 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,5.2X16X1.2 | |
| REF # | 25009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| FENDER-FRONT,EBONY/BLACK | |
| REF # | 35004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FENDER-REAR | |
| REF # | 35023 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X14,BLACK | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92143 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| CLAMP,CABLE | |
| REF # | 92170 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X14 | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| SCREW,5X16 | |
| REF # | 92172A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP,BRAKE HOSE | |
| REF # | 92173 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,PLATE,5MM | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
