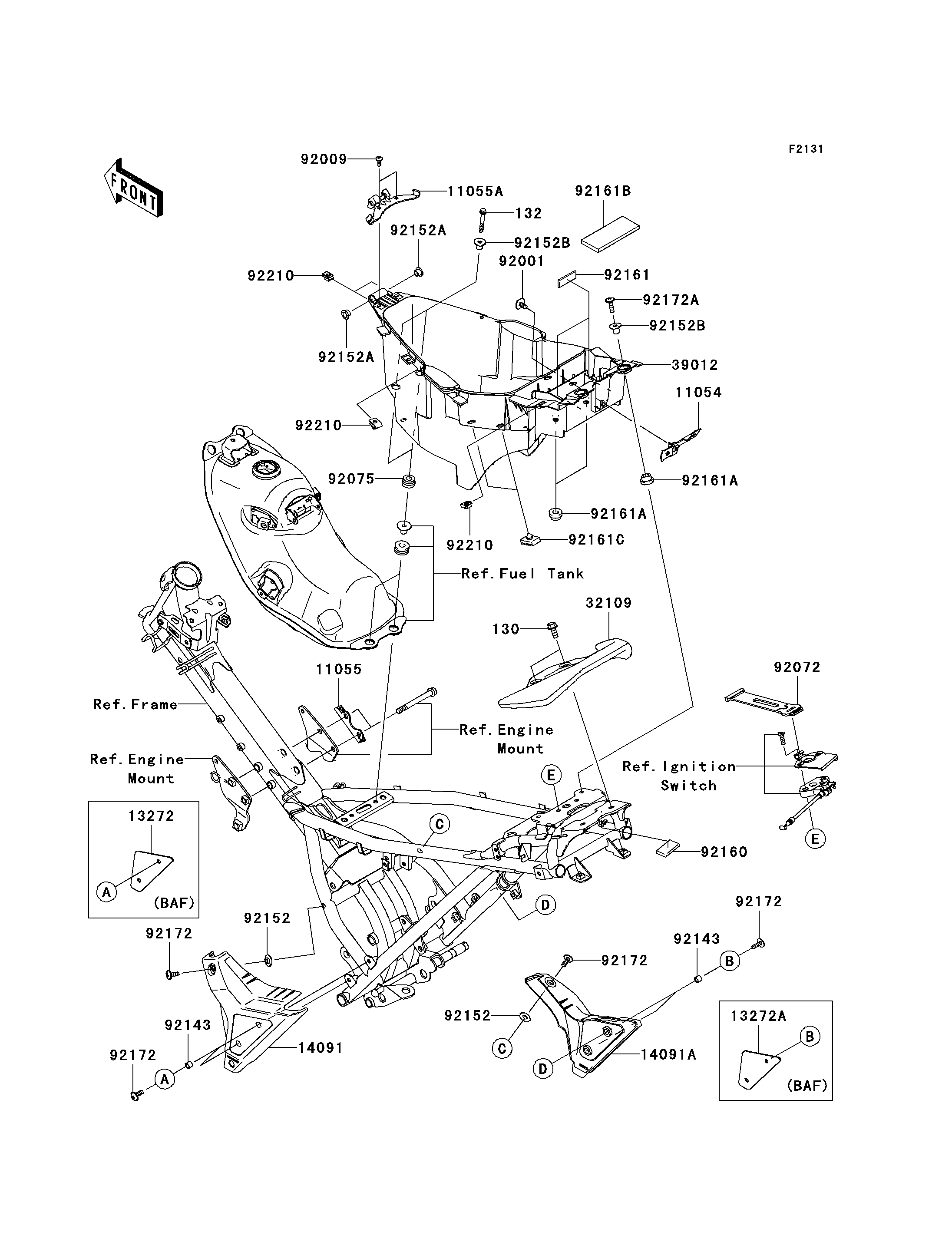

2010 Fury 125R - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
130
132
11054
11055
11055A
13272
13272A
14091
14091A
32109
39012
92001
92009
92072
92075
92143
92143
92152
92152
92152A
92152A
92152B
92152B
92160
92161
92161A
92161A
92161B
92161C
92172
92172
92172
92172
92172A
92210
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X18 130 130BA0818 2
BOLT-FLANGED-SMALL,6X40 132 132BB0640 2
BRACKET,ELECTRIC DEVICE 11054 11054-1681 1
BRACKET,IGNITION COIL 11055 11055-0506 1
BRACKET,HELMET HOOK 11055A 11055-1371 1
PLATE,PIVOT COVER,LH 13272 13272-0164 1
PLATE,PIVOT COVER,RH 13272A 13272-0216 1
COVER,PIVOT,LH 14091 14091-0769 1
COVER,PIVOT,RH 14091A 14091-0770 1
GRIP-FRAME,P.SILVER 32109 32109-0025-458 1
CASE-STORAGE 39012 39012-0016 1
BOLT,6X14,BLACK 92001 92001-1847 1
SCREW,5X14,WHITE 92009 92009-1366 2
BAND,BATTERY 92072 92072-0110 1
DAMPER,RUBBER 92075 92075-1123 2
COLLAR,6.8X10X7.5 92143 92143-1939 4
COLLAR 92152 92152-0140 2
COLLAR,8.2X10.6X6.9 92152A 92152-0306 2
COLLAR 92152B 92152-0332 4
DAMPER 92160 92160-1559 1
DAMPER 92161 92161-0301 2
DAMPER 92161A 92161-0501 4
DAMPER,BATTERY 92161B 92161-0686 1
DAMPER 92161C 92161-1282 4
SCREW,6X18 92172 92172-0192 6
SCREW,6X22 92172A 92172-0373 2
NUT,PLATE,5MM 92210 92210-0262 6
