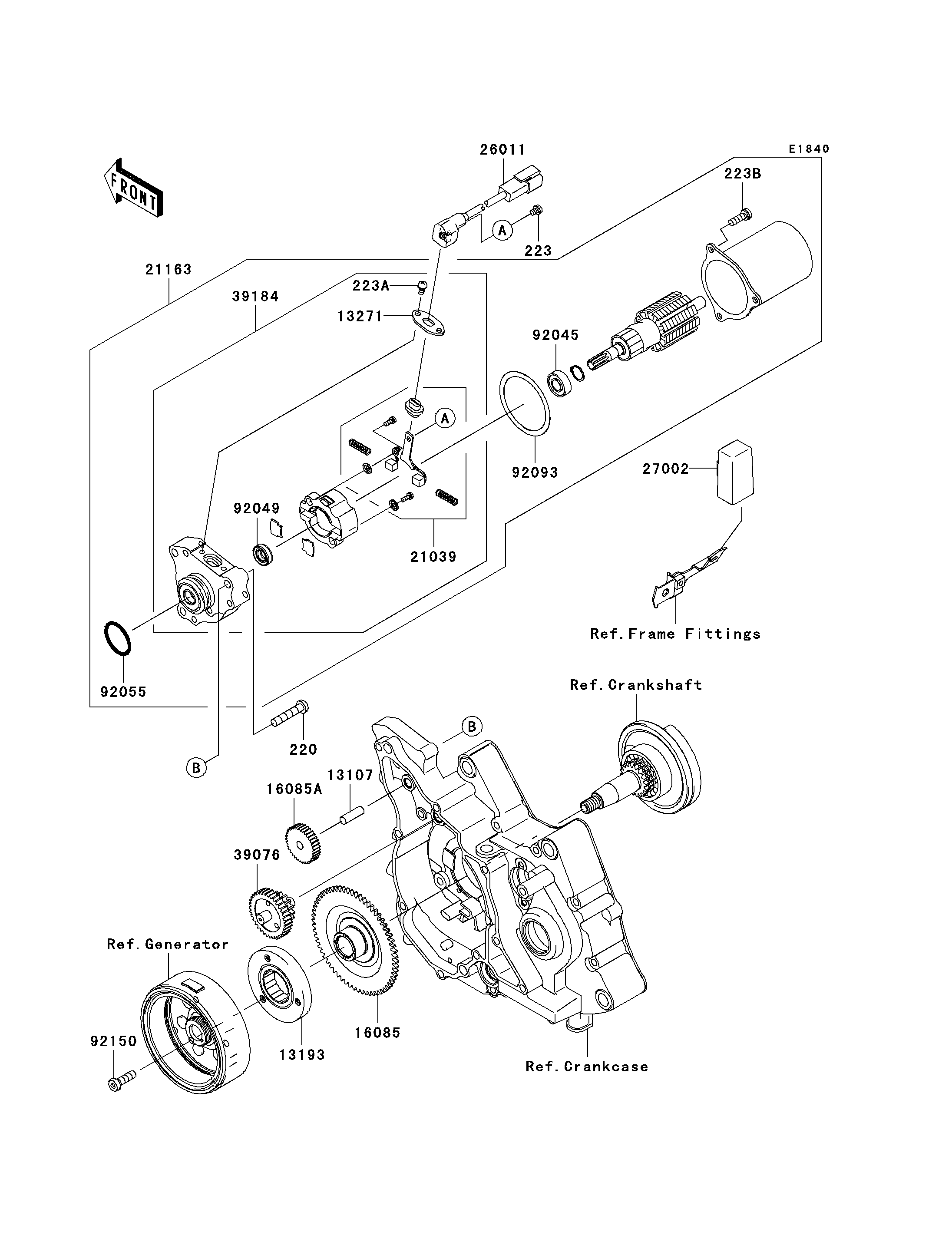

2010 Fury 125R - Starter Motor

DOWNLOAD PDF
SELECT A NEW PART
220
223
223A
223B
13107
13193
13271
16085
16085A
21039
21163
26011
27002
39076
39184
92045
92049
92055
92093
92150
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-CROS,6X30 220 220AD0630 3
SCREW-PAN-WS-CROS,4X6 223 223AA0406 1
SCREW-PAN-WS-CROS,4X8 223A 223AA0408 2
SCREW-PAN-WS-CROS,5X16 223B 223AA0516 3
SHAFT,8X25 13107 13107-1142 1
CLUTCH-ASSY-ONEWAY 13193 13193-0003 1
PLATE 13271 13271-0674 1
GEAR 16085 16085-0096 1
GEAR,IDLE,45T 16085A 16085-1264 1
BRUSH,STARTER MOTOR(SET) 21039 21039-1067 1
STARTER-ELECTRIC 21163 21163-0049 1
WIRE-LEAD 26011 26011-1819 1
RELAY-ASSY 27002 27002-1118 1
LIMITER 39076 39076-1078 1
BRACKET-ASSY 39184 39184-0014 1
BEARING-BALL,STARTER MOTOR 92045 92045-1349 1
SEAL-OIL,STARTER MOTOR 92049 92049-1465 1
RING-O 92055 92055-1276 1
SEAL,STARTER MOTOR 92093 92093-1079 1
BOLT,6X20 92150 92150-1907 3
