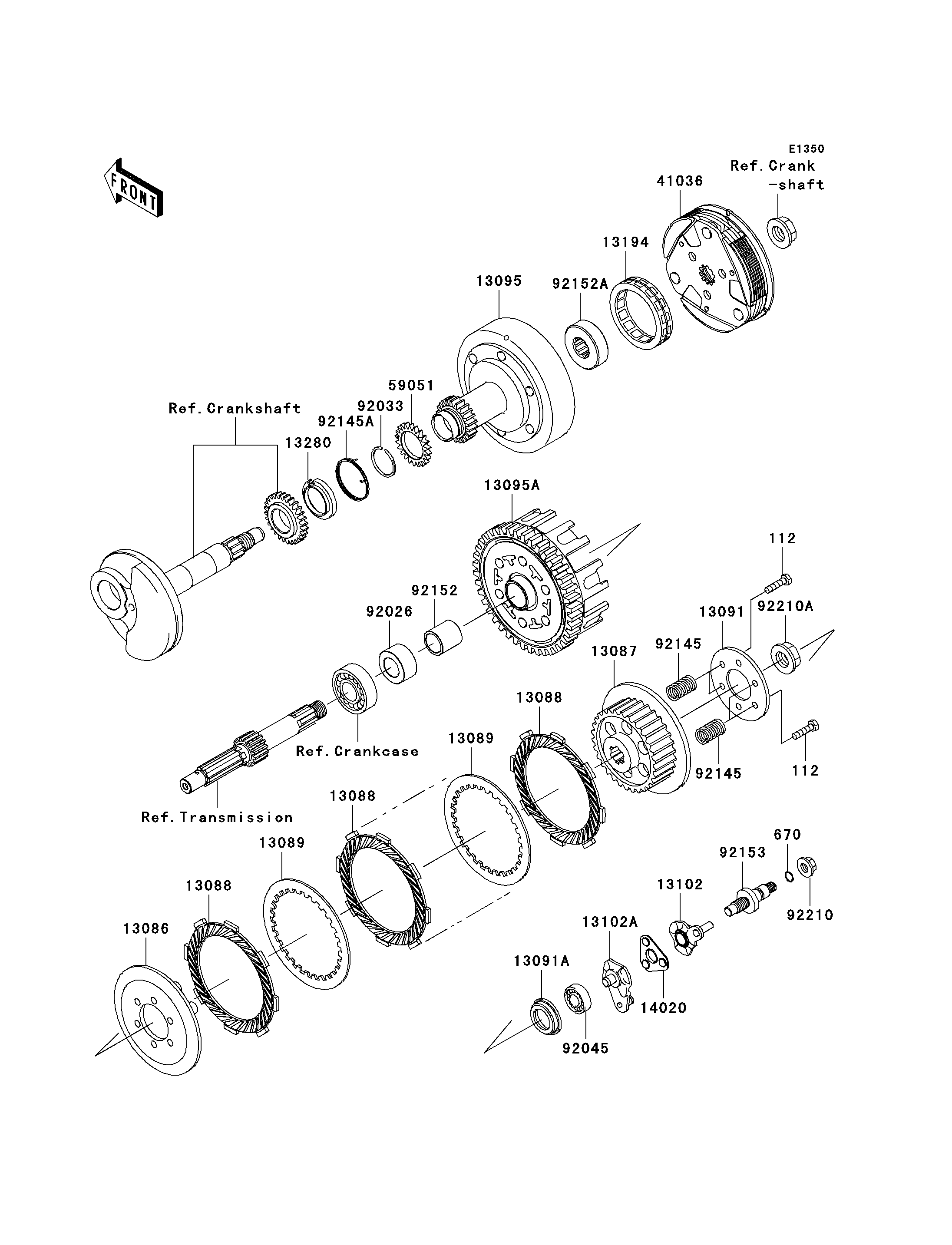

2010 Fury 125R - Clutch

DOWNLOAD PDF
SELECT A NEW PART
112
112
670
13086
13087
13088
13088
13088
13089
13089
13091
13091A
13095
13095A
13102
13102A
13194
13280
14020
41036
59051
92026
92033
92045
92145
92145
92145A
92152
92152A
92153
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET,5X20 112 112BA0520 4
O RING,8MM 670 670B1508 1
WHEEL-CLUTCH 13086 13086-1065 1
HUB-CLUTCH 13087 13087-1151 1
PLATE-FRICTION 13088 13088-1142 5
PLATE-CLUTCH 13089 13089-1087 4
HOLDER,CLUTCH 13091 13091-1782 1
HOLDER 13091A 13091-1787 1
HOUSING-COMP-CLUTCH 13095 13095-0094 1
HOUSING-COMP-CLUTCH 13095A 13095-1403 1
RELEASE-COMP-CLUTCH 13102 13102-1135 1
RELEASE-COMP-CLUTCH 13102A 13102-1136 1
CLUTCH-ONEWAY 13194 13194-1103 1
HOLDER,CLUTCH 13280 13280-1250 1
RETAINER 14020 14020-1100 1
HUB-ASSY,CLUTCH 41036 41036-1364 1
GEAR-SPUR,CLUTCH,22T 59051 59051-1403 1
SPACER 92026 92026-1605 1
RING-SNAP,23.5MM 92033 92033-1065 1
BEARING-BALL,#628 92045 92045-1123 1
SPRING,CLUTCH HUB 92145 92145-1456 4
SPRING,CLUTCH HOLDER 92145A 92145-1457 1
COLLAR,17X22X22.7 92152 92152-0393 1
COLLAR,19X39.9X13 92152A 92152-1370 1
BOLT,CLUTCH RELEASE 92153 92153-0525 1
NUT,FLANGED,8MM 92210 92210-0004 1
NUT,14MM 92210A 92210-1374 1
